Overview

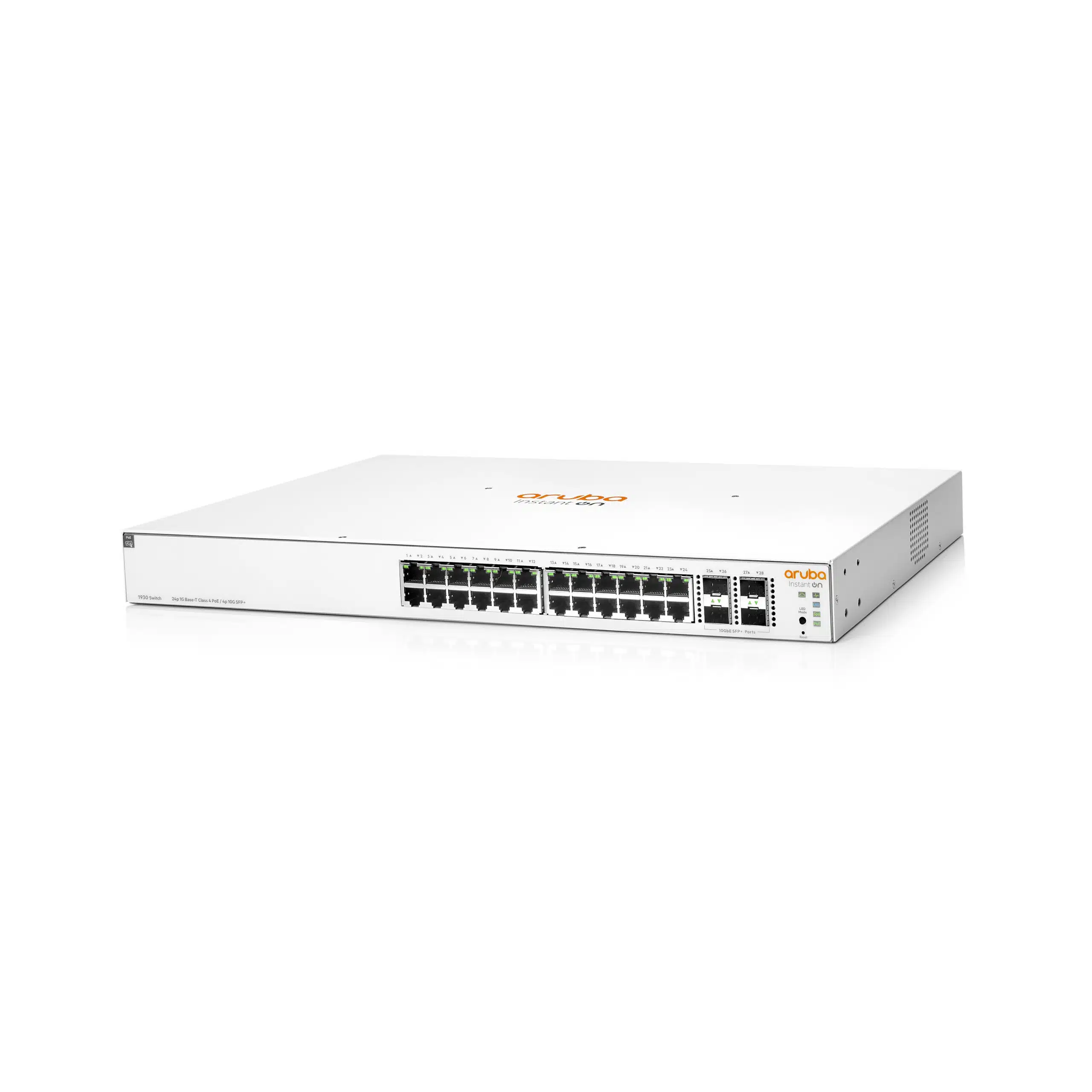

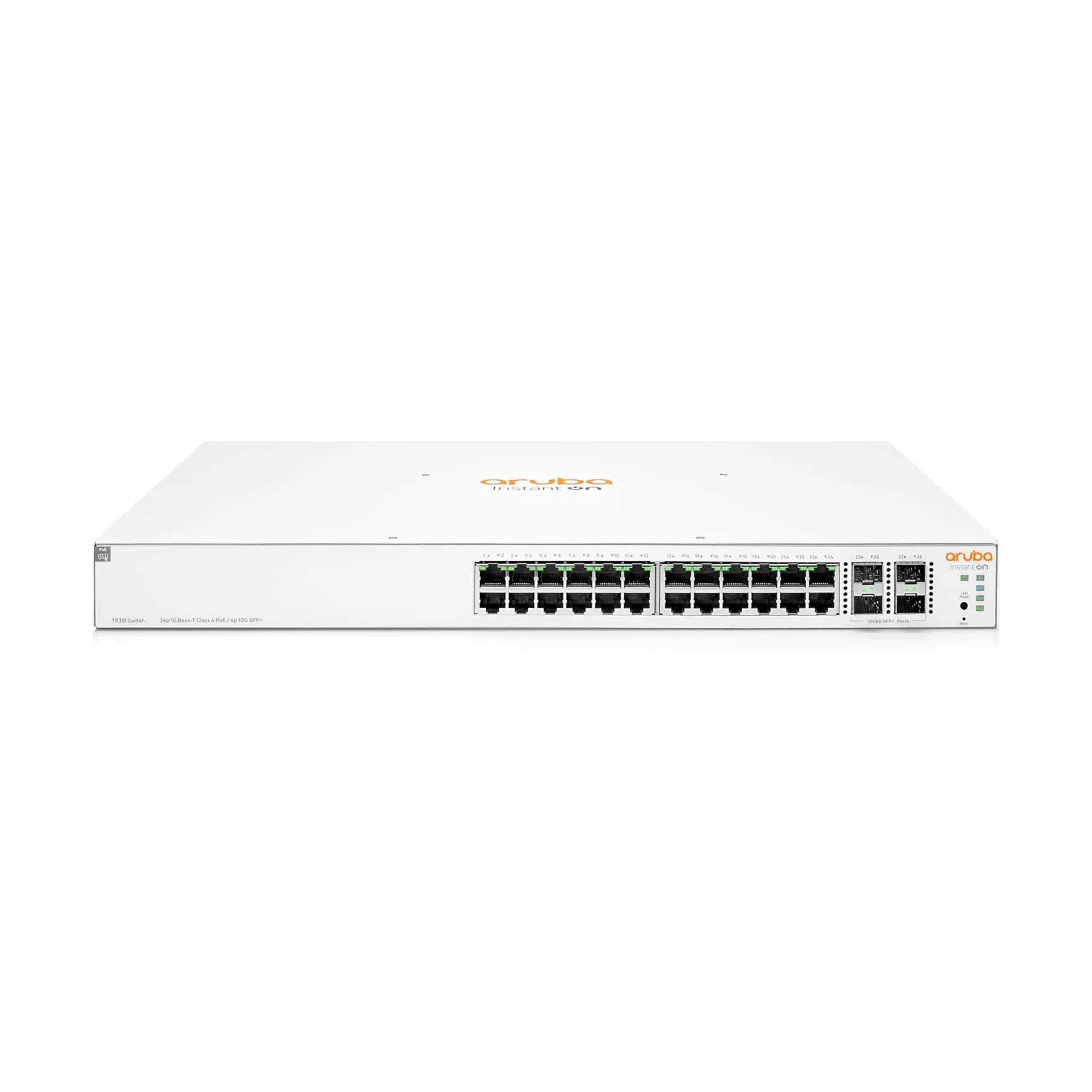

The HPE Networking Instant On 1960 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W Switch (JL807A) is a smart-managed, stackable Gigabit access switch combining PoE and dual 10-Gigabit uplinks. With a 370W PoE budget split across Class 4 and Class 6 ports, it can power a wide mix of access points, cameras, and video-enabled IP phones, and belongs to the Instant On 1960 Series for growing businesses.
Key Features
- 24 RJ-45 autosensing 10/100/1000BASE-T ports: 4 with Class 6 PoE and 20 with Class 4 PoE, plus 2x 10GBASE-T and 2x SFP+ 10GbE uplinks
- 370W total PoE budget (IEEE 802.3af/at/bt) supporting both Class 4 and Class 6 powered devices
- Stacking capability for scalable network growth
- Layer 2+ features and cloud, mobile app, or local web GUI management
- No recurring subscription or licensing fees – included industry-leading limited lifetime warranty
Technical Specifications
| Specification | Details |
|---|---|
| Model | HPE Networking Instant On Switch 20p Gigabit CL4 4p Gigabit CL6 PoE 2p 10GBT 2p SFP+ 370W 1960 (JL807A) |
| Ports | 24x RJ-45 10/100/1000BASE-T (4x Class 6 PoE + 20x Class 4 PoE); 2x SFP+ 10GbE; 2x RJ-45 autosensing 100/1000/10GBASE-T |
| PoE | 370W total, 4x Class 6 PoE ports + 20x Class 4 PoE ports (IEEE 802.3af/at/bt) |
| Maximum standalone switching capacity | 128 Gbps |
| Maximum stacking capacity | 80 Gbps |
| Throughput | 95 Mpps |
| Latency | 100 Mb: <4.4 µs; 1000 Mb: <2.2 µs; 10G: <1.1 µs |
| MAC address table | 16,000 entries |
| Processor / memory | Single-core ARMv7 Cortex-A9 @ 800 MHz; 1 GB DDR3; 512 MB NAND flash; packet buffer 1.5 MB |
| Dimensions (D x W x H) | 13.79 x 17.42 x 1.73 in (35.05 x 44.25 x 4.395 cm) |
| Weight | 10.4 lb (4.7 kg) |
| Reliability (MTBF) | 65.3 years |
| Operating environment | 0-40°C, up to 10,000 ft |
| Management | Instant On Cloud; web browser; SNMP manager |
| Warranty | Instant On limited lifetime warranty and support |
Product Details
- Part of the HPE Networking Instant On Switch Series 1960 – a smart-managed, stackable family comprising 24- and 48-port access switches (with PoE and non-PoE variants), a 12-port multi-gig PoE switch, and a 16-port 10-Gigabit aggregation switch.
