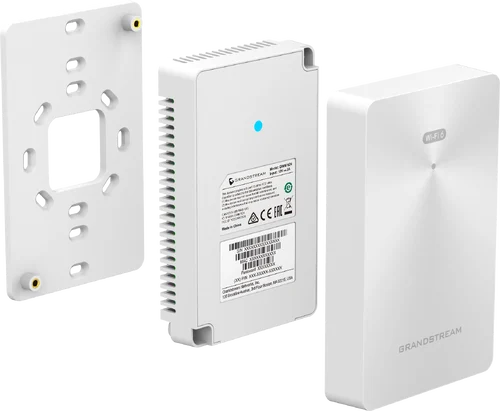

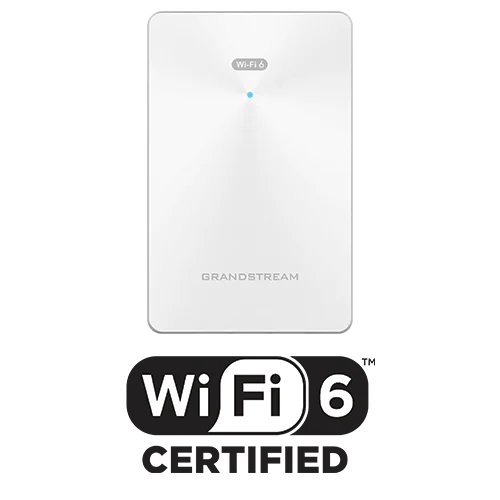

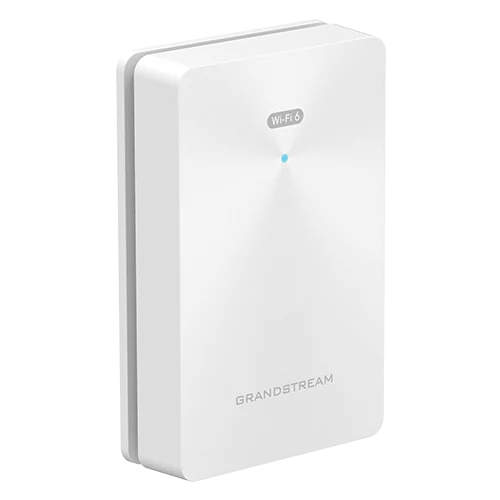

GWN7661e

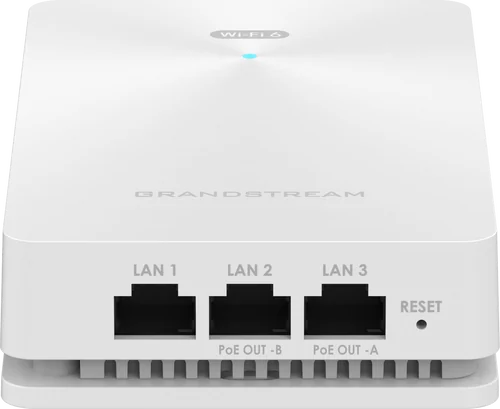

The GWN7661 is an in-wall 802.11ax Wi-Fi 6 access point that provides three Gigabit network ports to provide IP phones, computers and similar devices with Ethernet while also providing and uplink Gigabit
network port with PoE/PoE+.
- 1.77 Gbps wireless throughput and 4x Gigabit wireline ports
- Dual-band 2×2:2 MU-MIMO with DL/UL OFDMA technology
- Supports up to 500+ concurrent Wi-Fi client devices
- Self power adaptation upon auto detection of PoE or PoE+
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
GWN7661e
GWN7661e
Additional information
| Antenna Configuration | Integrated Directional |
|---|---|
| Management Platform | Embedded Controller, GDMS Networking (Cloud), GWN Manager |
| Max Data Rate | 2402 Mbps (5 GHz), 573 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 (2.4 GHz), 3×3 (5 GHz) |

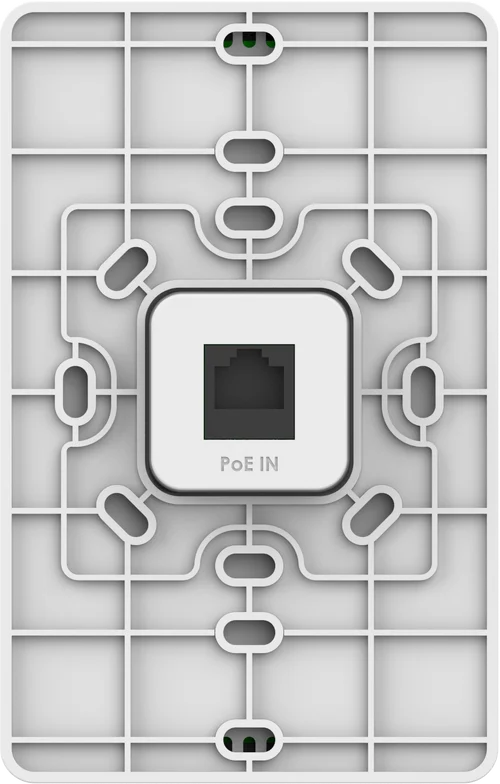

| Mounting Options | wall mount |
| No of Users (recommended) | +150 Users |
| POE | Support POE |
| Ports | 4 Ports |
| Ports Speed | 1G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 6 |
| Wireless Bands | Dual Bands |
