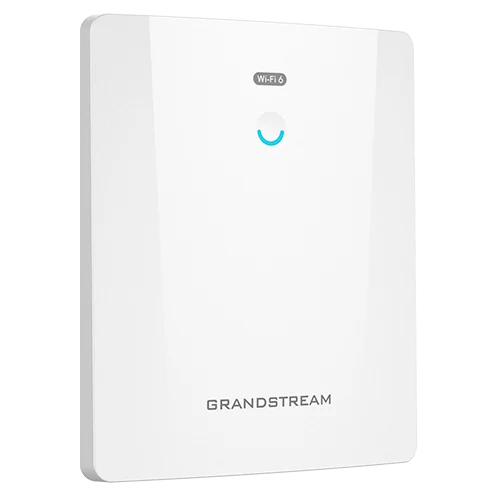

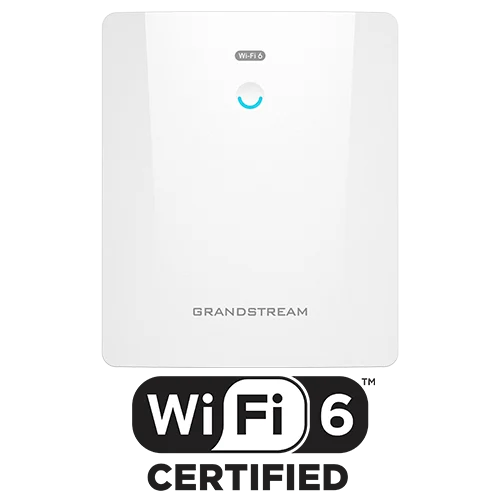

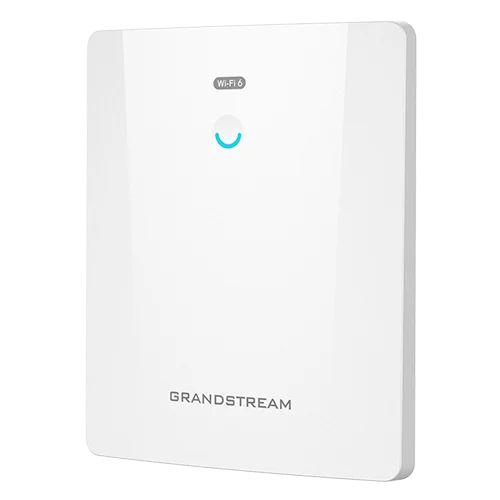

Grandstream GWN7664ELR
The GWN7664ELR is an enterprise-grade long-range 802.11ax Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in outdoor spaces.
SPECIFICATION:

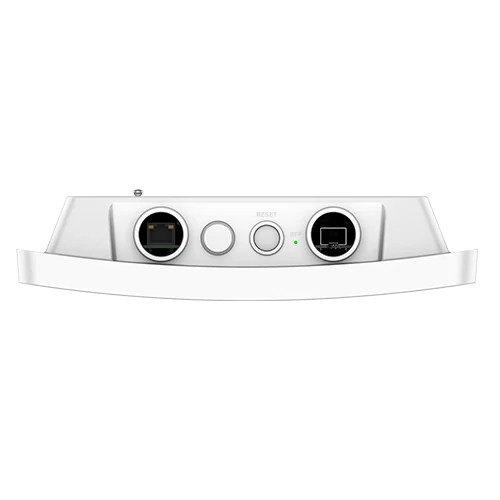

- 6 Gbps aggregate wireless throughput, 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
- Dual-band 4×4:4 MU-MIMO with OFDMA technology
- Self-power adaptation upon auto-detection of PoE or PoE+
- Support 512 concurrent Wi-Fi client devices
- Up to 300-meter coverage range
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Flexibility of 8 internal antennas
- Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management
Additional information
| Antenna Configuration | Integrated Omni-Directional |
|---|---|
| Management Platform | Embedded Controller, GDMS Networking (Cloud), GWN Manager |
| Max Data Rate | 1148 Mbps (2.4 GHz), 4804 Mbps (5 GHz) |
| MIMO Capabilities | 4×4 |

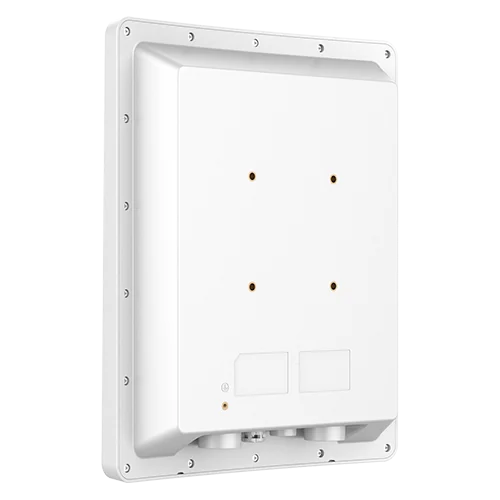

| Mounting Options | Pole mount (outdoor), wall mount |
| No of Users (recommended) | +150 Users |
| POE | Support POE |
| Ports | 2 Ports |
| Ports Speed | 2.5G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 6 |
| Wireless Bands | Dual Bands |
