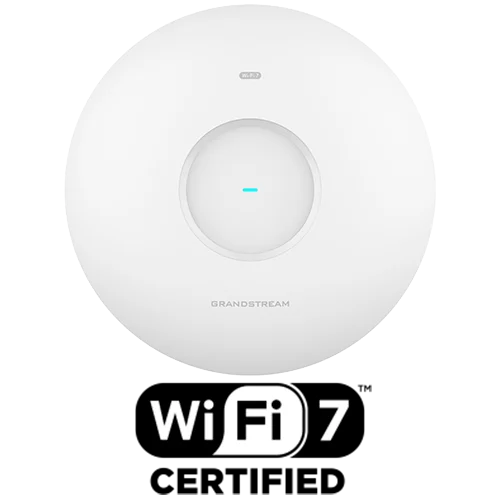

The Grandstream GWN7674
is a high-performance enterprise-grade Tri-Band Wi-Fi 7 access point designed for medium to large businesses, educational institutions, hospitality, healthcare, and high-density enterprise environments. Supporting the latest IEEE 802.11be (Wi-Fi 7) standard, it delivers an aggregate wireless throughput of up to 21 Gbps (BE21000) across the 2.4 GHz, 5 GHz, and 6 GHz bands.
Built with 2×2:2 MU-MIMO on 2.4 GHz and 4×4:4 MU-MIMO on both 5 GHz and 6 GHz, the GWN7674 utilizes advanced Wi-Fi 7 technologies including Multi-Link Operation (MLO), 4096-QAM, Multi-RU, Preamble Puncturing, and Enhanced OFDMA to maximize throughput, reduce latency, and improve wireless efficiency in demanding environments.
The access point features twelve internal high-gain antennas and an independent scanning radio that continuously monitors RF conditions and client signal quality for improved roaming and wireless optimization. With a wireless coverage range of up to 175 meters, it provides reliable connectivity for high-density deployments while supporting seamless enterprise networking.

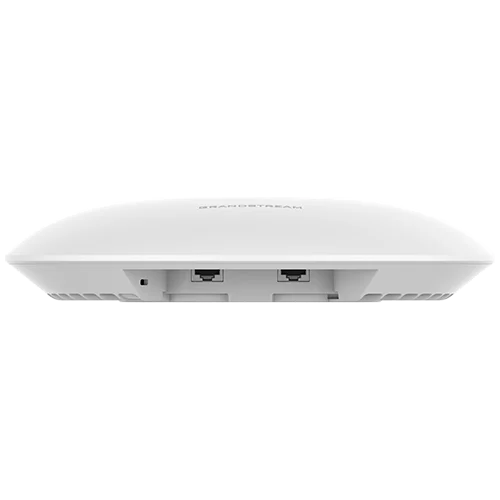

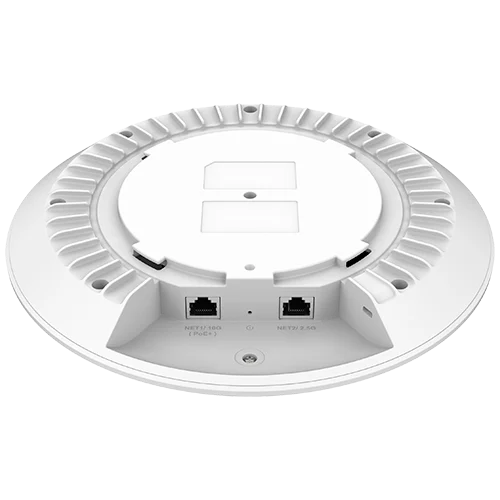

For wired connectivity, the GWN7674 includes one 10 Gigabit Ethernet RJ45 port and one 2.5 Gigabit Ethernet RJ45 port, both supporting IEEE 802.3bt PoE++, eliminating the need for external power adapters. It also supports Bluetooth 5.3, centralized cloud and on-premise management through GWN.Cloud, GWN Manager, or the embedded controller, making deployment and management simple and scalable.
Ideal for organizations preparing for next-generation wireless infrastructure, the Grandstream GWN7674 combines ultra-high-speed Wi-Fi 7 performance, enterprise security, multi-gigabit networking, and flexible centralized management in a future-ready wireless access point.
Specifications Table
| Specification | Details |
|---|---|
| Brand | Grandstream |
| Model | GWN7674 |
| Product Type | Enterprise Tri-Band Wi-Fi 7 Access Point |
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Wireless Speed | Up to 21 Gbps (BE21000) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| MIMO Configuration | 2×2:2 (2.4 GHz), 4×4:4 (5 GHz), 4×4:4 (6 GHz) |
| Advanced Wi-Fi Features | MLO, 4096-QAM, Multi-RU, Preamble Puncturing, OFDMA |
| Coverage Range | Up to 175 m |
| Antennas | 12 Internal High-Gain Antennas |
| Bluetooth | Bluetooth 5.3 |
| Ethernet Ports | 1 × 10G RJ45, 1 × 2.5G RJ45 |
| PoE | IEEE 802.3bt PoE++ |
| Maximum Power Consumption | 36 W |
| LED Indicator | Tri-color Status LED |
| Management | Embedded Controller, GWN.Cloud, GWN Manager |
| Mounting | Ceiling or Wall Mount |
| Dimensions | 250 × 250 × 54.5 mm |
| Weight | 1.13 kg |
Additional information
| Antenna Configuration | Internal High-Gain |
|---|---|
| Management Platform | GDMS Networking (Cloud), GWN Manager |
| Max Data Rate | 11530 Mbps (6G), 688 Mbps (2.4 GHz), 8647 Mbps (5 GHz) |
| MIMO Capabilities | 2×2 (2.4 GHz), 4×4 (5 GHz), 4×4 (6G) |
| Mounting Options | Ceiling Mount, wall mount |
| No of Users (recommended) | +150 Users |
| POE | Support POE |
| Ports | 2 Ports |
| Ports Speed | 10G, 2.5G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 7 |
| Wireless Bands | Triple Bands |
