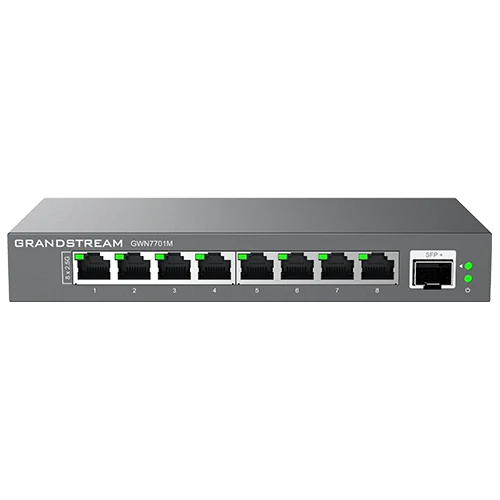

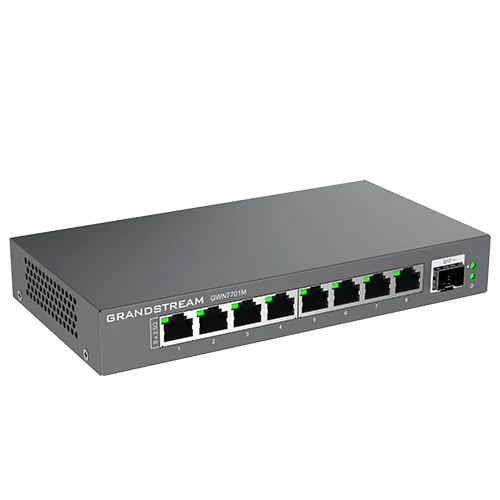

GWN7701M
The GrandStream GWN7701M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
key features :
- 3 Models – GWN7700M, GWN7700MP, and GWN7701M
- 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
- One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
- LED Indicators; Per port: Link/Activity/Speed Per device: Power
- Auto MDI/MDIX crossover for all ports
- Whisper Quiet: fanless
- Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Green technology reduces power consumption
- QoS – Supports Default Strict Priority when present
Specs
| Item | Details |
|---|---|
| Standards & Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3bz (2.5GBASE-T), 802.3x, 802.1p, 802.1x, 802.3ae, 802.3aq |
| Gigabit Ports | 5 |
| PoE Ports | N/A |
| Port Features | 5 × 100/1000/2500 Mbps RJ45 ports1 × SFP+ fiber portAuto NegotiationAuto MDI/MDIX |
| PoE Configuration | N/A |
| Switching Capacity | 45 Gbps |
| Jumbo Frame | 9 KB |
| Enclosure | Metal |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 44.64 Mpps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Switching Capacity | 60 Gbps |
| Uplink Ports | 1 |
| UpLinks Speed | 10G |
