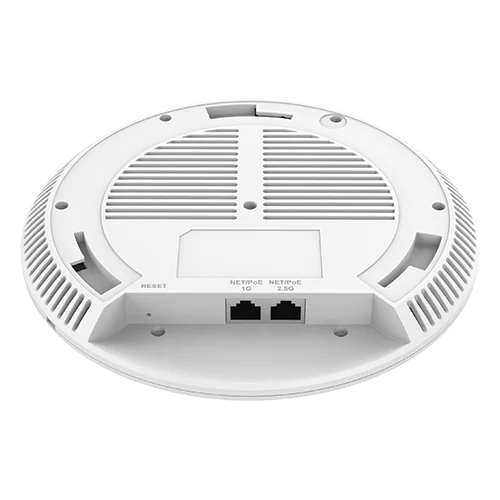

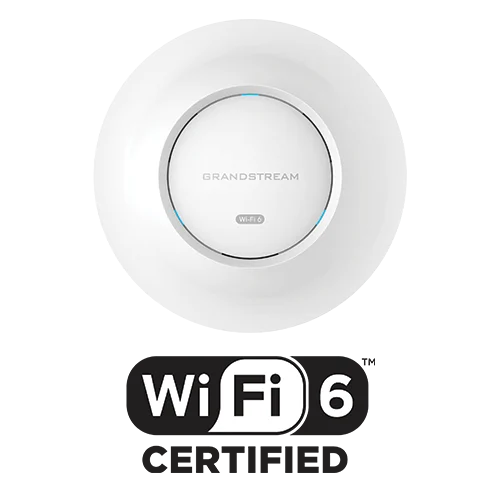

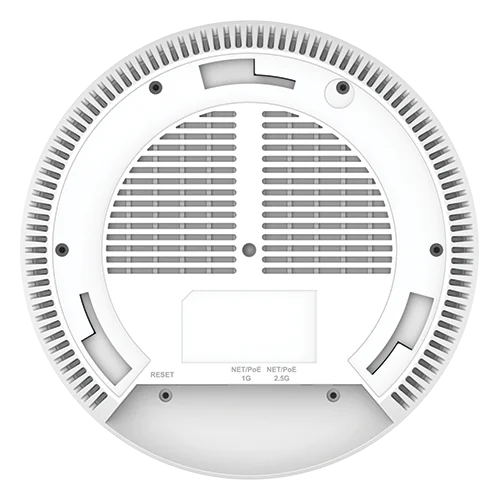

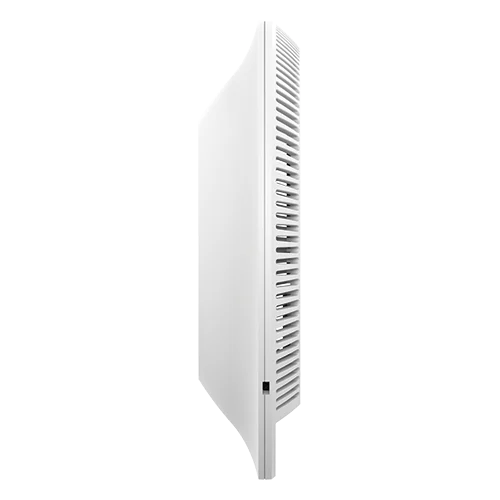

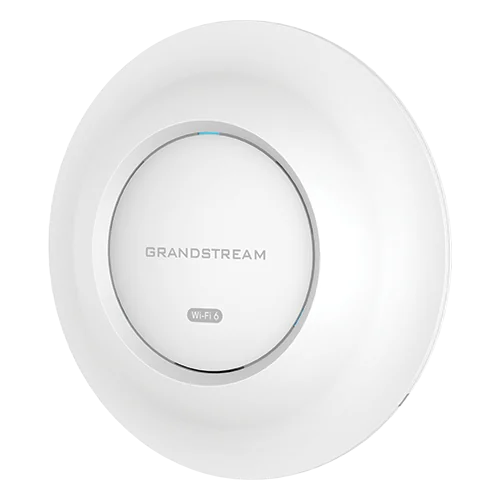

GWN7662
The Grandstream GWN7662 is a 802.11ax Wi-Fi 6 access point that’s perfect for small-to-medium-sized businesses, home offices, retail shops, restaurants, hospitality, education, and more. What’s so great about it, you ask? Well, for starters, it offers 4×4:4 MU-MIMO technology on the 5G band and 2×2:2 MU-MIMO on the 2.4G band. Plus, it has a sophisticated antenna design that ensures maximum network throughput and expanded Wi-Fi coverage range. But that’s not all – the GWN7662 also supports Wi-Fi 6 technology, which is perfect for the modern generation of dense environments where many users and many devices require consistent and reliable Wi-Fi connections at higher speeds.
Features
Wi-Fi Standards:
- IEEE 802.11 a/b/g/n/ac(Wave-2)/ax
- Antennas: 6 single frequency internal antennas, 2.4GHz 3.65dBi, 5GHz 5.26dBi
Wi-Fi Data Rates:
5G:
-
- IEEE802.11ax:8.6Mbps to 4804Mbps
- IEEE 802.11ac: 6.5 Mbps to 3464 Mbps
- IEEE 802.11n: 6.5Mbps to 600Mbps
- IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Additional information
| Antenna Configuration | Integrated Omni-Directional |
|---|---|
| Management Platform | Embedded Controller, GDMS Networking (Cloud), GWN Manager |
| Max Data Rate | 4804 Mbps (5 GHz), 573 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 (2.4 GHz), 4×4 (5 GHz) |
| Mounting Options | Ceiling Mount, wall mount |
| No of Users (recommended) | +150 Users |
| POE | Support POE |
| Ports | 2 Ports |
| Ports Speed | 1G, 2.5G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 6 |
| Wireless Bands | Dual Bands |
