Hikvision DS-3E0105P-E/M(B) – Description
4 Port Fast Ethernet Unmanaged PoE Switch
Reliable PoE Network Connectivity:

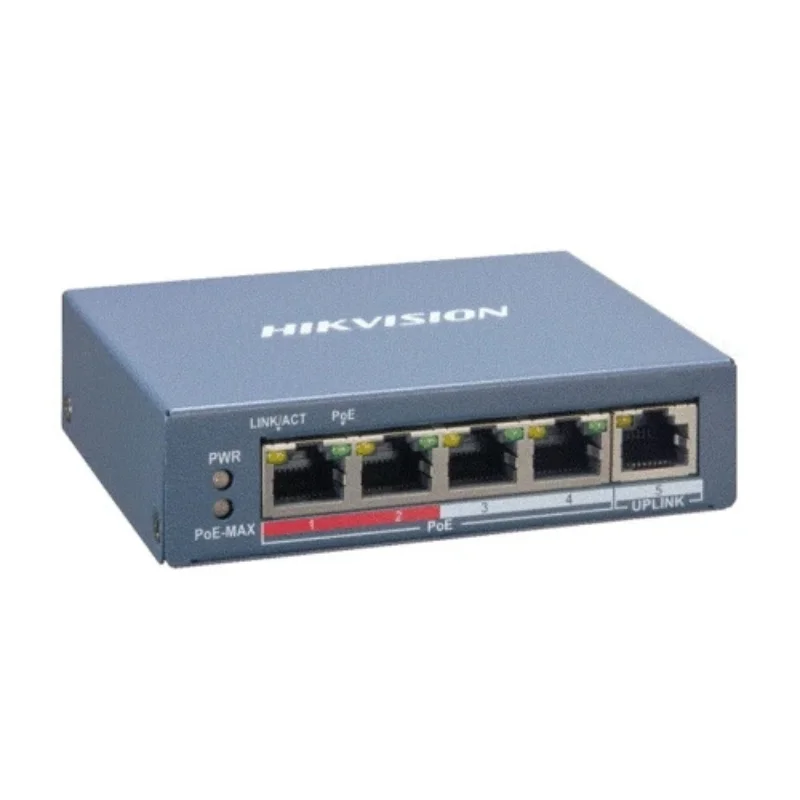

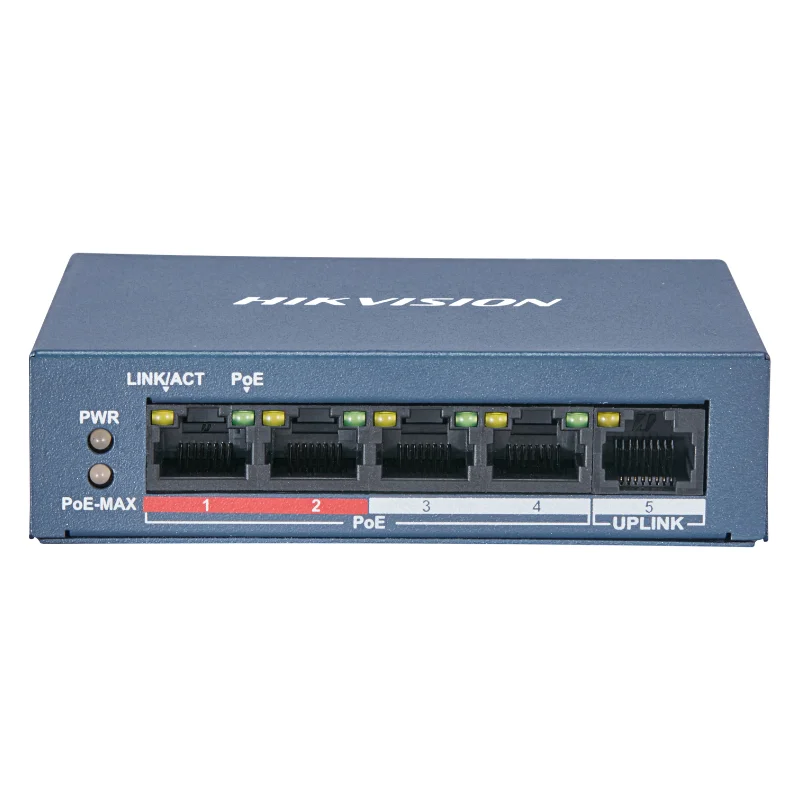

The Hikvision DS-3E0105P-E/M(B) is a compact 4 Port Fast Ethernet Unmanaged PoE Switch designed to provide reliable network connectivity and power delivery for IP cameras and other PoE devices. It features four 10/100 Mbps PoE ports and one 10/100 Mbps RJ45 uplink port, making it a practical solution for small surveillance and networking installations.
Intelligent PoE Management:
This Hikvision PoE switch features intelligent PoE management that helps control power delivery when the power supply reaches its limit. This intelligent operation helps protect the connected equipment and can contribute to extending the overall service life of the switch.
Up to 300 Meter Long-Range PoE:
One of the key advantages of the DS-3E0105P-E/M(B) is its Long Range PoE transmission capability. Ports 1 to 4 can support transmission distances of up to 300 meters, allowing IP cameras to be installed farther from the network switch. Actual performance may vary depending on the camera model and cable quality.
Efficient 4/8-Core Power Supply:
The switch supports adaptive 4/8-core power supply technology. Its 8-core power supply design helps reduce power loss over network cables, improving power delivery efficiency for connected PoE devices and making it suitable for surveillance environments where stable connectivity is important.
6KV Surge Protection:
For improved reliability in demanding environments, the Hikvision DS-3E0105P-E/M(B) includes 6KV surge protection. The built-in protection helps safeguard the switch and connected network equipment against sudden electrical surges, including lightning-related surges.
Designed for Video Transmission:
The switch is designed with video surveillance applications in mind. Its VIP port function helps prioritize important data transmission when network congestion occurs, supporting more stable video communication between IP cameras and the network.
Compact and Flexible Installation:
With dimensions of only 105 × 27.6 × 83.1 mm and a net weight of 0.2 kg, this compact PoE switch is easy to install in space-constrained environments. It supports both desk-mounted and wall-mounted installation, providing flexibility for different surveillance and networking setups.
Power and Switching Performance:
The DS-3E0105P-E/M(B) provides a 1 Gbps switching capacity and a packet forwarding rate of 0.74 Mpps. It has a 2K MAC address table and 768 Kbits of internal cache. The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, with up to 30 W available per PoE port and a total PoE power budget of 35 W.
Ideal for Surveillance Networks:
The Hikvision DS-3E0105P-E/M(B) is a suitable choice for small CCTV and IP surveillance systems requiring PoE connectivity, long-distance transmission, surge protection, and straightforward installation. Its compact design and dedicated video transmission features make it a practical networking solution for homes, offices, shops, and small security installations.
