Hikvision DS-3E0505P-E/M – Description
4 Port Gigabit Unmanaged PoE Switch

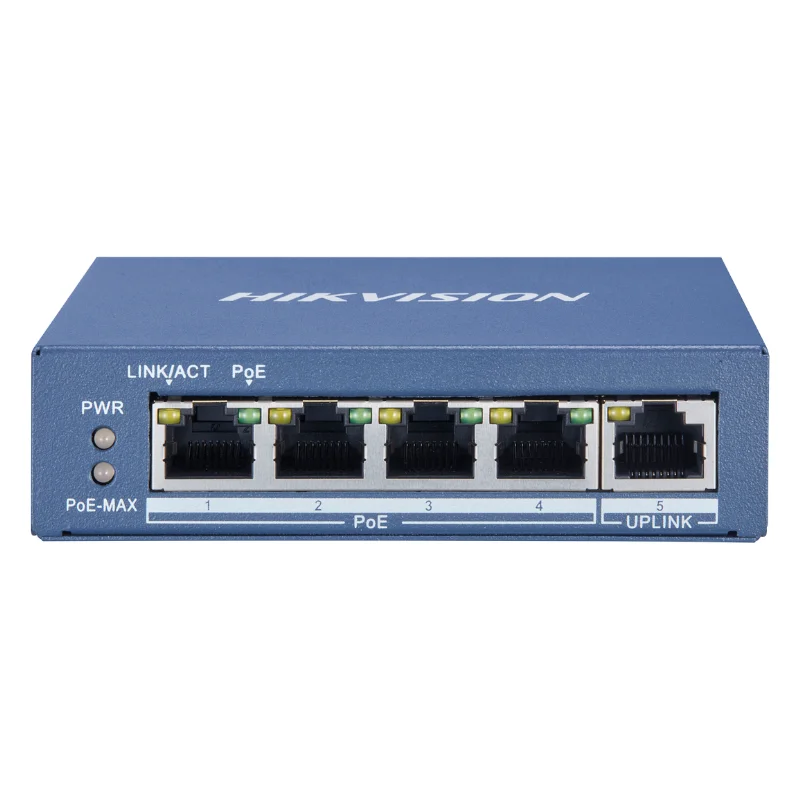

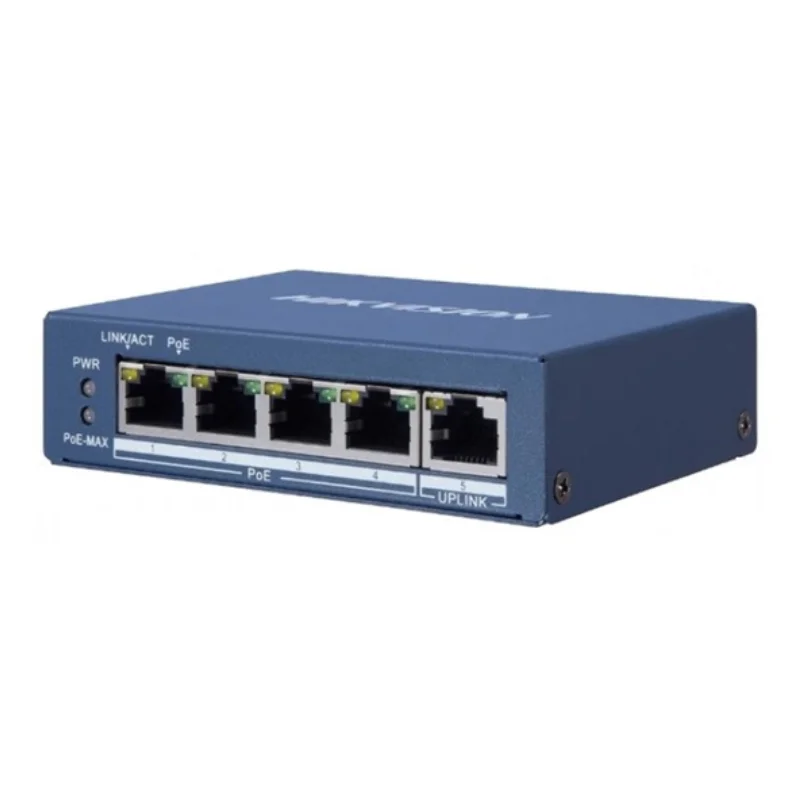

The Hikvision DS-3E0505P-E/M is a compact 4-port Gigabit unmanaged PoE switch designed for reliable network connectivity and efficient power delivery. With four Gigabit PoE ports and one additional Gigabit RJ45 uplink port, it provides a practical networking solution for IP cameras, wireless access points, VoIP devices, and other PoE-enabled equipment.
Gigabit Network Performance:
Equipped with Gigabit Ethernet ports, the DS-3E0505P-E/M delivers fast network access for surveillance and business applications. Its 10 Gbps switching capacity, 7.44 Mpps packet forwarding rate, and non-blocking wire-speed forwarding design help maintain smooth data transmission across connected devices.
Reliable PoE Power Delivery:
The Hikvision switch supports IEEE 802.3af and IEEE 802.3at PoE standards, allowing it to provide both data and power through Ethernet cables. Ports 1 to 4 support PoE, with up to 30 W per port and a total 35 W PoE power budget, making it suitable for powering compatible IP cameras and network devices.
Enhanced Surge Protection:
For added protection in surveillance installations, the Hikvision DS-3E0505P-E/M features 6 kV surge protection for its PoE ports. This helps improve system reliability by protecting connected PoE equipment against electrical surges and making the switch suitable for security camera networks.
Fan-Free and Durable Design:
The Hikvision Switch features a solid high-strength metal shell and a reliable fan-free design. Its compact construction helps reduce operating noise while providing a durable solution for small network installations. The switch can be installed on a desk or mounted on a wall according to the installation requirements.
Efficient and Compact Networking:
With a maximum power consumption of 38 W and idle power consumption of only 3 W, the DS-3E0505P-E/M provides efficient operation. Its compact dimensions of 105 × 27.6 × 83.1 mm and lightweight 0.265 kg design make it easy to install where space is limited.
Ideal for Surveillance Networks:
The Hikvision DS-3E0505P-E/M is an excellent choice for small CCTV and IP surveillance systems requiring Gigabit connectivity and PoE power. Its unmanaged operation makes deployment simple, while store-and-forward switching, PoE power management, and reliable hardware provide a practical networking solution for homes, offices, shops, and small security installations.
