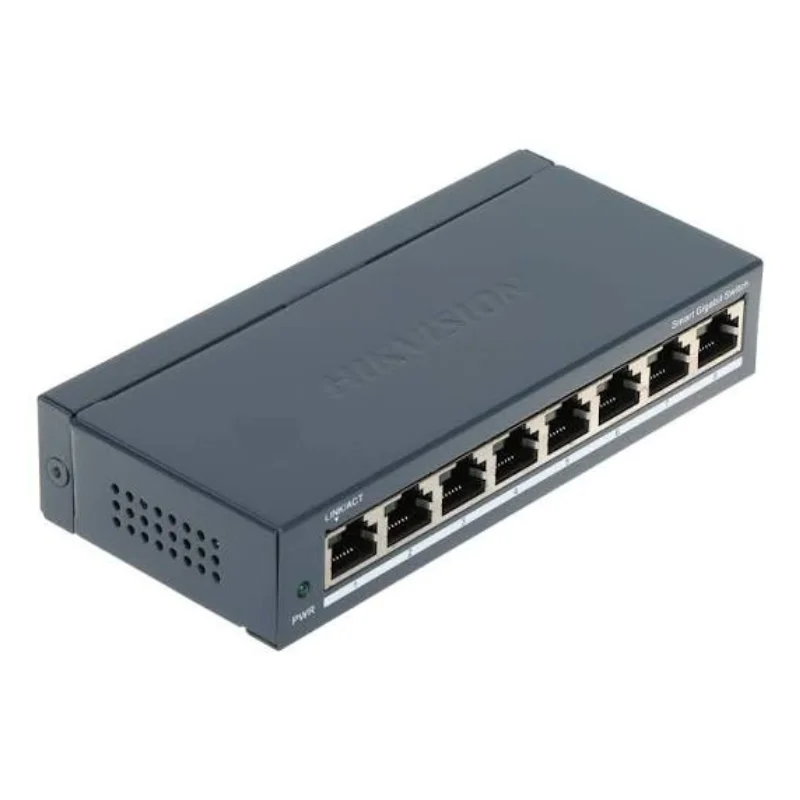

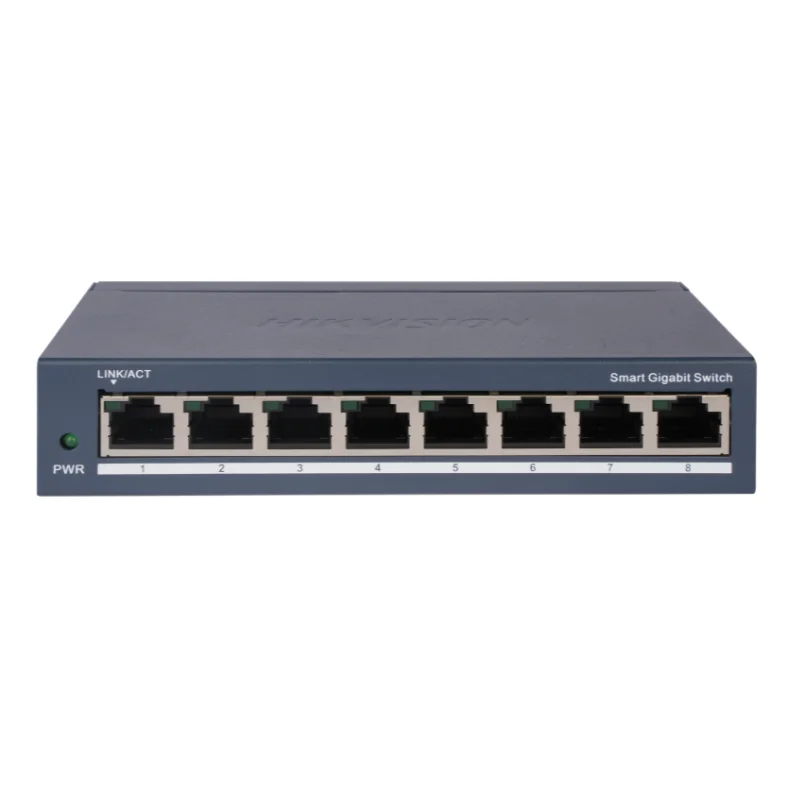

Hikvision DS-3E1508-EI – Description

8 Port Gigabit Smart Switch

Reliable Gigabit Network Connectivity:

The Hikvision DS-3E1508-EI 8 Port Gigabit Smart Switch is a compact and reliable networking solution designed for businesses, surveillance systems, offices, and professional network environments. It features 8 Gigabit RJ45 ports, providing high-speed wired connectivity for computers, IP cameras, access points, network recorders, and other Ethernet devices. With Gigabit network access, the switch helps deliver fast and stable data transmission across connected devices.

8 Gigabit RJ45 Ports:

Equipped with 8 × Gigabit RJ45 ports, the DS-3E1508-EI provides up to 1 Gbps Ethernet connectivity per port. Its total switching capacity reaches 16 Gbps, while the packet forwarding rate reaches 11.91 Mpps, allowing network traffic to move efficiently between connected devices. The switch is suitable for applications that require dependable local network performance and efficient bandwidth utilization.

Smart Network Management:

The Hikvision DS-3E1508-EI offers a range of smart management features that make network administration easier. It supports web-based device management, DHCP client functionality, LLDP, port mirroring, cable detection, and management through Hikvision platforms. These functions help administrators monitor network performance, identify connection issues, and maintain network infrastructure more efficiently.

Hik-Partner Pro Remote Management:

With support for Hik-Partner Pro (HPP), the switch can be activated and managed remotely. Administrators can check port rates, monitor bandwidth utilization, view network topology information, review alarm status, restart ports or devices, and remotely upgrade the device. This makes the DS-3E1508-EI particularly useful for professional installers and network administrators managing multiple Hikvision devices.

Port Isolation for Better Security:

The switch 8 port  supports port isolation on ports 1 to 8. Devices within the same isolation group cannot communicate directly with each other, while communication with ports outside the isolation group remains possible. This feature can help improve network security and reduce unnecessary communication between connected endpoints, making it useful in surveillance and shared network environments.

Static Link Aggregation:

The DS-3E1508-EI supports static link aggregation, allowing multiple physical network ports to be combined into a logical connection. It supports up to 2 aggregation groups. Link aggregation can help with bandwidth expansion, load balancing, and port protection, making it useful for network environments where reliable connectivity and efficient traffic distribution are important.

Cable Detection and Troubleshooting:

Maintaining network cabling can be easier with the switch’s built-in cable detection feature. The DS-3E1508-EI can detect abnormal open circuits and short circuits and can also identify network cable length. This helps technicians locate potential cable problems without relying solely on external testing equipment, simplifying troubleshooting and network maintenance.

Compact Fan-Free Metal Design:

The switch features a solid high-strength metal shell and a reliable fan-free design. Without an internal cooling fan, the device operates quietly and reduces the need for mechanical fan maintenance. Its compact dimensions of 144.60 × 29.60 × 69.30 mm make it easy to install in locations where space is limited.

Flexible Installation:

The Hikvision DS-3E1508-EI supports both desk-mounted and wall-mounted installation, providing flexibility for different network layouts. Its compact form factor allows it to be positioned conveniently near connected equipment, while the metal housing provides a durable construction suitable for professional installations.

6 kV Surge Protection:

For additional protection, the switch provides 6 kV surge protection. This helps protect the network ports against electrical surges and contributes to more reliable operation in professional networking and security installations. Combined with its durable metal construction and fan-free design, the switch is built for dependable long-term use.

Suitable for Surveillance and Business Networks:

The Hikvision DS-3E1508-EI is well suited to IP surveillance networks, offices, small businesses, security systems, and structured Ethernet installations. Its Gigabit ports, VLAN, STP/RSTP, port isolation, link aggregation, cable detection, and remote management features provide a useful combination of performance and network control.
