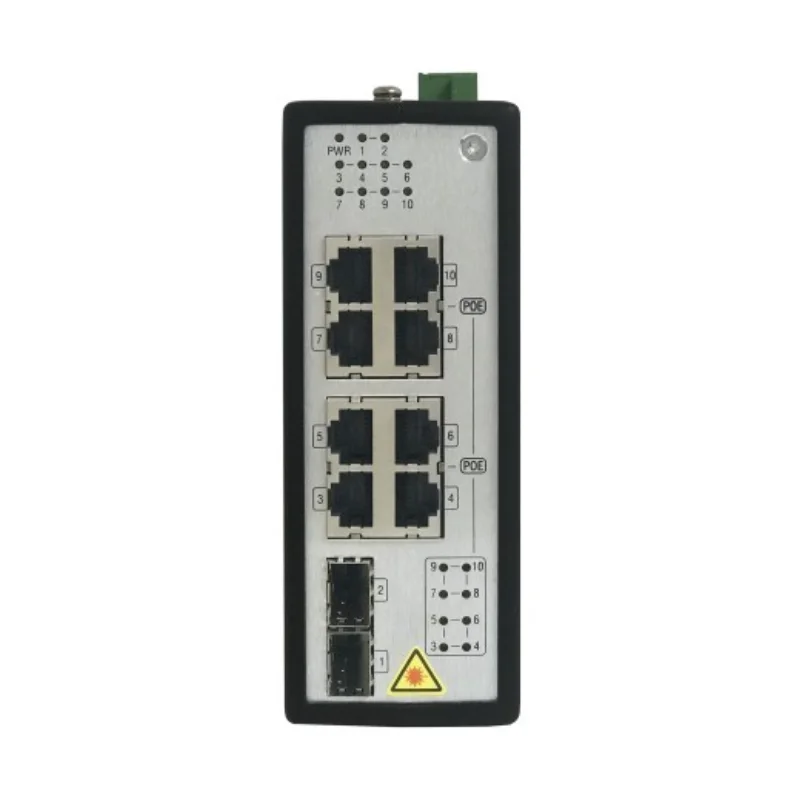

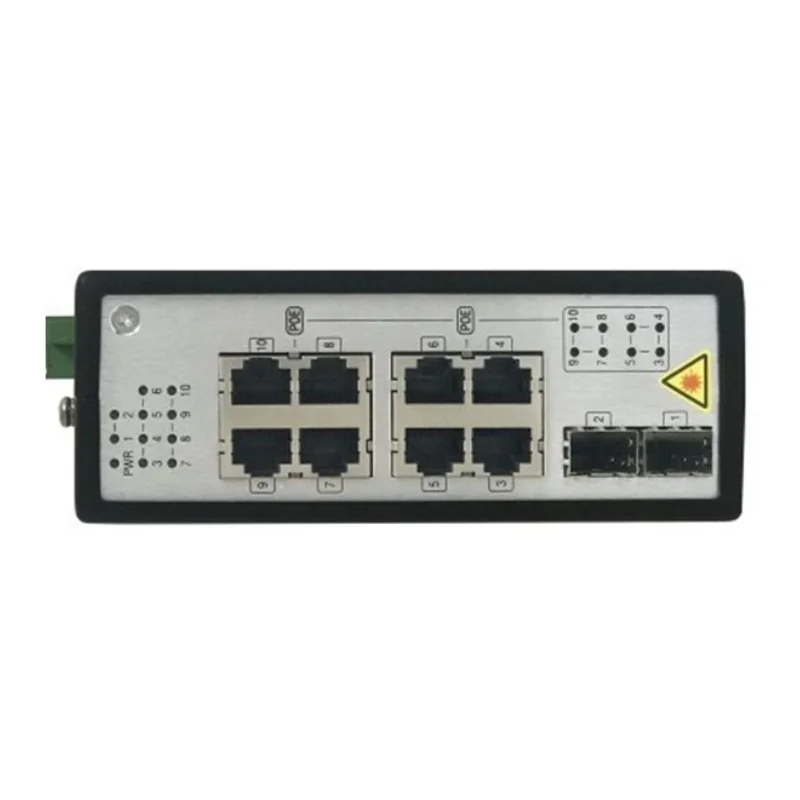

Hikvision DS-3T0510P – Description
8 Port Gigabit Unmanaged Industrial PoE Switch
Industrial-Grade Network Performance:
The Hikvision DS-3T0510P 8 Port Gigabit Unmanaged Industrial PoE Switch is designed to deliver reliable, high-speed network connectivity for industrial environments, surveillance systems, and demanding networking applications. Featuring full Gigabit ports and a 20 Gbps switching capacity, this industrial PoE switch ensures efficient data transmission and smooth network communication across connected devices.
Full Gigabit Connectivity:
Equipped with 8 Gigabit PoE ports and 2 Gigabit fiber optical ports, the Hikvision DS-3T0510P provides flexible connectivity for IP cameras, network devices, and fiber-based uplinks. Its 20 Gbps backplane bandwidth supports efficient data processing, helping maintain stable performance in networks with multiple connected devices.
IEEE 802.3af/at PoE Support:
This Hikvision industrial PoE switch supports IEEE 802.3af and IEEE 802.3at standards, allowing compatible devices to receive power and data through a single Ethernet cable. Each PoE port delivers up to 30 W, making the switch suitable for powering IP surveillance cameras, wireless access points, and other compatible PoE equipment.
240W PoE Power Budget:
With a total 240 W PoE power budget, the DS-3T0510P supports multiple powered devices simultaneously, depending on their individual power requirements. Its PoE management features include PoE device detection and power management, helping improve power distribution and network administration.
Reliable Dual Power Input Design:
The Hikvision DS-3T0510P adopts a redundant dual power input design to support reliable operation in industrial networking environments. This design helps provide power supply flexibility and supports improved system availability when used with suitable power sources.
Fan-Free Industrial Housing:
Built with a die-cast aluminum alloy housing, this industrial Ethernet switch offers a durable enclosure for demanding installations. Its fan-free design reduces mechanical noise and eliminates the need for a cooling fan, making it suitable for environments where quiet operation and reduced moving parts are important.
Wide Operating Temperature Range:
The Hikvision switch 8 port is engineered to operate in challenging temperature conditions, with an operating range from -40°C to 75°C. Its industrial design and fanless construction make it suitable for various indoor industrial and networking applications, subject to appropriate installation conditions.
Compact and Flexible Installation:
Measuring 140 × 110 × 52 mm and weighing approximately 0.8 kg, the Hikvision DS-3T0510P offers a compact design for space-conscious network installations. Its desk-mounted installation mode supports convenient deployment in suitable workspaces and industrial network setups.
Enhanced Network Reliability:
With 6 kV surge protection and an MTBF of at least 400,000 hours, the switch is designed with features that support reliable operation. Its 4K MAC address table and Gigabit connectivity make it suitable for network infrastructure requiring efficient device communication and dependable data transmission.
Applications and Compatibility:
The Hikvision DS-3T0510P is suitable for industrial surveillance networks, IP camera systems, access control installations, and network infrastructure requiring PoE connectivity. Its combination of Gigabit Ethernet, fiber optical ports, wide temperature tolerance, and PoE management makes it a practical option for professional networking environments.
