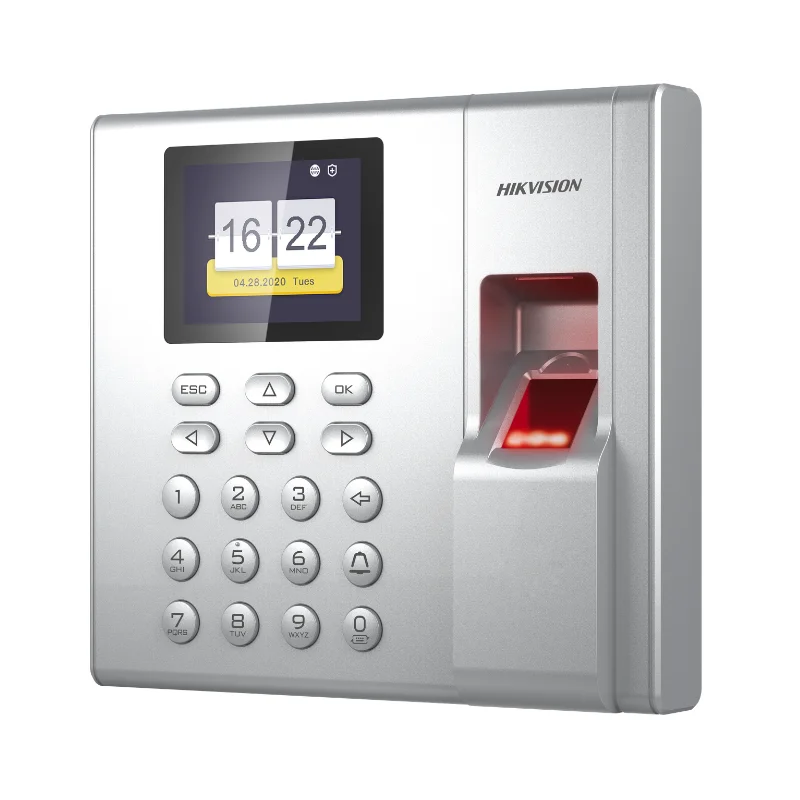

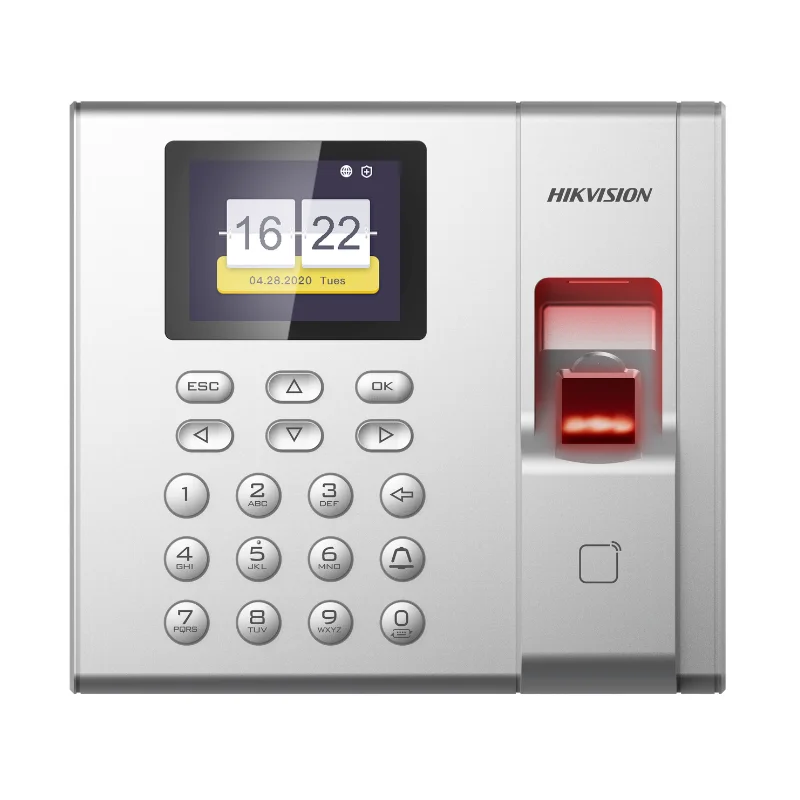

Hikvision DS-K1T8003MF – Description
Value Series Fingerprint Time Attendance Terminal
Reliable Fingerprint Time Attendance:
The Hikvision DS-K1T8003MF is a Value Series fingerprint time attendance and access control terminal designed for efficient employee attendance management and secure door access. It combines fingerprint authentication, Mifare card reading, and network connectivity in one compact device.
Fast Fingerprint Recognition:
Equipped with an optical fingerprint module, the terminal supports both 1:1 and 1 fingerprint comparison. Its fingerprint recognition duration is less than one second, helping employees complete check-in and check-out quickly while maintaining convenient access control.
Mifare Card Authentication:
The DS-K1T8003MF features a built-in Mifare 1 card reader with a reading distance of 0–5 cm. It supports up to 1,000 cards, providing an additional authentication method for workplaces that prefer card-based attendance or access control.
Attendance and Access Control:
This Hikvision fingerprint integrates time attendance and access control functions, making it suitable for offices, businesses, shops, and other facilities. It can manage up to 1,000 fingerprints, 1,000 cards, and 100,000 event records, providing practical capacity for many small and medium-sized installations.
Network Connectivity:
For centralized management and system integration, the device supports TCP/IP and ISUP communication over a 10/100 Mbps self-adaptive wired network. It also includes interfaces for lock control, exit button, door contact, tamper detection, and USB connectivity.
Easy Attendance Reporting:
The Hikvision fingerprint supports Self Service Reports (SSR), allowing it to operate independently, calculate attendance data, and export attendance reports through its USB interface. This makes it useful for installations that need straightforward attendance management without depending entirely on a computer.
Compact LCD Design:
A 2.4-inch LCD-TFT display provides a clear interface for viewing attendance and authentication information. The device also includes a built-in loudspeaker and buzzer for audible notifications. Its silver housing and wall-mount design allow practical installation in different workplace environments.
Secure and Practical Installation:
The DS-K1T8003MF includes tamper protection and supports remote door opening through the Hik-Connect mobile client. It operates on 12 VDC/1 A and supports temperatures from -10°C to +55°C, with 10%–90% non-condensing humidity.
