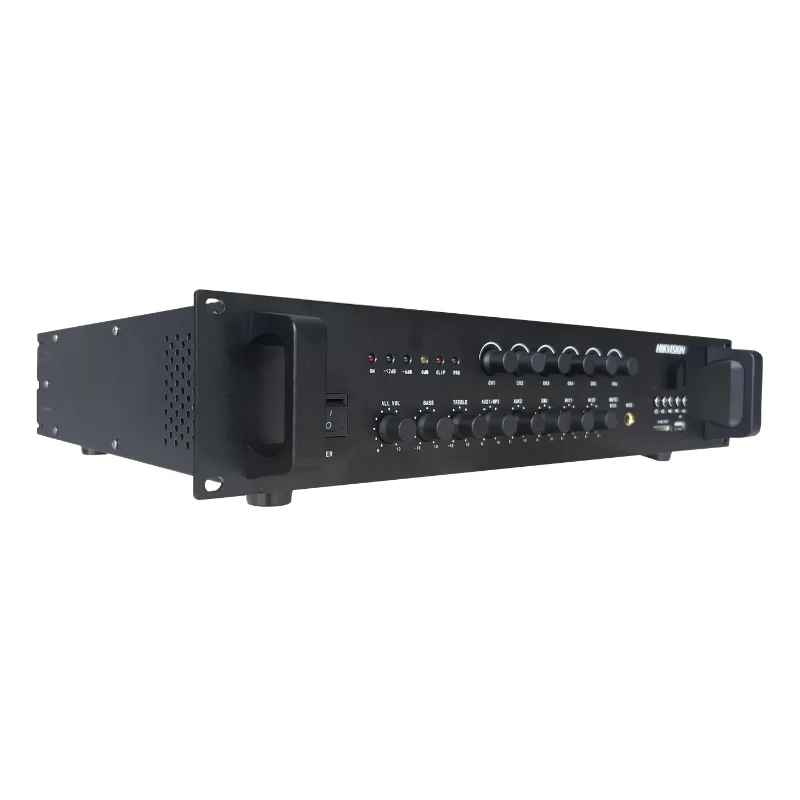

Hikvision DS-QAE0A120G1-VB6 – Description
6-Zone Analog Amplifier 120W
Professional Multi-Zone PA Amplifier:
The Hikvision DS-QAE0A120G1-VB6 6-Zone Analog Amplifier 120W is a professional public address (PA) amplifier designed for reliable audio distribution across multiple zones. Delivering 120W rated output power, it is ideal for commercial buildings, offices, schools, retail stores, hotels, factories, hospitals, and other facilities that require clear and efficient background music and voice announcements. Its robust construction, multiple audio input options, and flexible zone management make it a dependable solution for modern audio broadcasting systems.
Flexible 6-Zone Audio Distribution:
Designed with six independent speaker zones, the Hikvision amplifier allows users to distribute audio efficiently across different areas of a building. Each zone features an individual volume control, enabling customized sound levels without affecting the remaining zones. The system also supports two-zone content and volume adjustment, making it easier to manage announcements and background music for different environments simultaneously.
Multiple Audio Input Options:
The DS-QAE0A120G1-VB6 supports a wide range of audio sources for maximum flexibility. It includes Bluetooth connectivity, USB 2.0, SD card playback, AUX inputs, microphone inputs, and an EMC emergency input. These options allow users to stream wireless music, connect external audio devices, play stored media, or make live voice announcements. The multiple input interfaces simplify system integration for both everyday broadcasting and emergency communication.
Excellent Audio Performance:
Engineered for consistent sound quality, the amplifier delivers a frequency response of 80Hz to 18kHz (±3dB) for clear speech and balanced music playback. A signal-to-noise ratio of 83dB or higher minimizes background noise, while total harmonic distortion below 0.5% helps maintain clean and accurate audio output. These specifications ensure reliable performance in demanding commercial audio applications.
Professional Output and Sound Control:
The amplifier offers versatile output options, including 70V, 110V, 4–16Ω constant impedance, and dedicated 6-zone speaker outputs, allowing compatibility with various speaker installations. Multiple front-panel controls provide convenient adjustment of microphone volume, AUX inputs, bass, treble, EMC level, overall volume, and individual zone levels. This gives installers and operators complete control over the audio experience.
Durable Design and Easy Installation:
Constructed with a durable iron chassis, the DS-QAE0A120G1-VB6 is built for long-term continuous operation. It is designed for standard cabinet installation, making it suitable for equipment racks in professional audio systems. Operating within temperatures from -10°C to +40°C, the amplifier maintains dependable performance in a wide range of indoor environments. Its sturdy design and professional layout make it a practical choice for permanent installations requiring reliable audio management.
