Hikvision DS-QAE0A240G1-VB6 – Description
6-Zone Analog Amplifier 240W
Powerful 240W 6-Zone Analog Audio Amplifier:
The Hikvision DS-QAE0A240G1-VB6 6-Zone Analog Amplifier 240W is a professional public address amplifier designed to deliver reliable, high-quality audio distribution across multiple zones. With a powerful 240W output, this amplifier is ideal for schools, offices, factories, retail stores, hotels, hospitals, warehouses, and commercial facilities that require dependable background music and voice announcements. Its six independent speaker zones provide greater flexibility, allowing users to manage different areas efficiently while maintaining excellent sound performance.
Flexible Multi-Zone Audio Control:
Designed for versatile audio management, the amplifier supports six independent output zones, enabling users to broadcast audio to selected areas without affecting the entire system. It also supports two-zone volume and content adjustment, allowing customized audio levels where needed. This makes it suitable for environments that require different announcements or varying sound levels throughout the building.
Multiple Audio Input Options:
The DS-QAE0A240G1-VB6 offers a wide range of audio input methods to accommodate modern and traditional audio sources. Users can connect audio through EMC input, dual microphone inputs, AUX inputs, Bluetooth, USB, and SD card, making playback convenient and flexible. Whether streaming music wirelessly, playing stored audio files, or making live announcements, the amplifier provides reliable connectivity for daily operation.
Excellent Audio Performance:
Engineered for clear and consistent sound reproduction, the amplifier features a frequency response of 80Hz to 18kHz (±3dB), ensuring balanced audio for both speech and background music. With Total Harmonic Distortion (THD) ≤0.5% and a Signal-to-Noise Ratio (SNR) ≥75dB, it minimizes distortion while delivering crisp, intelligible announcements. Adjustable bass and treble controls allow users to fine-tune audio quality according to different installation environments.

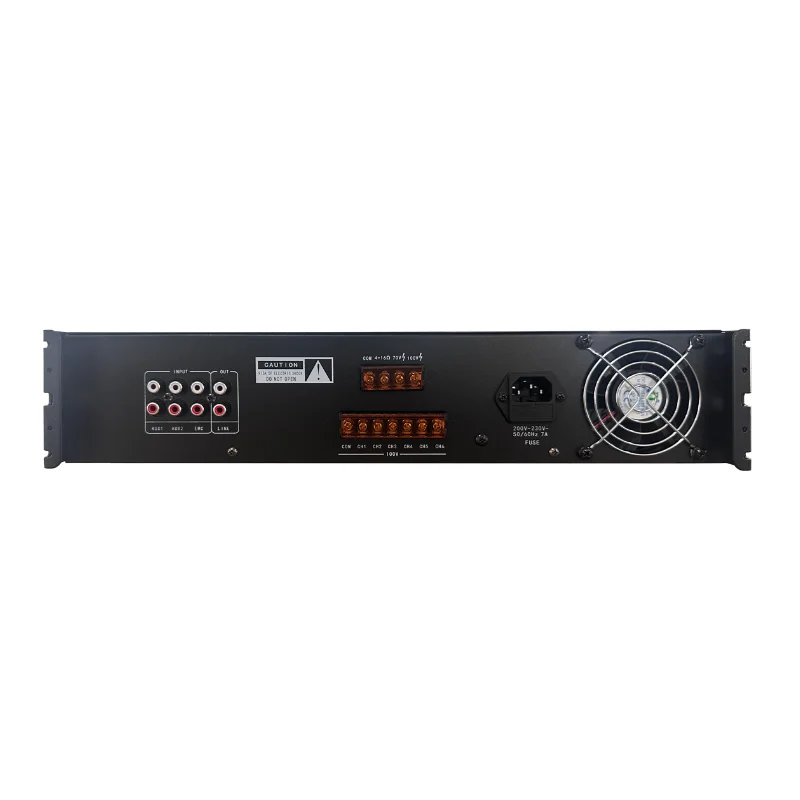

Comprehensive Output Connectivity:
The amplifier supports multiple speaker configurations with 110V constant voltage output, 70V constant voltage output, and 4–16Ω constant impedance output. In addition, six dedicated partition outputs make it easy to distribute audio throughout multiple zones. A built-in line output also enables integration with additional audio equipment, providing greater flexibility for expanding professional PA systems.

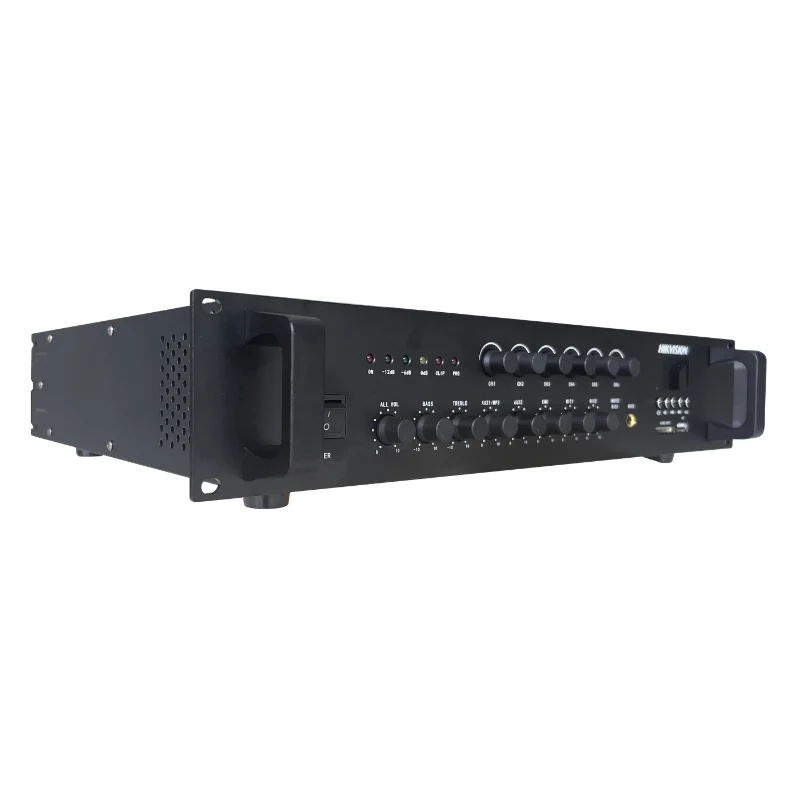

User-Friendly Operation:
Front-panel control knobs simplify daily operation by allowing independent adjustment of microphone volume, zone volume, AUX sources, EMC input, bass, treble, and overall system volume. The intuitive layout enables quick configuration without requiring advanced technical knowledge, making it suitable for continuous operation in commercial and institutional environments.
Durable Design for Professional Installation:
Built with a rugged iron chassis, the Hikvision DS-QAE0A240G1-VB6 is designed for long-term reliability in demanding environments. It supports cabinet installation, making it suitable for equipment racks used in professional audio systems. Operating within temperatures from -10°C to +40°C and humidity levels between 20% and 80%, it delivers dependable performance under various environmental conditions. Its robust construction and professional design make it an excellent choice for permanent installations requiring stable, high-power audio distribution.
