Archer T2E
HARDWARE FEATURES |
|
|---|---|
| Interface | PCI Express |
| Dimensions | 4.76 × 3.09 × 0.85 in (120.8 × 78.5 × 21.5 mm) |

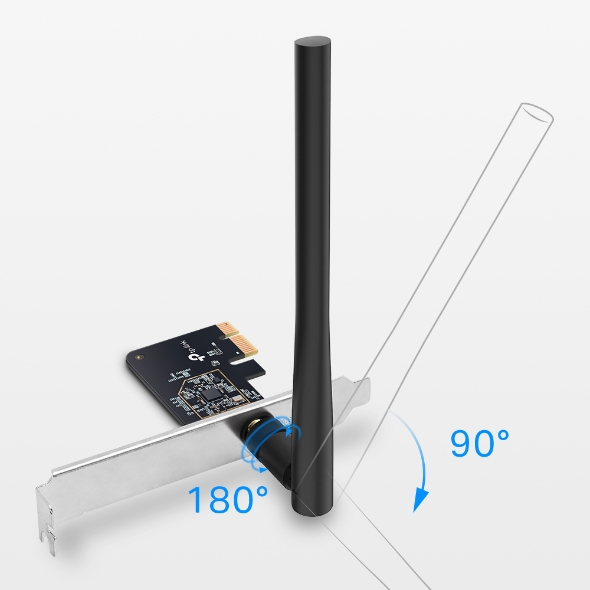

| Antenna | 1 Detachable External Antenna |
WIRELESS FEATURES |
|
|---|---|
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate | 5 GHz:
11ac: Up to 433 Mbps(dynamic) 11n: Up to 200 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 200 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | 5GHz:
11ac HT80:-59.0dBm 11n HT40:-68.0dBm 11a 54Mbps:-73.0dBm 11a 6Mbps:-90.0dBm 2.4GHz: 11n HT40:-70dBm 11g 54Mbps:-75dBm 11b 11Mbps:-87dBm |
| Transmit Power | 5GHz:18dBm(FCC)/23dBm(CE)(EIRP)
2.4GHz:18dBm(FCC)/20dBm(CE)(EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK/WPA3-SAE |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | AC600 Wireless Dual Band PCI Express Adapter
Archer T2E Low-Profile Bracket Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10 |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Antenna Configuration | 1 Detachable External Antenna |
|---|---|
| Management Platform | Plug-and-play |
| Max Data Rate | 200 Mbps (2.4 GHz), 433 Mbps (5 GHz) |
| MIMO Capabilities | 1×1 |
| Mounting Options | Portable |
| Security Standards | WPA2 |
| Wifi | WIFI 5 |
| Wireless Bands | Dual Bands |
