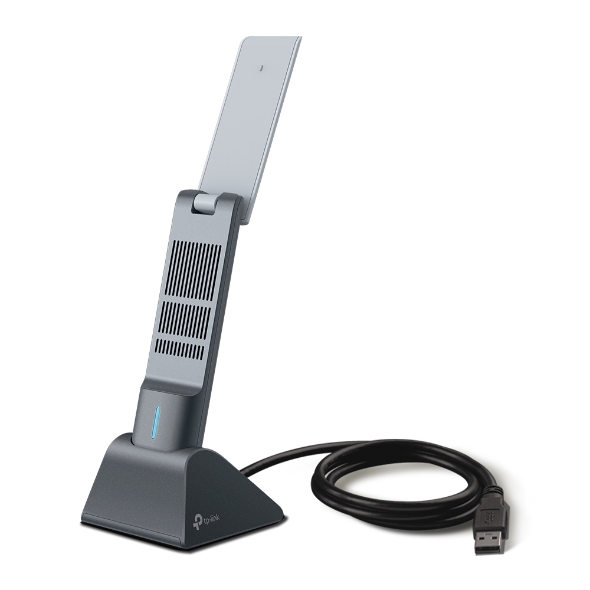

Archer TX20UH
HARDWARE FEATURES |
|
|---|---|
| LED | Status |
| Dimensions | 30.5 × 14.8 × 111.7 mm (1.2 × 0.58 × 4.4 in) |
| Antenna | 2× High-Gain Dual-Band Antennas |
WIRELESS FEATURES |
|
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | 5 GHz:
11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Transmit Power | 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP)
2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |

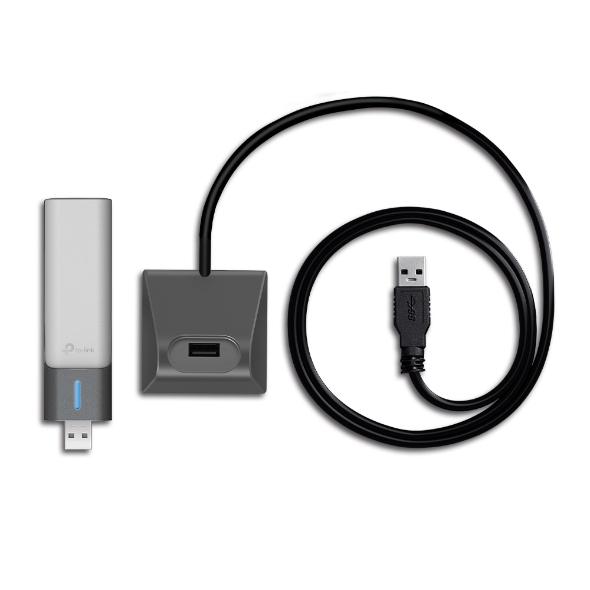

| Package Contents | AX1800 High Gain Wireless USB Adapter Archer TX20UH
Quick Installation Guide USB 3.0 Cradle |
| System Requirements | Supported operating systems include Windows 10, 11 |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Antenna Configuration | 1 Detachable External Antenna |
|---|---|
| Management Platform | Plug-and-play |
| Max Data Rate | 1201 Mbps (5GHz), 574 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Security Standards | WPA2 |
| Wi-Fi | WIFI 6 |
| Wireless Bands | Dual Bands |
