Deco X20
WIRELESS |
|
|---|---|
| Standards | Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800
5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |

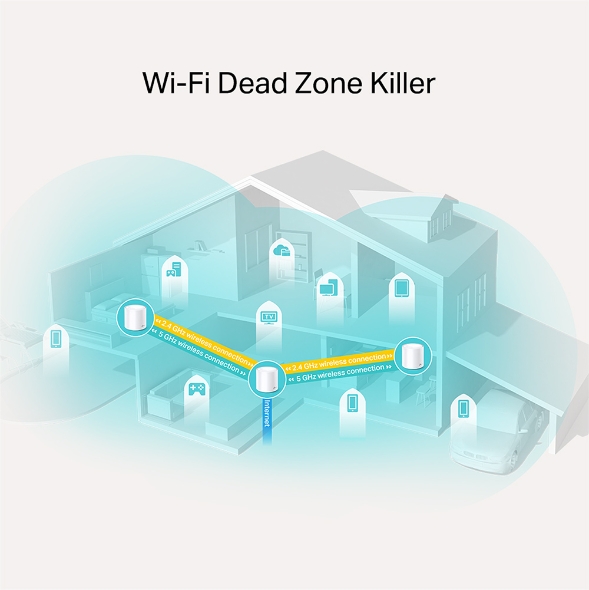

| WiFi Range | 1-3 Bedroom Houses (1-pack)
3-4 Bedroom Houses (2-pack) 4-6 Bedroom Houses (3-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
| Working Modes | Router Mode
Access Point Mode |
SECURITY |
|
|---|---|
| Network Security | SPI Firewall
Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal
WPA2-Personal WPA3-Personal |
HARDWARE |
|
|---|---|
| Ethernet Ports | 2× Gigabit Ports
*Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
SOFTWARE |
|
|---|---|
| Protocols | IPv4
IPv6 |
| Service Kits | Home Shield |
| Parental Controls | Home Shield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP
Static IP PPPoE PPTP L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade
TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding
UPnP |
| IPTV | IGMP Proxy
IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation
DHCP Client List Server |
| DDNS | TP-Link |

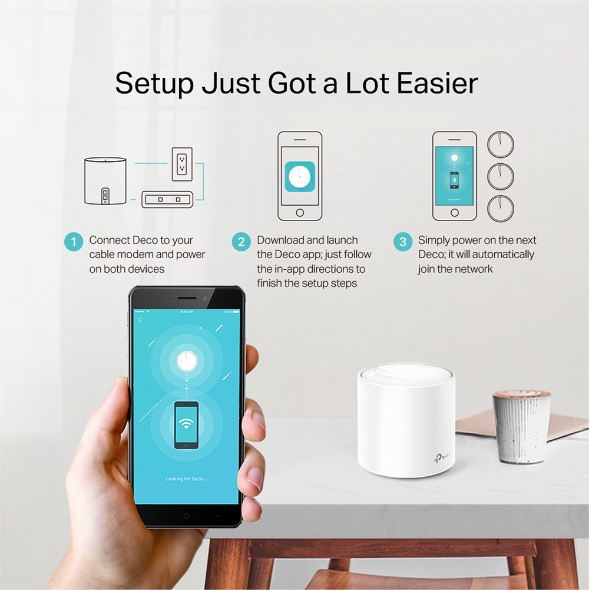

| Management | Deco App |
TEST DATA |
|
|---|---|
| WiFi Transmission Power | CE:
<20 dBm (2.4 GHz) <23 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 4.33 × 4.33 × 4.49 in
(110 × 110 × 114 mm) |

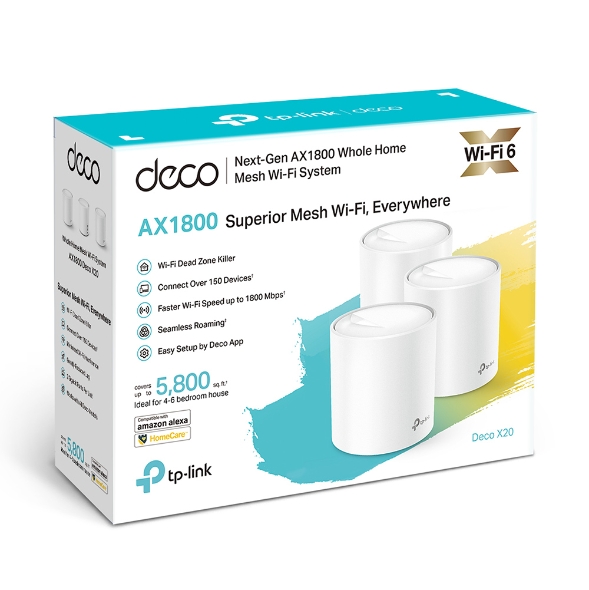

| Package Contents | Deco X20 (3-pack)
3 Deco X20 Units 1 RJ45 Ethernet Cable 3 Power Adapters 1 Quick Installation Guide Deco X20 (2-pack) 2 Deco X20 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco X20 (1-pack) 1 Deco X20 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
OTHERS |
|
|---|---|
| System Requirements | Android 5.0 or later
iOS 9.0 or later *Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information. |
| Certifications | CE, FCC, IC, RoHS, JPA, JRF, VCCI |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Antenna Configuration | 2 Internal Antennas |
|---|---|
| Management Platform | Local Web GUI, TP-Link Deco App |
| Max Data Rate | 1201 Mbps (5GHz), 574 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 |
| Mounting Options | Desktop |
| No of Users (recommended) | +150 Users |
| POE | Not Support POE |
| Ports | 2 Ports |
| Ports Speed | 1G |
| Security Standards | WPA2, WPA3 |
| Wi-Fi | WIFI 6 |
| Wireless Bands | Dual Bands |
