M7200
HARDWARE FEATURES |
|
|---|---|
| Interface | 1 micro USB port for power supply
1 SIM card slot |
| Button | Power On/Off |
| Power Supply | Internal 2000mAh Rechargeable Battery |
| Network Type | 4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500MHz) 3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz) |
| Data Rates | DL: 150Mbps, UL: 50Mbps |
| Dimensions ( W x D x H ) | 3.7×2.2×0.8 in. (94×56.7×19.8mm) |
| Antenna | Internal Antenna |
| LED Display | Wi-Fi status, Internet connection status, Battery status |
WIRELESS FEATURES |
|
|---|---|
| Wireless Standards | IEEE 802.11b/g/n |
| Wireless Speeds | 300Mbps |
| Frequency | 2.4GHz |
| Transmit Power | 2.4G <20dbm |
| Wireless Security | Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering |
| DHCP | DHCP server, DHCP Client List |
OTHERS |
|
|---|---|
| RNDIS Support | Yes
System Requirement: Windows XP/7/8/10 |
| Certification | CE, RoHS |

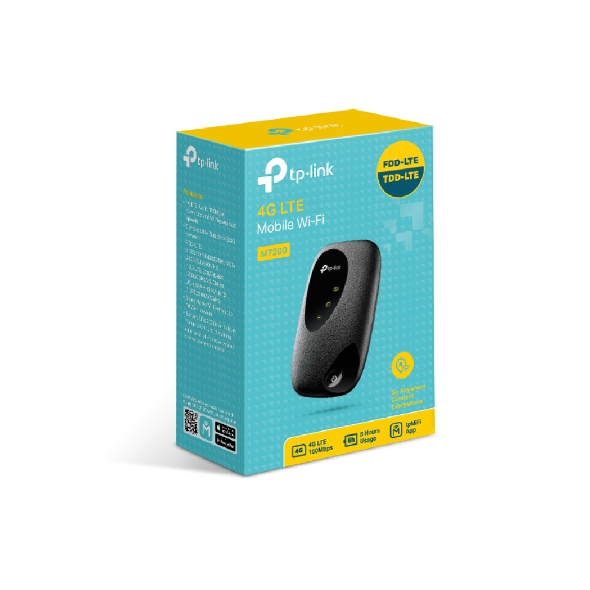

| Package Contents | 4G LTE Mobile Wi-Fi M7200
Micro USB Cable 2000mAh Battery Quick Installation Guide |
| System Requirements | Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone |
| Certifications | CE, RoHS |
Additional information
| Antenna Configuration | Internal Omni-directional |
|---|---|
| Management Platform | Local Web GUI, tpMiFi App |
| Max Data Rate | 300 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 (2.4 GHz) |
| Mounting Options | Desktop |
| No of Users (recommended) | 10 users |
| POE | Not Support POE |
| Security Standards | WPA2 |
| Wifi | WIFI 4 |
| Wireless Bands | 2.4 GHz |
