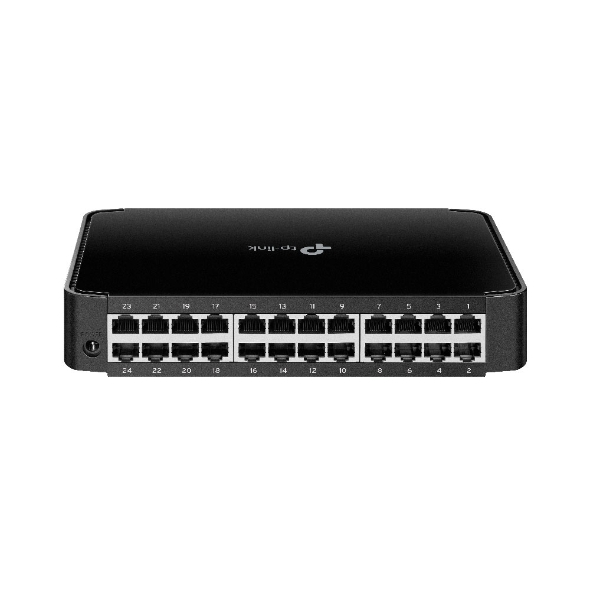

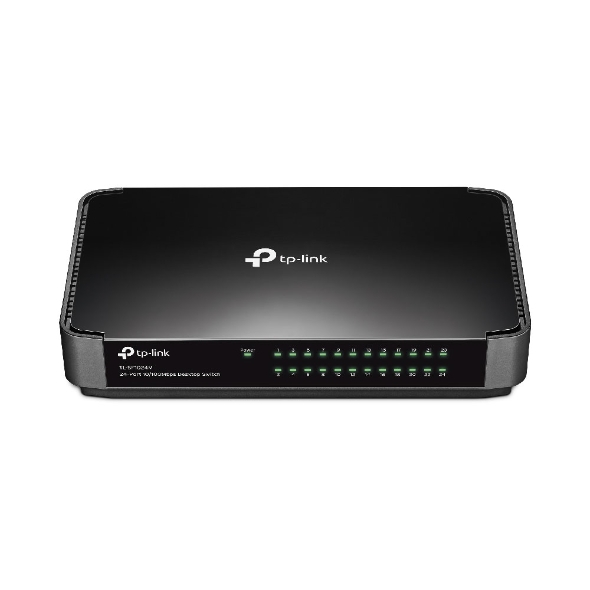

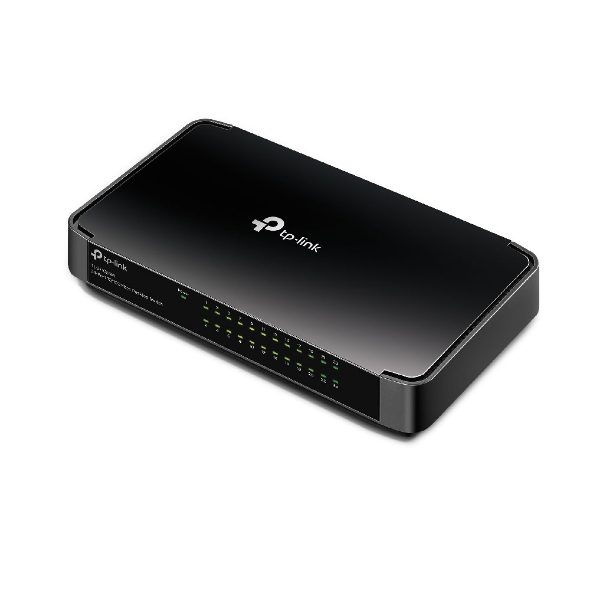

TL-SF1024M
HARDWARE FEATURES |
|
|---|---|
| Interface | 24 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| Mac Address Table | 8K |
| Dimensions ( W x D x H ) | 8.7 x 5.0 x 1.8 in. ( 222 x 126 x 45 mm) |
| Max Power Consumption | 3.36W(220V/50Hz) |
| Max Heat Dissipation | 11.46BTU/h |
SOFTWARE FEATURES |
|
|---|---|
| Transfer Method | Store and Forward |
| Advanced Functions | Green Technology
802.3X Flow Control |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 24-Port 10/100Mbps Desktop Switch TL-SF1024M
Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~60℃ (-40℉~140℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 24 |
|---|---|
| Access Ports Speed | 100 Mbps (RJ-45) |
| Forwarding Rate (Throughput) | 2.2 Gbps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Layer | Layer 2 |
| Switching Capacity | 1 Gbps |
