TL-SG1005D
HARDWARE FEATURES |
|
|---|---|

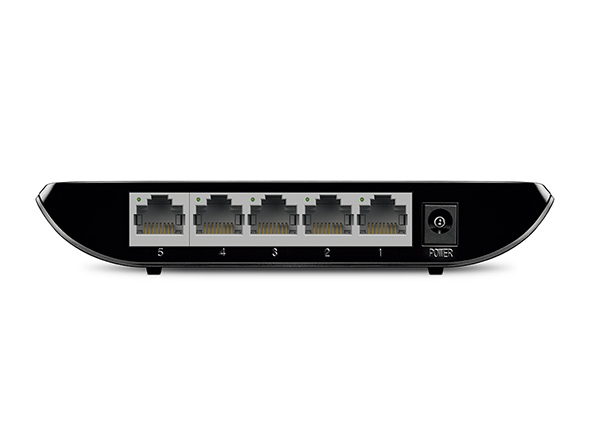

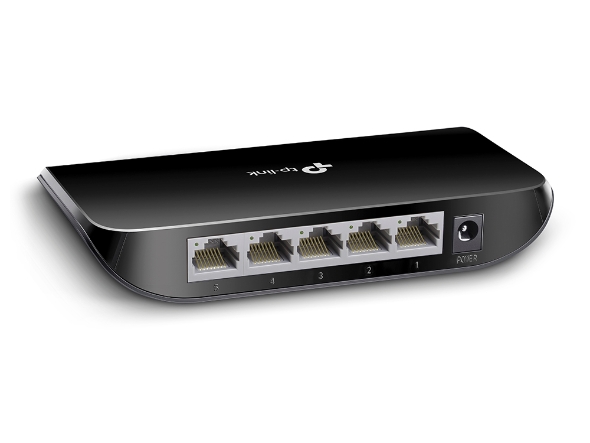

| Interface | 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions ( W x D x H ) | 5.5×3.5×0.9 in. (140×88×23 mm) |
| Max Power Consumption | 3.1W (220V/50Hz) |
| Max Heat Dissipation | 10.57 Btu/hr |
SOFTWARE FEATURES |
|
|---|---|
| Transmission Method | Store and Forward |
| Advanced Functions | Green Technology
802.3x Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHs |
| Package Contents | 5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 5 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 7.44 Mpps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| Layer | Layer 2 |
| Switching Capacity | 10 Gbps |
