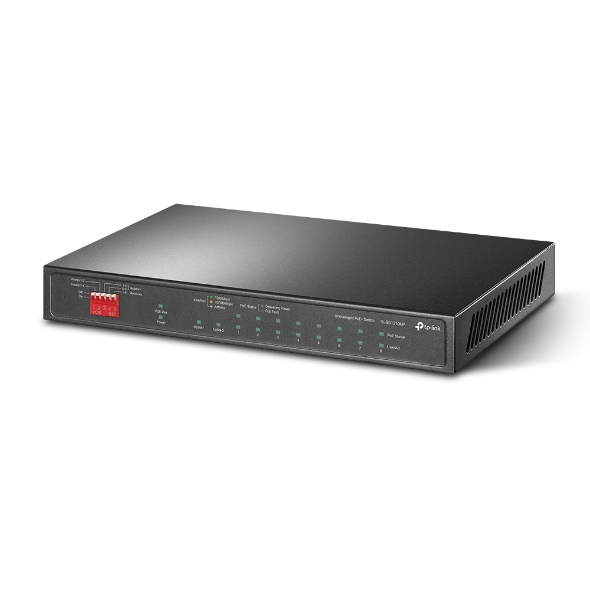

TL-SG1210MP
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network

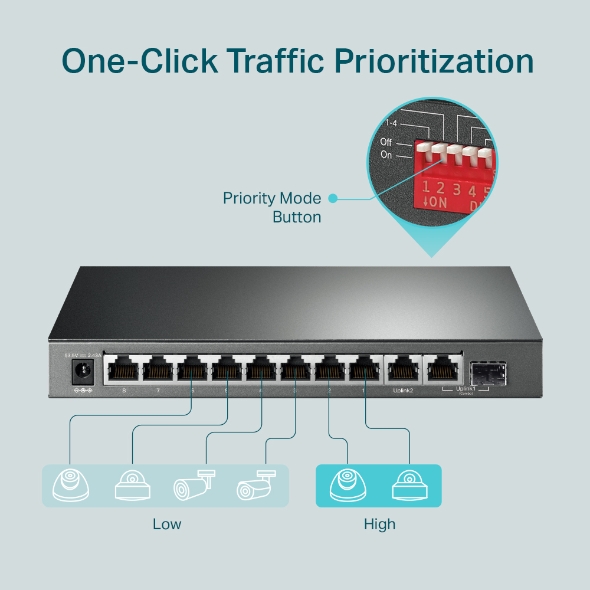

- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
HARDWARE FEATURES |
|
|---|---|

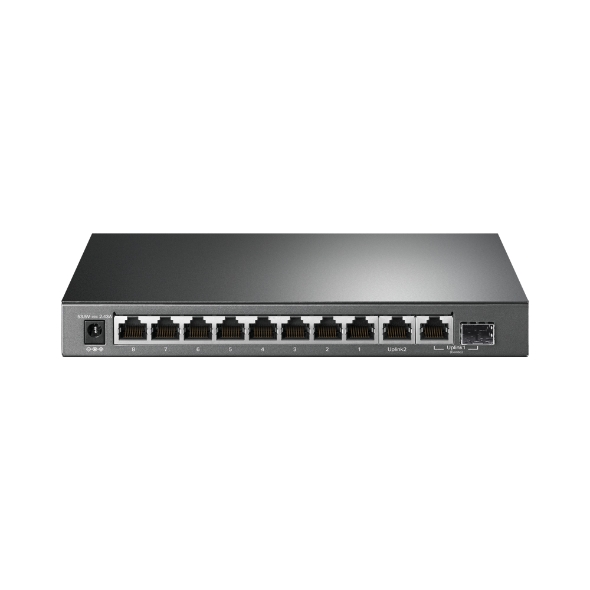

| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant
PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected)
78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected)
266.42 BTU/h (with 63W PD connected) |
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 14.88 Mpps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Support POE |
| POE Budget | from 100 t0 150 W |
| Layer | Layer 2 |
| Switching Capacity | 20 Gbps |
| Uplink Ports | 2 |
| UpLinks Speed | 1G |
