TL-SG3210
- Full Gigabit Ports: 8× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
TL-SG3210
TL-SG3210 HARDWARE FEATURES |
|
|---|---|

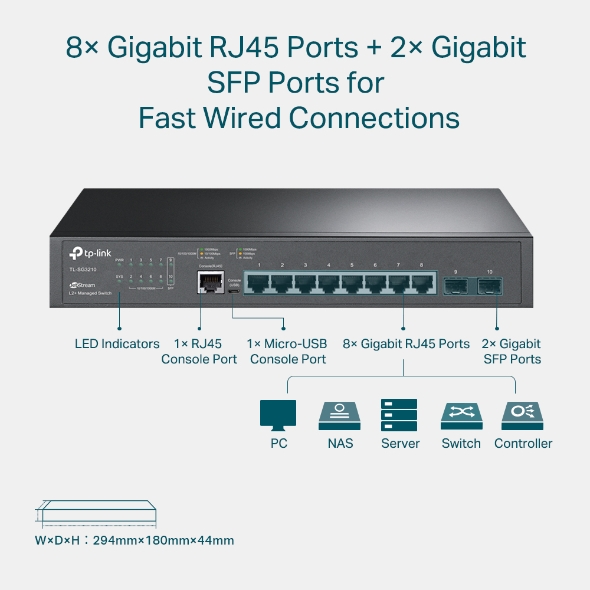

| Interface | • 8× 10/100/1000 Mbps RJ45 Ports
• 2× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | Finless |
| Power Supply | 100-240 V AC~50/60 Hz |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Mounting | Rack Mountable / Desktop |
| Max Power Consumption | 6.84 W (220 V/50 Hz) |
| Max Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.89 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
SOFTWARE FEATURES |
|
|---|---|
| Quality of Service | • 8 priority queues
• 802.1p Cos/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 14.88 Mpps |
| Management Platform | Local Web GUI, Omada App, Omada SDN Controller |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Layer | Layer 2+ |
| Switching Capacity | 20 Gbps |
| Uplink Ports | 2 |
| Uplinks Speed | 1G |
