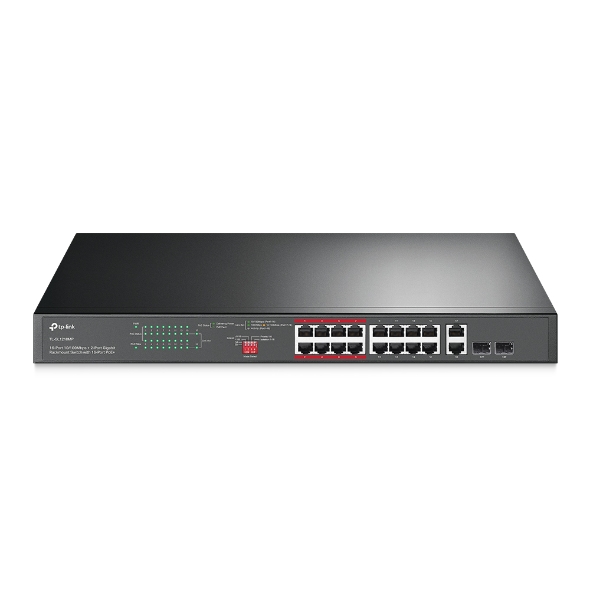

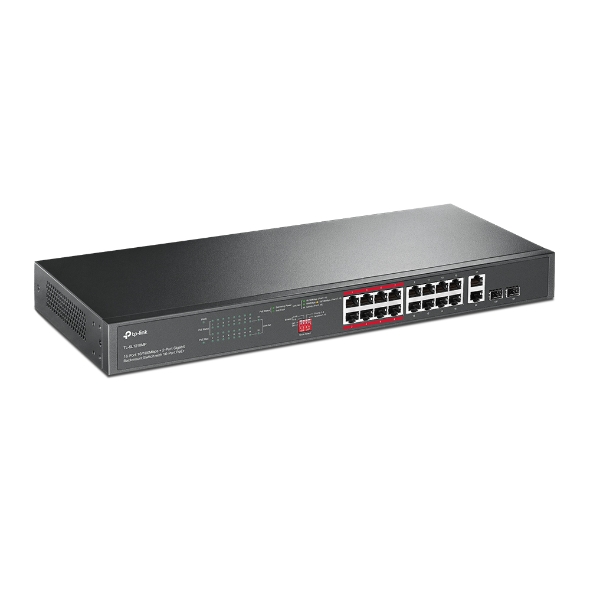

TL-SL1218MP
HARDWARE FEATURES |
|
|---|---|
| Interface | • 16 PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports • 2× Combo Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |

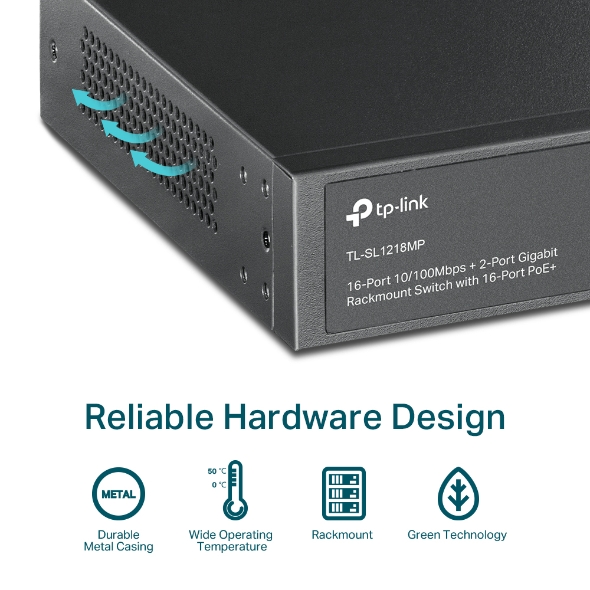

| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |

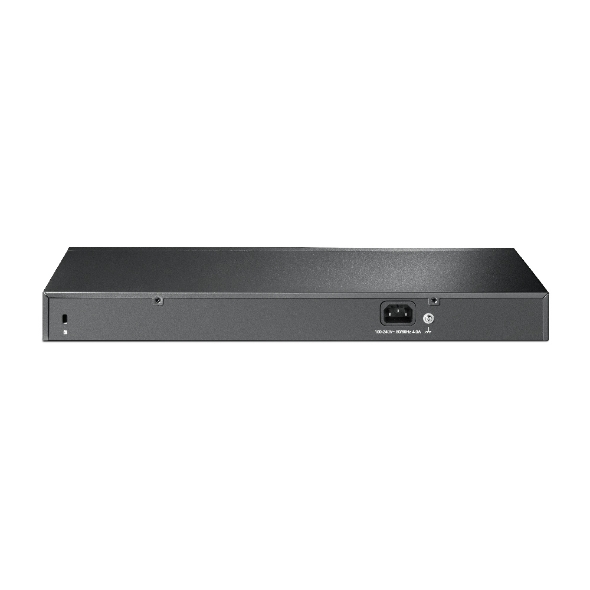

| Power Supply | 100–240V AC, 50/60 Hz |

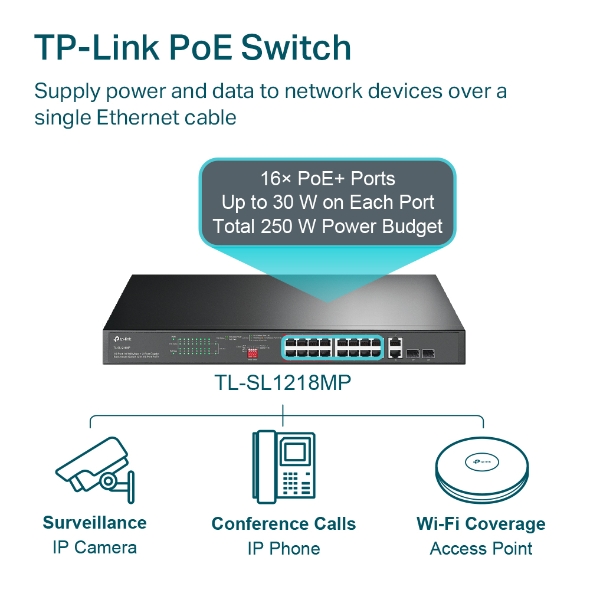

| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 14.97 W (220/50Hz. no PD connected)
• 285.8 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation | • 51.05 BTU/h (no PD connected)
• 974.58 BTU/h (with 250 W PD connected) |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs

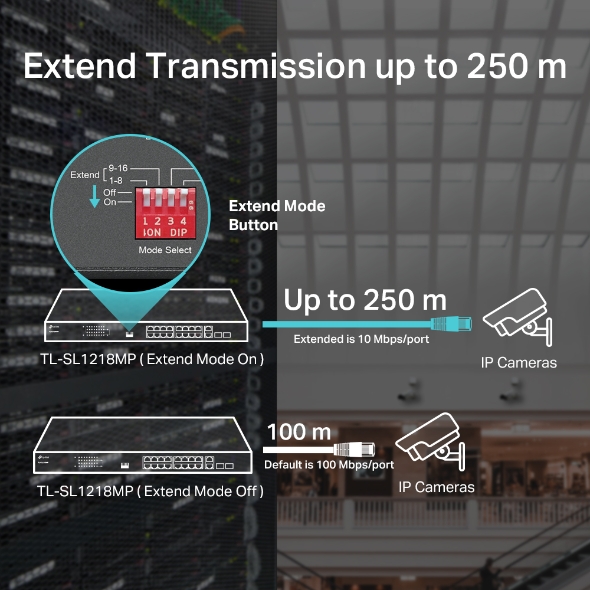

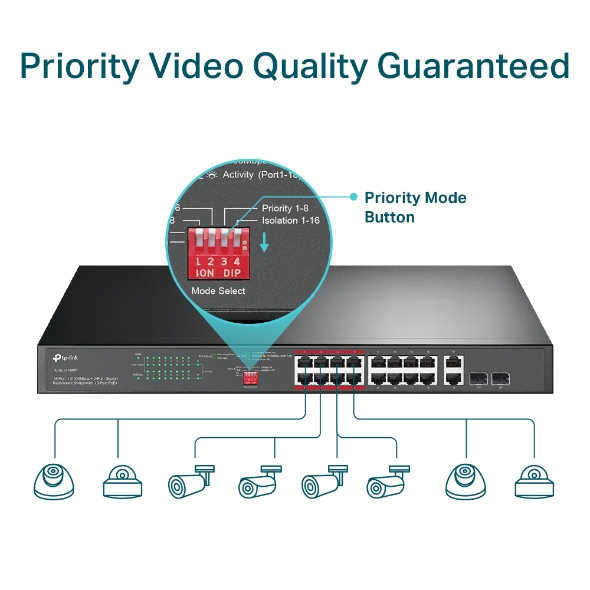

• Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
Additional information
| Access Ports | 16 |
|---|---|
| Access Ports Speed | 100 Mbps (RJ-45) |
| Forwarding Rate (Throughput) | 7.44 Mpps |

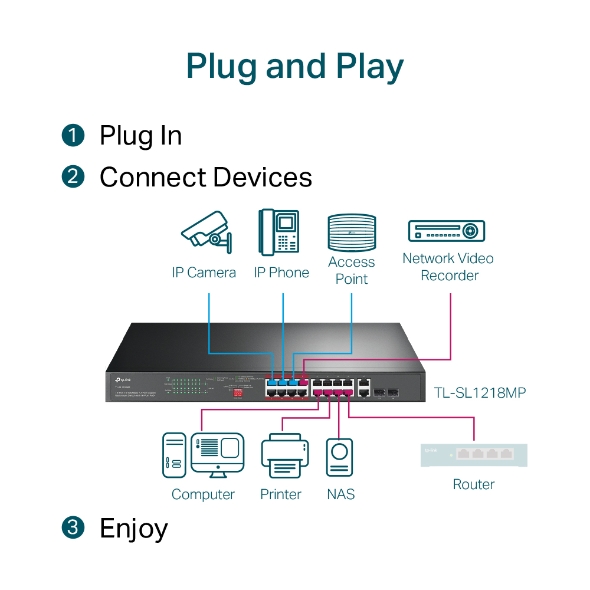

| Management Platform | Plug-and-play |
| Mounting Options | Rack Mount |
| POE | Support POE |
| POE Budget | from 150 to 250 W |
| Layer | Layer 2 |
| Switching Capacity | 10 Gbps |
| Uplink Ports | 2 |
| UpLinks Speed | 1G |
