TL-SM5110-LR
PACKAGE CONTENTS |
|
|---|---|
| Package Contents | • 10G SFP+ Module TL-SM5110-LR
• Installation Guide |
HARDWARE FEATURES |
|
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
|---|---|

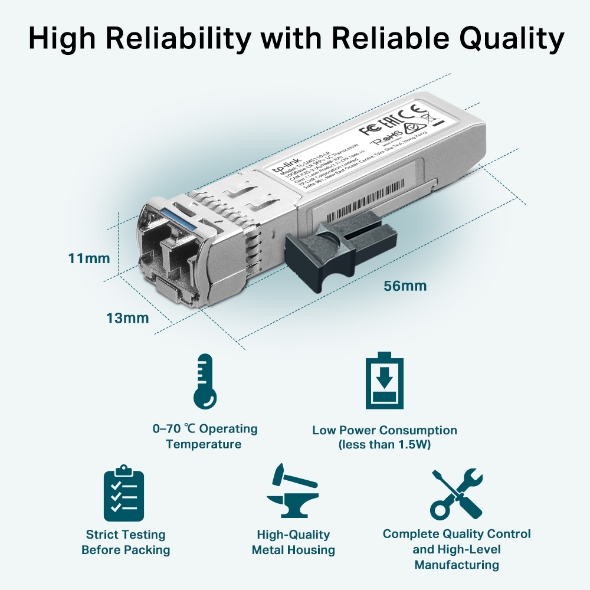

| Dimensions (W*D*H) | 2.2*0.5*0.4 in (56.7*13.9*10.35 mm) |
Transceiver |
|
|---|---|
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |

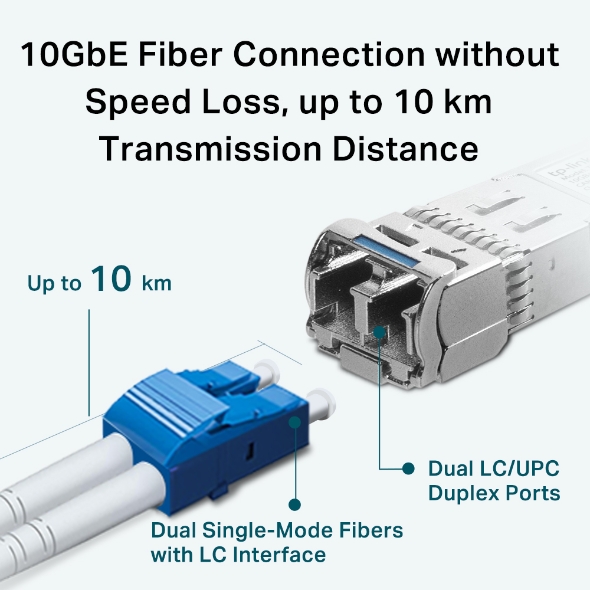

| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
