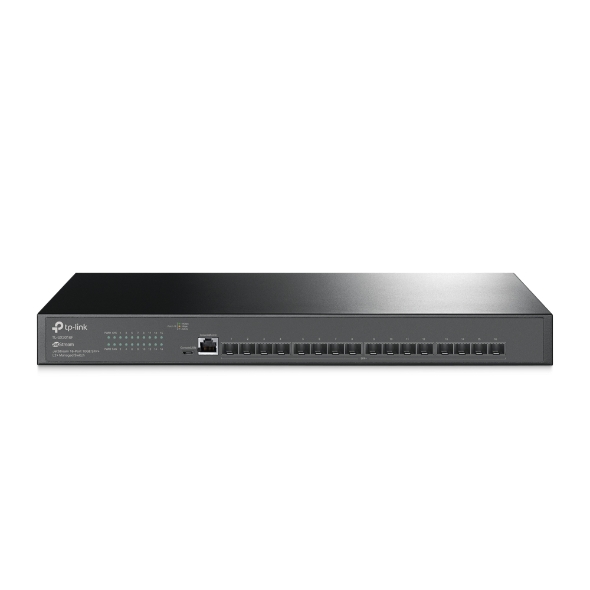

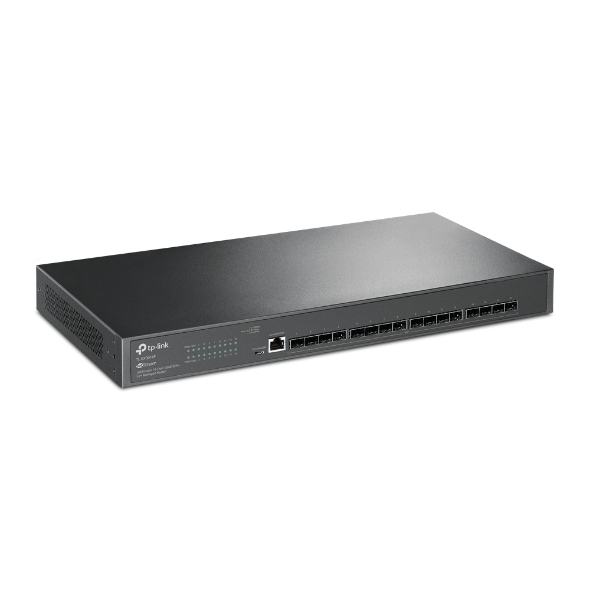

TP Link (TL-SX3016F) Jetstream 16-Port 10GE SFP+ L2+ Managed Switch

Availability:

Call for Price

JetStream 16-Port 10GE SFP+ L2+ Managed Switch _

Robust Security Strategies: Helps protect LAN area investment

TL-SX3016F

16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more.
Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more.

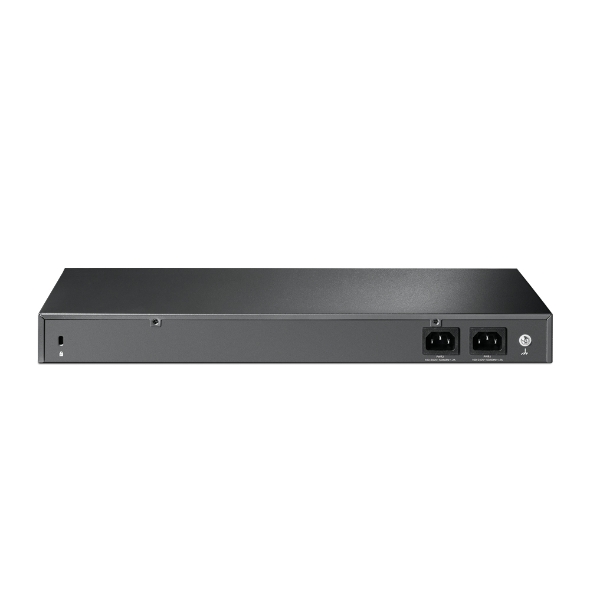

Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

TL-SX3016F

HARDWARE FEATURES
Interface	• 16× 10GE SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port
Fan Quantity	1
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	32.74 W (220 V / 50 Hz)
Max Heat Dissipation	111.71 BTU/hr. (220 V / 50 Hz)

SOFTWARE FEATURES
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling – SP (Strict Priority) – WRR (Weighted Round Robin) – SP+WRR • Bandwidth Control – Port/Flow based Rating Limiting • Smoother Performance • Action for Flows – Mirror (to supported interface) – Redirect (to supported interface) – Rate Limit – QoS Remark

Access Ports	16
Access Ports Speed	10G SFP+
Forwarding Rate (Throughput)	240 Mpps
Management Platform	Command line interface (CLI), Local Web GUI, Omada App, Omada SDN Controller
Mounting Options	Rack Mount
POE	Not Support POE
Layer	Layer 2+
Switching Capacity	320 Gbps
