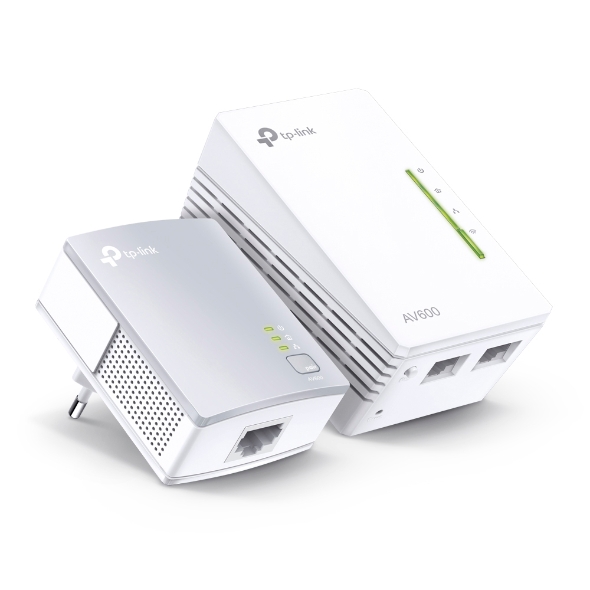

TL-WPA4220
HARDWARE FEATURES |
|
|---|---|
| Transmission Speeds | Powerline: up to 600 Mbps
Ethernet: 10/100 Mbps |
| Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Compatibility | Compatible with all HomePlug AV & AV2 standard powerline adapters |

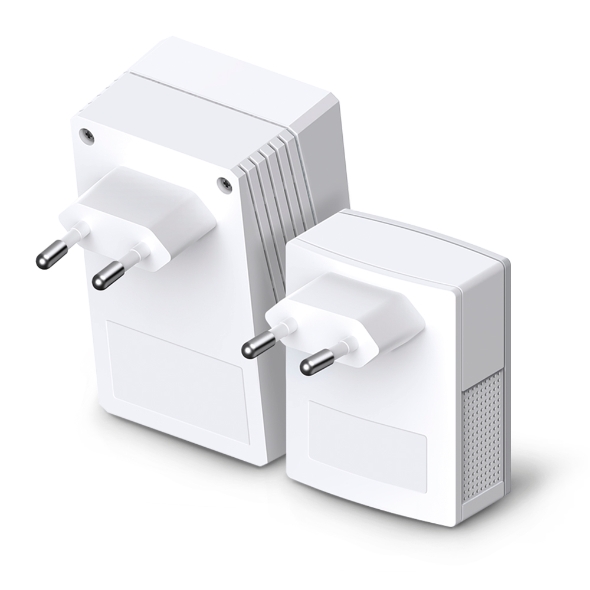

| Plug Type | EU |

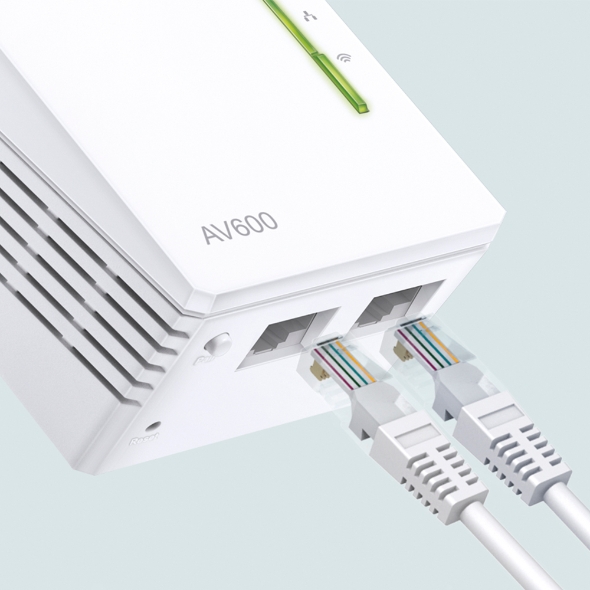

| Interface | TL-WPA4220: 2 Ethernet Ports
TL-PA4010: 1 Ethernet Port |
| Button | Pair, Reset, Wi-Fi Clone |
| Power Consumption | TL-WPA4220: Maximum: 5.6W, Typical: 5.2W
TL-PA4010: Maximum: 2.6W, Typical: 2.3W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | TL-WPA4220: 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm)
TL-PA4010: 2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
WIRELESS FEATURES |
|
|---|---|
| Wireless Security | WPA-PSK / WPA2-PSK, WEP Encrptions |
SOFTWARE FEATURES |
|
|---|---|
| Management | tpPLC-Scan the QR code to download TP-Link tpPLC App.
Or download new tpPLC Utility on PCs: www.tp-link.com. |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Encryption
Wireless Security:WPA-PSK / WPA2-PSK, WEP Encrptions |
OTHERS |
|
|---|---|
| Certification | CE, RoHS |
| Package Contents | AV600 Powerline Wi-Fi Kit: TL-WPA4220 & TL-PA4010
2× Ethernet Cables 1× Quick Installation Guide |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Antenna Configuration | Internal Omni-directional |
|---|---|
| Management Platform | Local Web GUI, TP-Link Cloud, TP-Link Tether App |
| Max Data Rate | 300 Mbps (2.4 GHz), 600 Mbps (Powerline) |
| MIMO Capabilities | 2×2 |
| Mounting Options | wall mount |
| POE | Not Support POE |
| Ports | 2 Ports |
| Ports Speed | 100 Mbps |
| Security Standards | WPA2 |
| Wifi | WIFI 4 |
| Wireless Bands | 2.4 GHz |
