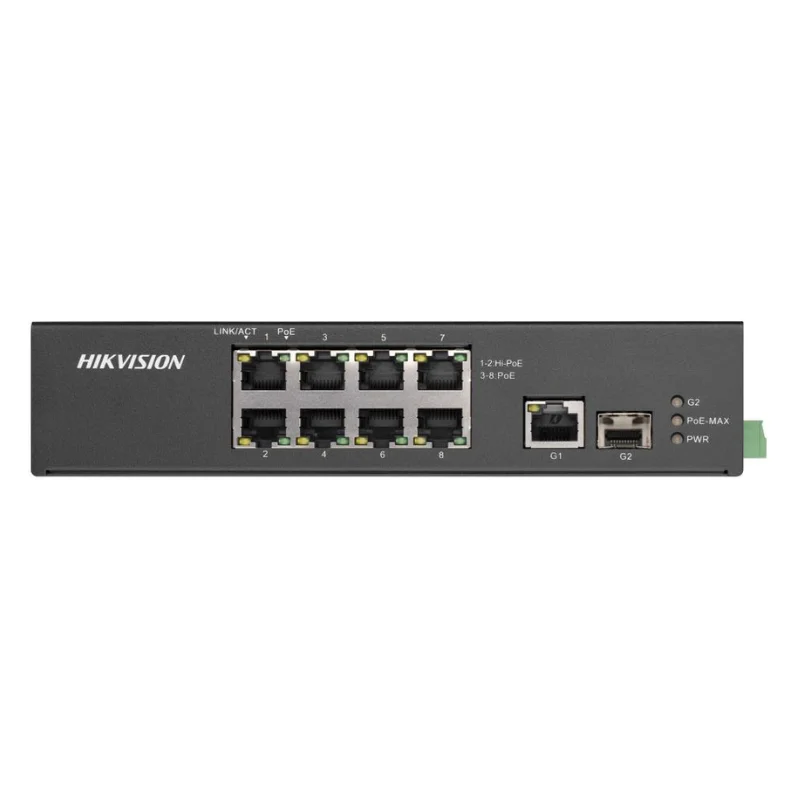

Hikvision DS-3T0310HP-E/HS – Description
8 Port Fast Ethernet Unmanaged Industrial PoE Switch
The Hikvision DS-3T0310HP-E/HS 8 Port Fast Ethernet Unmanaged Harsh PoE Switch is a reliable networking solution designed for surveillance systems, IP cameras, and industrial network environments. Combining PoE technology, long-range transmission, and a durable metal housing, this switch delivers efficient connectivity and stable performance in demanding conditions. Its unmanaged design makes installation straightforward, while advanced network features improve security and device management.
8-Port PoE Connectivity:
This Hikvision PoE switch features 6 × 10/100 Mbps PoE ports, 2 × Hi-PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port. The two Hi-PoE ports support IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt standards, providing up to 90W per port. The remaining six PoE ports support IEEE 802.3af and IEEE 802.3at, with a maximum output of 30W per port.
High PoE Power Delivery:
The DS-3T0310HP-E/HS offers a 110W PoE power budget, making it suitable for powering compatible surveillance cameras and network devices through Ethernet cables. Hi-PoE ports can provide up to 90W individually, supporting devices with higher power requirements. PoE power management helps optimize power delivery and supports efficient operation across connected equipment.
Long-Range PoE Transmission:
Designed for extended surveillance installations, this industrial PoE switch supports long-range transmission of up to 300 meters through ports 7 and 8 when Extend mode is enabled. This feature helps connect cameras positioned far from the networking equipment, reducing the need for additional network infrastructure in suitable installation environments.
PoE Watchdog and Port Isolation:
The built-in PoE watchdog automatically detects and restarts unresponsive cameras connected to ports 1 to 8. This function helps maintain camera availability and reduces the need for manual intervention. Port isolation is also supported on ports 1 to 8, helping improve network security by separating connected devices and limiting unwanted communication between ports.
Industrial-Grade Protection:
The Hikvision DS-3T0310HP-E/HS is built with a high-strength metal housing and a fan-free design for reliable operation. It supports a wide operating temperature range from -30°C to 65°C, making it suitable for harsh industrial and outdoor-access environments when installed according to the product’s requirements. Its 6KV surge protection for PoE ports adds an extra layer of protection against electrical surges.
Reliable Network Performance:
With a switching capacity of 5.6 Gbps and a packet forwarding rate of 4.1664 Mpps, this unmanaged PoE switch provides efficient data transmission for connected network devices. Store-and-forward switching, a 4K MAC address table, and wire-speed forwarding contribute to dependable network communication. The switch supports IEEE 802.3, 802.3u, 802.3x, 802.3z, and 802.3ab standards.
Flexible Working Modes:
This Hikvision industrial switch 8 port supports Standard, Extend, Isolation, and PoE Watchdog modes. These working modes allow users to select suitable network behavior depending on their surveillance or industrial networking requirements. The unmanaged configuration helps simplify deployment without requiring complex network management procedures.
Compact and Fan-Free Design:
Measuring 197 × 114.2 × 42.2 mm and weighing 0.565 kg net, the DS-3T0310HP-E/HS offers a compact design for networking installations. Its fan-free construction reduces mechanical noise and eliminates the need for a cooling fan, while the metal shell provides a durable enclosure for professional environments.
Suitable Applications:
The Hikvision DS-3T0310HP-E/HS is suitable for IP surveillance systems, industrial network installations, security camera deployments, and environments requiring long-distance PoE connectivity. Its high-power PoE ports, surge protection, PoE watchdog, and extended operating temperature range make it a practical option for compatible network devices in demanding locations.
Why Choose Hikvision DS-3T0310HP-E/HS?
Choose the Hikvision DS-3T0310HP-E/HS for a combination of PoE connectivity, high-power output, long-range transmission, and industrial durability. With support for up to 90W on its Hi-PoE ports, a 110W PoE budget, 300m long-range transmission, and PoE watchdog functionality, this switch is designed to support dependable network and surveillance deployments.
