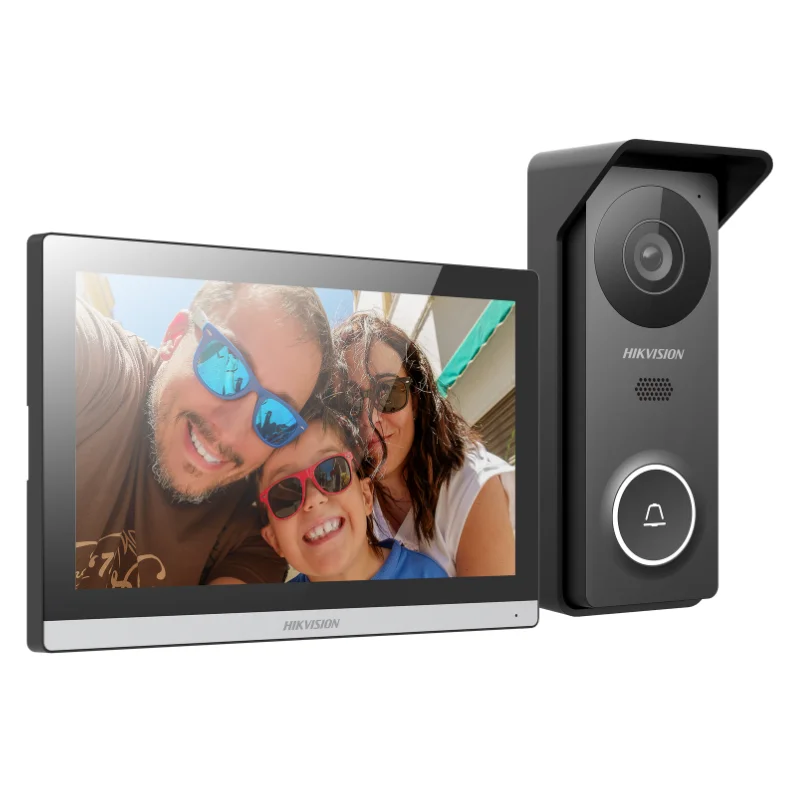

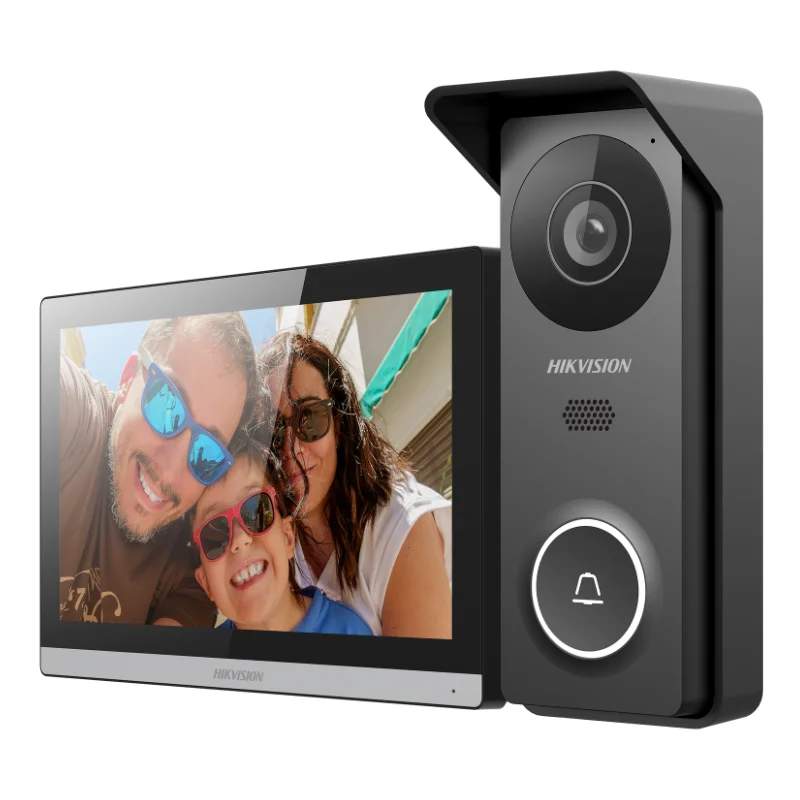

Hikvision DS-KIS313-P(B) – Description
Hybrid HD Video Intercom Kit
The Hikvision DS-KIS313-P(B) is a hybrid HD video intercom kit designed for homes, villas, apartments, offices, and other properties requiring convenient door communication and access control. It combines a four-wire HD TVI door station with a modern 7-inch touchscreen indoor monitor, providing clear video, two-way audio, and easy door unlocking.
HD Video Door Station:
The outdoor door station delivers HD TVI video quality with a stream resolution of 1280 × 720 at 60 fps. Its wide-angle camera provides a 117° horizontal, 70° vertical, and 141° diagonal field of view, allowing users to see visitors clearly. Built-in IR illumination provides visibility at distances of up to 3 meters.
7-Inch Touchscreen Monitor:
The indoor station features a 7-inch colorful TFT display with a resolution of 1024 × 600. Hikvision intercom Its capacitive touchscreen provides convenient and intuitive operation, while the 160° horizontal and 130° vertical viewing angles make the screen easy to view from different positions.
Two-Way Audio:
The Hikvision intercom kit includes a built-in omnidirectional microphone and loudspeaker in both the door and indoor stations. The indoor monitor supports G.711U and G.711A audio compression, with noise suppression and echo cancellation for clearer conversations between the visitor and the resident.
Easy Plug-and-Play Installation:
The DS-KIS313-P(B) intercom is designed for straightforward installation using a four-wire interface. The door station supports surface mounting and operates on 12 VDC power, while its compact dimensions of 55 × 145 × 24 mm make it suitable for installations where space is limited.
Door Unlocking & Access Control:
The door station features one relay output for lock control, supporting a maximum load of 30 VDC/1 A. This allows the intercom system to control an electric door lock and provide convenient visitor access directly from the indoor station.
Expandable Intercom System:
The Hikvision intercom supports up to 3 linked indoor stations and 1 sub-door station. The indoor monitor can also connect with up to 2 indoor extensions, 2 doorphones, and 1 analog camera, providing flexibility for larger residential or commercial installations.
Wi-Fi & TF Card Support:
The 7-inch indoor station supports Wi-Fi 802.11 b/g/n, enabling convenient wireless connectivity. It also supports a TF card with a capacity of up to 128 GB, providing additional storage capability for supported functions.
Alarm & Security Interfaces:
The indoor station includes 2 alarm inputs and four-wire interfaces for system connectivity. These interfaces allow the intercom system to be integrated into suitable security and monitoring applications, making it more versatile than a basic video doorbell.
Compact Modern Design:
The indoor monitor measures 175 × 113.5 × 18.1 mm and weighs approximately 260 g, while the door station weighs approximately 200 g. Both units feature compact designs suitable for residential and commercial installations.
