Hikvision DS-KIS607-S – Description
IP Video Intercom Kit
Smart IP Video Intercom System:

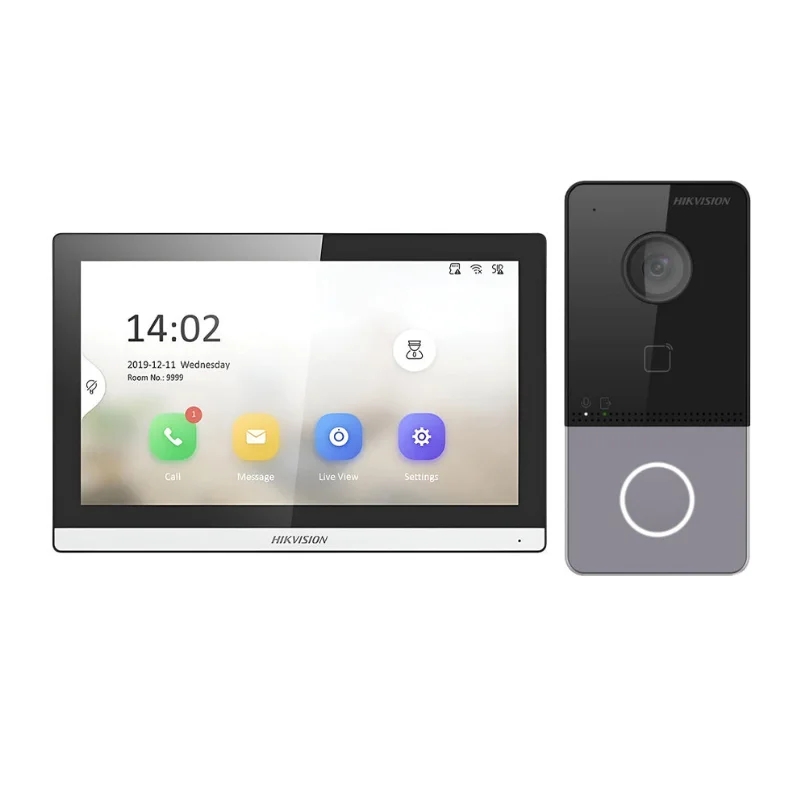

The Hikvision DS-KIS607-S IP Video Intercom Kit is a complete residential and small-business video door entry solution designed for convenient, secure, and reliable access control. The kit combines the DS-KV6113-PE1(C) outdoor door station, DS-KH6350-WTE1 indoor station, PoE switch, mounting accessory, cards, key fobs, and power supply in one integrated package.
Hik-Connect Mobile Control:
With Hik-Connect APP mobile control, users can conveniently manage and monitor the intercom system remotely. The Hikvision intercom supports communication between the door station and indoor monitor, helping users answer visitors and manage door access without needing to be physically near the entrance.
2MP HD Door Station Camera:
The outdoor door station of DS-KIS607-S features a 2MP HD camera with a maximum main-stream resolution of 1920 × 1080p. Its wide 131° horizontal and 78° vertical field of view provides broad visitor coverage, while 120 dB WDR helps maintain clear images in challenging lighting conditions.
Night Vision and Motion Detection:
The DS-KV6113-PE1(C) includes IR illumination up to 3 meters, allowing the camera to provide visibility in low-light environments. Built-in motion detection adds another useful monitoring feature, helping identify activity around the entrance.
Clear Two-Way Audio:
The Hikvision intercom provides convenient two-way voice communication through a built-in omnidirectional microphone and speaker. Noise suppression and echo cancellation improve audio clarity, while adjustable volume provides flexible communication. Audio is compressed using G.711 U at 64 Kbps.
Secure Door Access:
The door station provides one physical call button for straightforward visitor calling and includes a relay for lock control. It supports up to 30 VDC / 2 A lock-control output, along with an exit button and door contact input for practical entrance management.

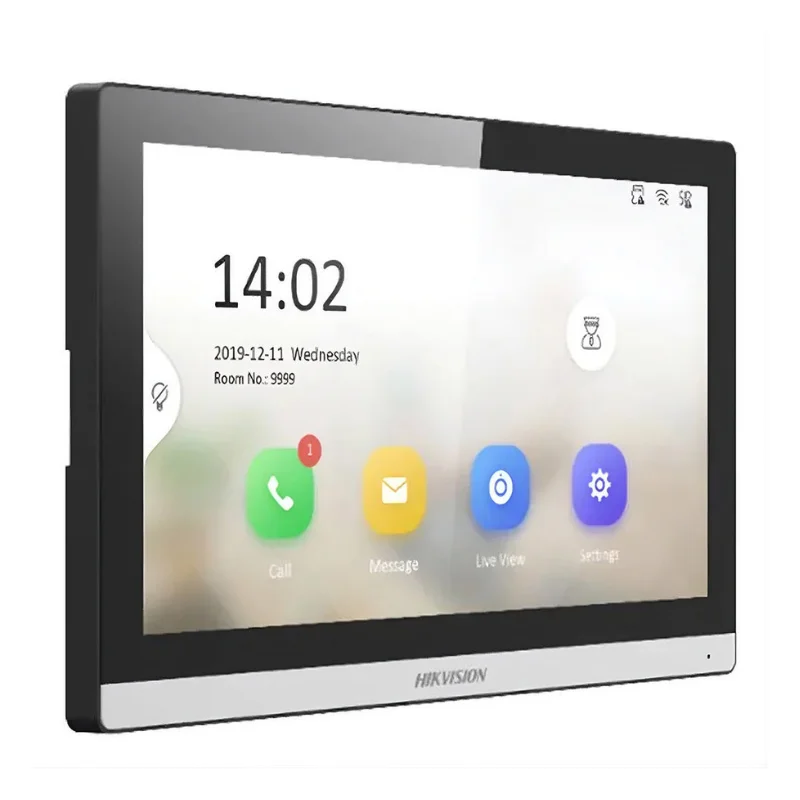

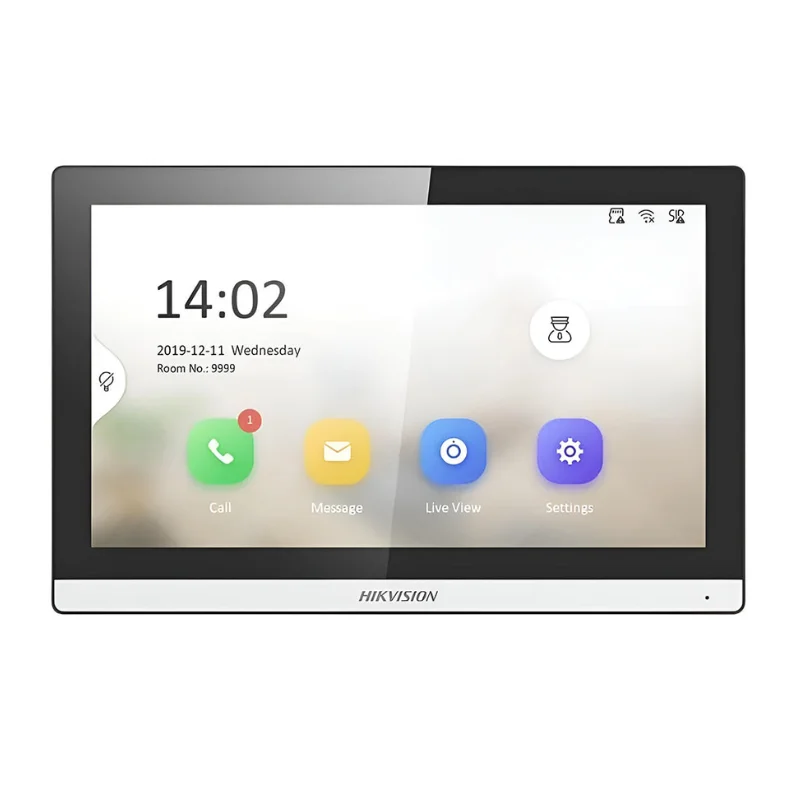

7-Inch Touchscreen Indoor Station:
The included DS-KH6350-WTE1 indoor station features a 7-inch colorful TFT capacitive touchscreen with 1024 × 600 resolution. Its user-friendly touch interface makes it easy to answer calls, communicate with visitors, monitor the entrance, and manage connected intercom functions.
Recording and TF Card Storage:
The indoor station supports a TF card up to 128 GB, allowing users to store messages and captured pictures. It also provides a notice capacity of 200 and supports up to 16 linked indoor extensions, making the system suitable for larger residential or small commercial installations.
PoE and Network Connectivity:
Both stations support standard IEEE 802.3af PoE, helping simplify installation by delivering network connectivity and power through compatible Ethernet infrastructure. The indoor station also supports 2.4 GHz Wi-Fi with IEEE 802.11b/g/n standards, while network protocols include TCP/IP, SIP, and RTSP.
Outdoor Protection and Installation:
Designed for outdoor use, the door station features an IP65 protection rating and supports surface mounting. It operates from -40°C to 55°C, making it suitable for demanding environmental conditions. The compact 138 × 65 × 27 mm design helps maintain a neat entrance installation.

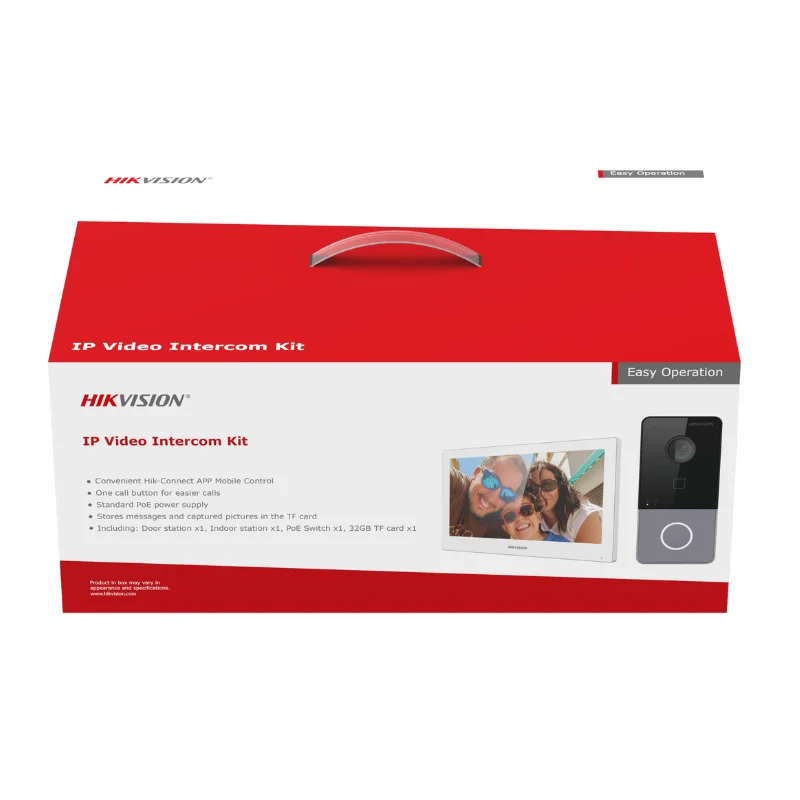

Complete Intercom Kit:
The Hikvision DS-KIS607-S includes DS-KV6113-PE1(C) ×1, DS-KH6350-WTE1 White ×1, 4-port standard PoE switch ×1, DS-KABV6113-RS ×1, administrator card ×1, key fobs ×5, and PSU ×1. This complete package provides the essential components needed for a practical IP video intercom installation.
