Hikvision DS-KIS902-S – Description
IP Video Intercom Kit
Advanced IP Video Intercom System:

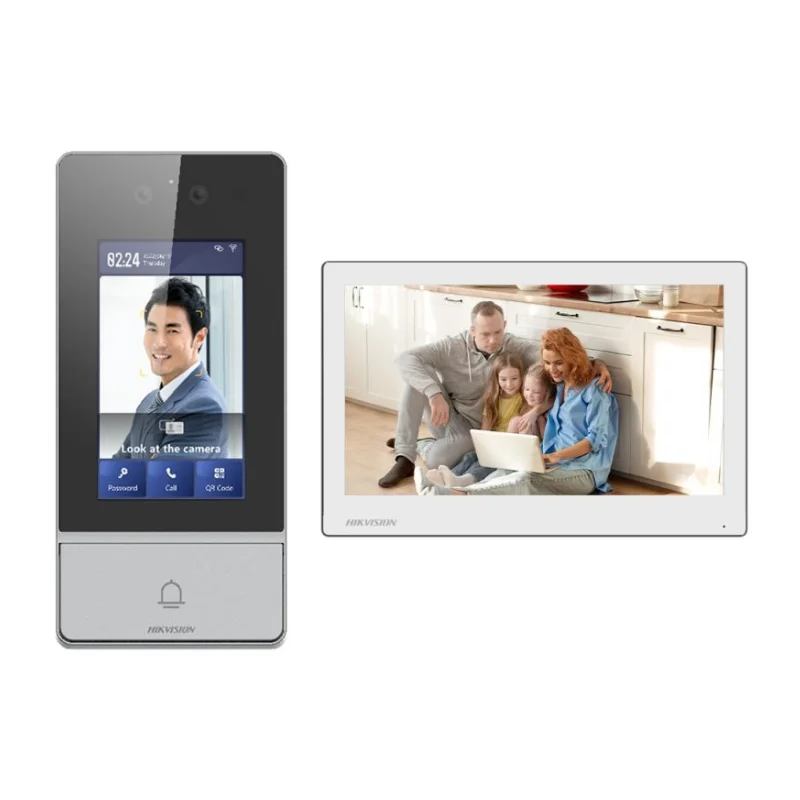

The Hikvision DS-KIS902-S IP Video Intercom Kit is a professional IP video door entry solution designed for homes, villas, offices, apartments, and commercial properties. It combines a feature-rich outdoor door station with a 7-inch indoor monitor, standard PoE connectivity, and convenient Hik-Connect mobile control.
Multiple Authentication Methods:
The DS-KIS902-S provides flexible and secure access control through multiple authentication methods. Users can unlock the door using face recognition, PIN code, cards, QR codes, and Bluetooth. The system supports up to 10,000 faces, 20,000 users, and 100,000 cards, making it suitable for demanding access management applications.
Intelligent Face Recognition:
The outdoor station features fast and accurate face recognition with a recognition distance of 0.3 to 2 meters, accuracy of ≥99%, and recognition speed of less than 0.2 seconds per person. This provides fast, convenient, and contactless authentication for authorized users.
High-Quality Outdoor Video:
The door station features dual 2 MP lenses and supports main-stream resolutions up to 1920 × 1080p. With 120 dB WDR, the camera can maintain clearer images in challenging lighting conditions. Its 88° horizontal and 44° vertical field of view provides useful coverage around the entrance.
Night Vision and Video Compression:
Built-in IR illumination up to 3 meters supports visibility in low-light environments. The Hikvision intercom supports H.264, H.265, and MJPEG video compression, helping optimize video storage and network bandwidth while maintaining reliable image quality.
Clear Two-Way Audio:
The Hikvision intercom DS-KIS902-S supports convenient hands-free communication through a built-in omnidirectional microphone and loudspeaker. Noise suppression and echo cancellation improve audio clarity, while support for G.711, G.726, AAC, OPUS, and other audio codecs provides flexible audio communication.
7-Inch Touchscreen Indoor Station:
The included 7-inch indoor station features a colorful TFT display with 1024 × 600 resolution and a responsive capacitive touchscreen. It provides an easy-to-use interface for viewing visitors, communicating with the door station, managing calls, and controlling connected functions.
Hik-Connect Mobile Control:
With Hik-Connect mobile connectivity, users can conveniently manage the intercom system from a compatible mobile device. This adds flexibility for monitoring and communication, allowing users to stay connected with their entrance system even when away from the indoor monitor.
PoE Installation and Connectivity:
The Hikvision intercom supports standard IEEE 802.3af PoE, simplifying installation by allowing power and network communication through a single Ethernet connection. The package also includes a 4-port standard PoE switch, making the complete system easier to deploy.
Outdoor Protection:
The door station is designed for outdoor installation and features IP65 weather protection and IK08 impact protection. Its operating temperature range of -40°C to 60°C allows reliable operation in demanding environmental conditions. Surface mounting provides a straightforward installation method.
Expandable Indoor Station:
The indoor station supports up to 16 linked indoor extensions, making the Video Intercom suitable for larger properties and multi-room applications. It also includes 8 alarm inputs, 2 alarm outputs, RS-485, Ethernet, and a TF card slot supporting up to 128 GB.
Complete Intercom Package:
The Hikvision DS-KIS902-S kit includes DS-KV9503-WBE1 outdoor door station, DS-KH6350-WTE1 white indoor station, 4-port standard PoE switch, DS-KABV9503-RS, administrator card, five key fobs, and power supply. This provides the essential components for a complete IP video intercom installation.
