Hikvision DS-KIS613-S – Description
IP Video Intercom Kit

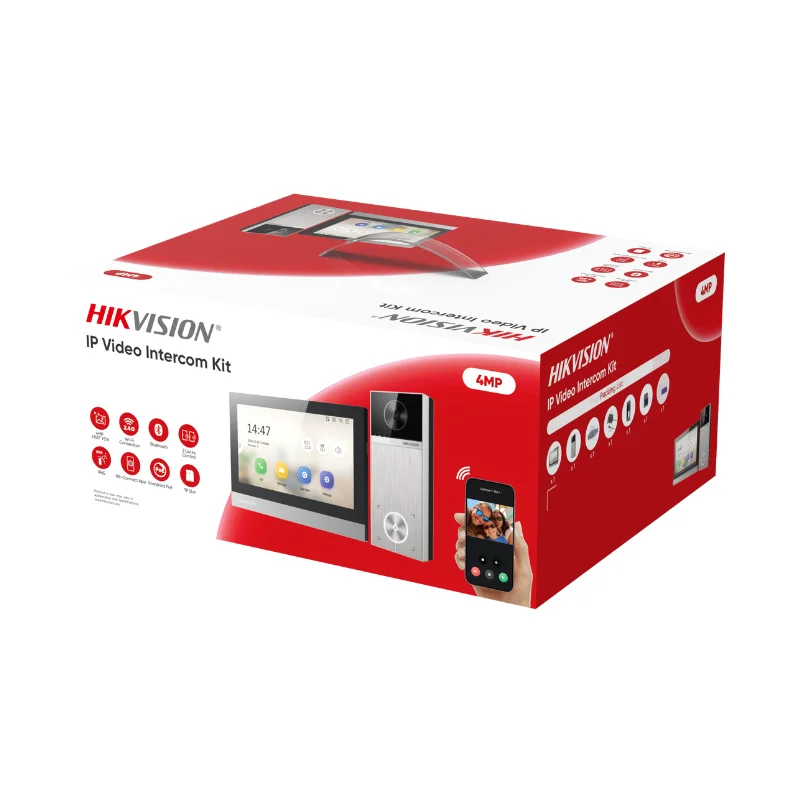

The Hikvision DS-KIS613-S IP Video Intercom Kit is a complete smart video intercom solution designed for residential, villa, office, and commercial entrance security. It combines a high-resolution IP door station with an advanced indoor monitor, providing clear two-way communication, visitor identification, remote door control, and convenient access management. The kit supports standard PoE for simplified installation and includes the main components required to build a reliable intercom system.
4MP Wide-Angle Door Station:
The Hikvision DS-KV6114-MWBE1 door station delivers 4MP video resolution up to 2688 × 1520 pixels, providing detailed images for visitor identification. Its 150° horizontal and 75° vertical field of view covers a wide entrance area, reducing blind spots. IR illumination supports visibility at night up to 3 meters, while H.264, H.265, and MJPEG compression provide flexible video management.
Multiple Access and Unlocking Methods:
The DS-KIS613-S Video Intercom provides several convenient authentication options. Users can unlock the connected doors using an M1 card, Bluetooth, Hik-Connect mobile application, or the indoor station. The door station supports up to 2,000 users and 6,000 cards, making it suitable for homes, offices, apartments, and other properties requiring multiple authorized users.
Two-Lock Control:
A major advantage of this Hikvision IP intercom kit is its 2-lock control capability. The door station features two relay outputs supporting up to 30 VDC, 2 A, allowing it to manage two locking devices. This makes the system suitable for entrances that require separate control of a main door, gate, secondary entrance, or other access point.

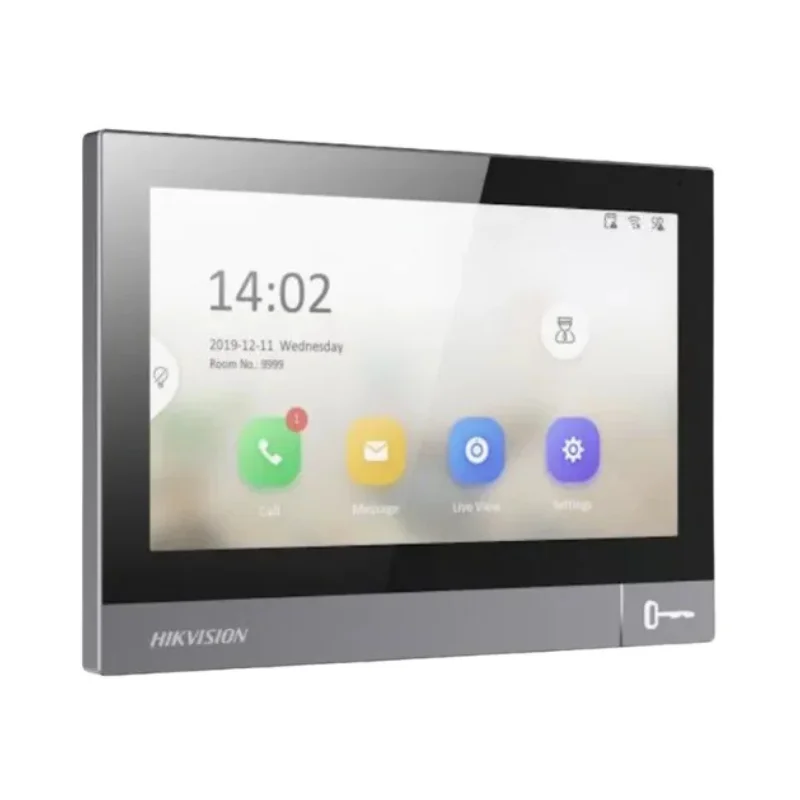

Smart Indoor Station:
The included DS-KH8380-WTE1 indoor station provides convenient control and communication with visitors. It features built-in microphone and speaker technology with noise suppression and echo cancellation for clearer conversations. The indoor station also supports video recording and playback, allowing users to review stored intercom footage and captured events.
Wi-Fi 6 and Network Connectivity:
The door station supports 2.4 GHz Wi-Fi 6 with IEEE 802.11b/g/n/ax compatibility, while wired connectivity is provided through a 10/100 Mbps RJ-45 interface. The Hikvision intercom supports TCP/IP, SIP, RTSP, and ONVIF protocols, providing compatibility with suitable network and security environments.
Smart Detection Features:
The DS-KV6114-MWBE1 includes useful smart audio detection capabilities. It can detect sounds such as screaming, glass breaking, crying, and gunshots, with a recommended detection distance of approximately 3 meters. Motion detection is also supported, adding another layer of awareness around the entrance.
Durable Outdoor Design:
Built for outdoor installation, the door station features an IP65 protection rating to help protect against dust and water exposure. It operates across a wide temperature range from -40°C to 60°C, making it suitable for demanding environmental conditions. The compact surface-mounted design measures 164 × 69 × 24.7 mm.
Standard PoE Installation:
The Hikvision DS-KIS613-S supports standard PoE, simplifying installation by allowing network connectivity and power to be delivered through a compatible Ethernet connection. The kit includes a 4-port PoE switch and power supply, helping reduce installation complexity and making the complete solution suitable for professional residential and commercial deployments.
Reliable Audio Communication:
The intercom system provides two-way audio through a built-in omnidirectional microphone and loudspeaker. The indoor station supports advanced audio codecs including G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, and G.722.1. Noise suppression and echo cancellation help improve communication quality during visitor calls.
Indoor Station Connectivity:
The DS-KH8380-WTE1 includes a 10/100 Mbps RJ-45 network interface and supports 2.4 GHz wireless networking. It also provides one RS-485 interface, eight alarm inputs, two relay outputs, and TF card support up to 128GB. With power consumption of up to 5W and standard PoE support, it is designed for efficient everyday operation.
Ideal Security Applications:
The Hikvision DS-KIS613-S IP Video Intercom Kit is suitable for villas, private homes, offices, apartment entrances, commercial buildings, and controlled-access areas. Its combination of 4MP video, 150° viewing angle, multiple authentication methods, two-lock control, smart detection, recording, Wi-Fi, PoE, and Hik-Connect makes it a versatile solution for modern entrance security.
