Overview

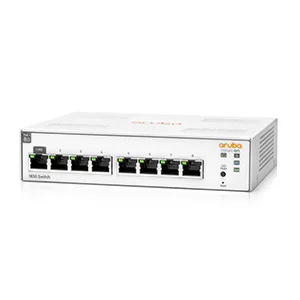

The HPE Networking Instant On 1830 8G Switch (JL810A) is an entry-level, smart-managed Gigabit Ethernet switch built for small and medium businesses that need affordable, reliable Layer 2 connectivity. It offers 8 Gigabit ports with flexible management via the Instant On mobile app or cloud portal.
Key Features
- 8 RJ-45 autosensing 10/100/1000 Gigabit ports
- Fan-less design for silent office operation
- Quick start-up wizard and intuitive web-management interface
- Cable diagnostic tool, port mirroring, and event logging for troubleshooting
- SNMPv1/v2c (read-only) for remote monitoring
- Instant On Limited Lifetime Support with 24×7 phone support for the first 90 days
Technical Specifications
| Specification | Details |
|---|---|
| Model | HPE Networking Instant On Switch 8p Gigabit 1830 (JL810A) |
| Ports | 8x RJ-45 autosensing 10/100/1000 ports |
| PoE | Port 1 accepts IEEE 802.3af Class 3 PD (powered device) input |
| Switching capacity | 16 Gbps |
| Throughput | 11.90 Mpps |
| Latency | 100 Mb: <5.2 µs; 1000 Mb: <2.8 µs |
| MAC address table | 8,000 entries |
| Processor / memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer 1.5 MB |
| Dimensions (D x W x H) | 6.18 x 6.81 x 1.53 in (15.7 x 17.3 x 3.91 cm) |
| Weight | 1.70 lb (0.77 kg) |
| Power | External power adapter (included); 12V-1.0A; max power 8.09W (100-127V) / 8.05W (200-220V) |
| Reliability (MTBF) | 188.2 years |
| Operating environment | 0°C to 40°C, 15-95% relative humidity |
| Management | Instant On Cloud; web browser; SNMP manager |
| Mounting | Table-top, wall (ports up or down), under-table |
| Warranty | Instant On limited lifetime warranty and support |
Product Details
- Part of the HPE Networking Instant On Switch Series 1830 – an entry-level, smart-managed family available in 8-, 24-, and 48-port non-PoE and Class 4 PoE configurations.
- Can also be powered from an upstream PoE switch via Port 1, eliminating the need for an additional power outlet.
