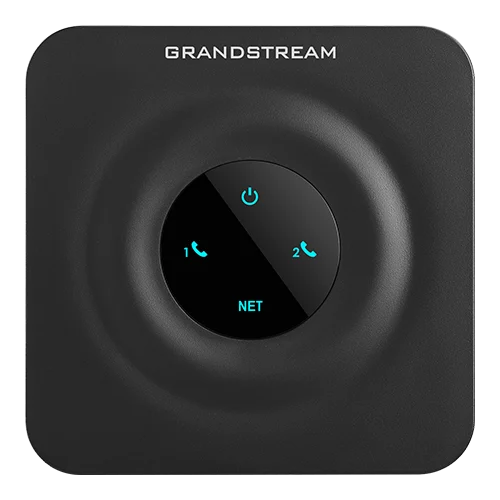

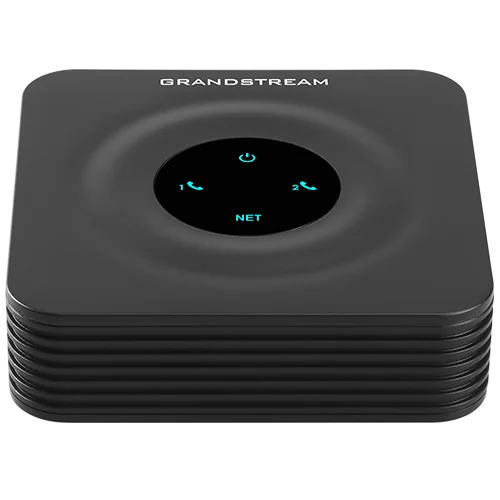

HT802 v2
- Supports 2 SIP profiles through 2 FXS ports and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- LED indicators – POWER, NET, PHONE1, PHONE2
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
| Category | Details |
|---|---|
| Lines | 2 Lines |
| Audio Conferencing | 3-Way Voice Conferencing |

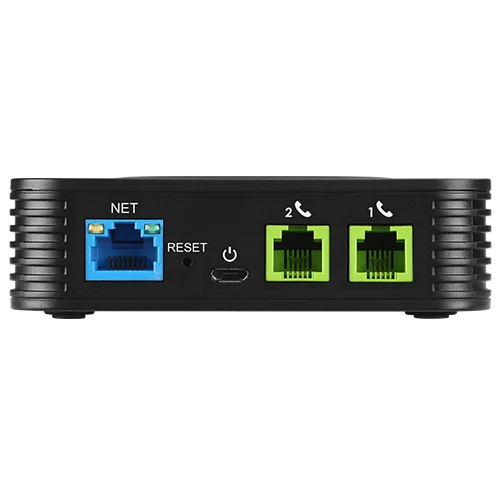

| Telephone Interfaces | Two (2) RJ11 FXS Ports |
| Network Interfaces | One (1) 10/100 Mbps Auto-Sensing Ethernet Port (RJ45) |
| LED Indicators | Power, Net, Phone1, Phone2 |
| Telephony Features | Caller ID Display or Block, Call Waiting, Flash, Blind or Attended Transfer, Call Forward, Call Hold, Do Not Disturb (DND), 3-Way Conference |
| Fax over IP | T.38 Compliant Group 3 Fax Relay up to 14.4 kbps, Auto-switch to G.711 for Fax Pass-through |
Additional information
| Audio / Voice Quality | Standard Voice |
|---|---|
| Concurrent Calls | 2 Concurrent Calls |
| Bluetooth & WIFI | Not Supported |
| Display Type | Non-Display |
| FXO Ports | None |
| FXS Ports | 2 Ports |
| Management Platform | GDMS Networking (Cloud), Local Web GUI |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Ports | 1 Port |
| Ports Speed | 100 Mbps |
| Video Conferencing | Not Supported |
