| Product Type |
Outdoor Wireless Access Point |
| Differentiator |

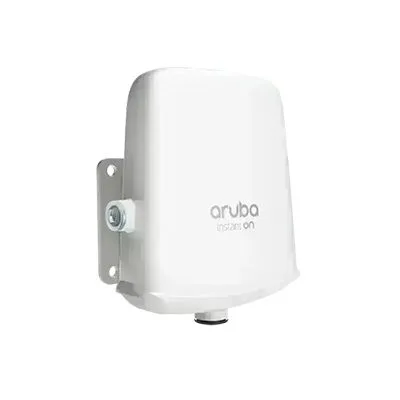

Aruba Instant On AP17 Outdoor Access Point provides reliable, affordable, business-grade Wi-Fi 5 (802.11ac Wave 2) for small businesses such as manufacturing units and open-air restaurants. Supports up to 25 access points with no added cost or complexity. Regulatory domain: Egypt |
| Wi-Fi Certifications |
WPA2, WPA3, Enhanced Open (OWE)Wi-Fi Alliance Certified (WFA) 802.11ac Wave 2 (Wi-Fi 5) |
| Wireless Standards |
IEEE 802.11ac, 802.11n |
| Radio Coverage |
Dual Radio for simultaneous dual-band operation |
| 5 GHz Radio |
802.11ac Wave 2, 2×2 MIMOUp to 867 MbpsMulti-User MIMO support (Wi-Fi 5) |
| 2.4 GHz Radio |
802.11n, 2×2 MIMOUp to 300 Mbps (Wi-Fi 4) |
| Wi-Fi Antennas |
Two dual-band omni-directional antennas4.7 dBi (2.4 GHz), 4.2 dBi (5 GHz) |
| Ports |
(1) Gigabit Ethernet uplink port with PoE-in support (802.3af) |
| Power Input |
Power over Ethernet (PoE) – IEEE 802.3af |
| Power Consumption |
13.5 W maximum |
| Mounting Options |
Includes mounting bracketWall or pole mount |
| Regulatory Compliance |
IEC 60950 / IEC 62368 CBUL2043 (Plenum-rated for air-handling spaces) |
| Warranty |
Aruba Instant On 2-Year Warranty24×7 phone support for first 90 daysChat & community support for product lifetime |
| Weight |
650 g (1.4 lb) |
| Dimensions (H × W × D) |
187 × 156 × 67 mm (7.4 × 6.1 × 2.6 in) |
