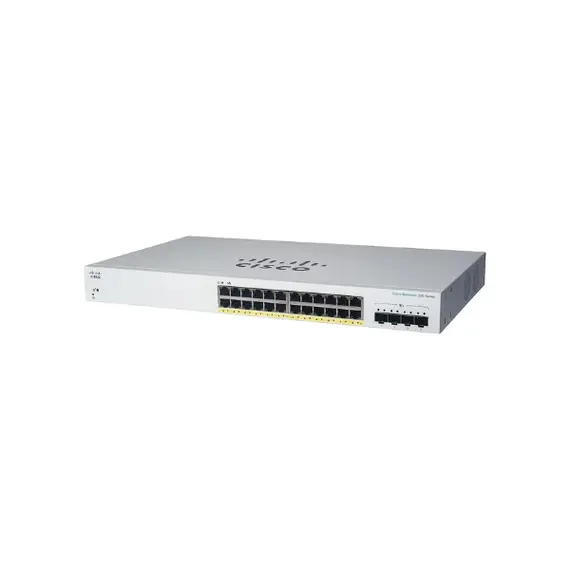

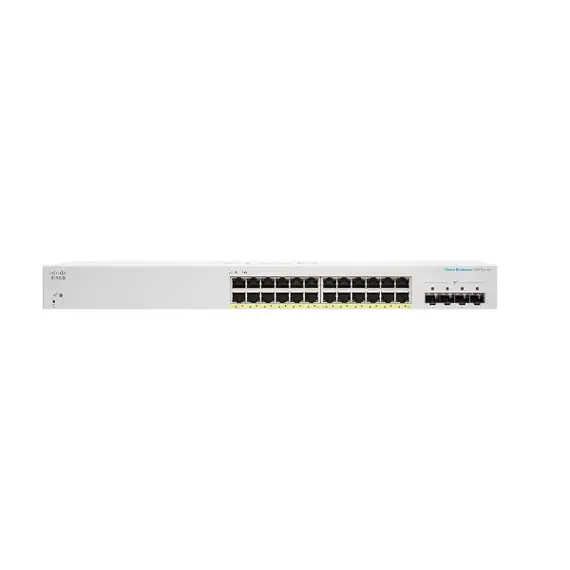

CBS220-24FP-4G-EU
The Cisco CBS220-24FP-4G-EU is part of the Cisco Business 220 Series, providing enterprise-grade networking capabilities with simplified management and exceptional reliability for growing businesses. Equipped with 24 Gigabit Ethernet Full PoE+ ports and 4 Gigabit SFP uplink ports, it offers flexible connectivity for wired and fiber network infrastructures.
With a powerful 382W PoE budget, the switch can simultaneously power multiple IP cameras, VoIP phones, wireless access points, and other PoE-enabled devices directly through Ethernet cables, reducing installation costs and simplifying deployment.
The CBS220-24FP-4G-EU supports advanced Layer 2 features including VLANs, QoS traffic prioritization, link aggregation, IPv6 support, access control lists (ACLs), and enhanced security mechanisms to ensure reliable and secure network operations.
Its intuitive web-based management interface allows easy configuration and monitoring, making it ideal for offices, schools, hotels, retail environments, surveillance systems, and enterprise networks requiring dependable PoE connectivity and fiber uplinks.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24FP-4G-EU |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × 10/100/1000 Gigabit Ethernet PoE+ |
| Uplink Ports | 4 × 1G SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Budget | 382W |
| Total Ports | 28 |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X Authentication |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Dimensions | 440 × 257 × 44 mm |
| Application | VoIP, CCTV, Wireless Access Points, SMB Networks |
| Brand | Cisco |
Key Features
- 24 Gigabit Full PoE+ ports
- 4 Gigabit SFP fiber uplinks
- 382W PoE power budget
- Smart managed Layer 2 switching
- Advanced VLAN and QoS support
- IPv6-ready infrastructure
- Enterprise-grade security features
- Rackmount professional design
- Ideal for CCTV and VoIP deployments
- Reliable Cisco Business networking performance
Additional information
Access Ports 24 Access Ports Speed 1 G (RJ-45) Forwarding Rate (Throughput) 41.68 Mpps Management Platform Cisco Business Dashboard, Cisco Business Mobile App, Command line interface (CLI), Local Web GUI Mounting Options Rack Mount POE Support POE POE Budget from 250 t0 400 w Layer Layer 2 Switching Capacity 56 Gbps Uplink Ports 4 UpLinks Speed 1G
