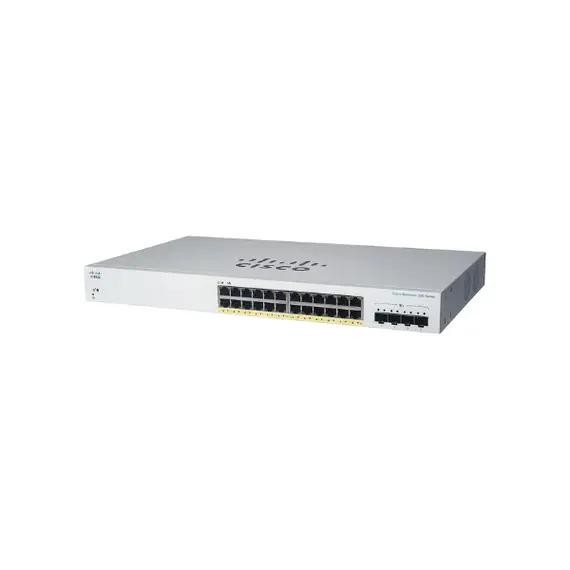

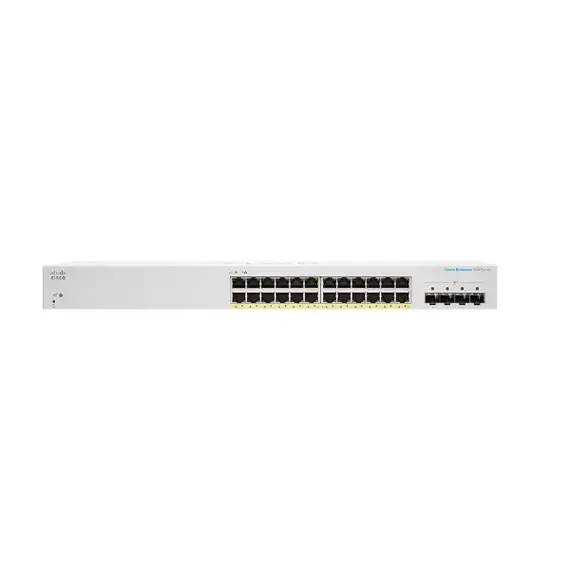

The Cisco CBS220-24T-4X
provides enterprise-class networking performance with intelligent management capabilities for growing business environments. Equipped with 24 Gigabit Ethernet ports and 4 ultra-fast 10G SFP+ uplink ports, this switch delivers scalable connectivity and reliable high-speed performance for modern IT infrastructures.
As part of the Cisco Business 220 Series, the switch supports advanced Layer 2 networking features including VLAN segmentation, QoS traffic prioritization, IPv6 support, link aggregation, ACL security policies, and intuitive web-based management. These features help businesses optimize network traffic, improve security, and maintain stable network operations.
The CBS220-24T-4X is ideal for offices, schools, retail environments, hospitality deployments, surveillance systems, and enterprise networks requiring dependable Gigabit connectivity with high-speed 10G fiber uplinks. Its rackmount design and energy-efficient operation make it suitable for professional networking environments.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBS220-24T-4X |
| Product Series | Cisco Business 220 Series |
| Switch Type | Smart Managed Switch |
| Ports | 24 × Gigabit Ethernet RJ-45 |
| Uplink Ports | 4 × 10G SFP+ |
| PoE Support | No |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Layer Support | Layer 2 Smart Switching |
| VLAN Support | Yes |
| QoS Support | Advanced QoS |
| Security Features | ACL, 802.1X, Port Security |
| IPv6 Support | Yes |
| MAC Address Table | 8K Entries |
| Jumbo Frame Support | Up to 9KB |
| Management | Web GUI, SNMP |
| Mounting Type | Rack Mountable |
| Cooling | Smart Fan |
| Power Supply | Internal |
| Application | SMB Networks, Enterprise Offices, CCTV, Wireless Networks |
| Brand | Cisco |
Key Features
- 24 Gigabit Ethernet ports
- 4 high-speed 10G SFP+ uplinks
- Smart managed Layer 2 switch
- VLAN and QoS support
- Advanced business security features
- IPv6-ready infrastructure
- Rackmount enterprise design
- Reliable Cisco networking performance
- Ideal for office and surveillance networks
- Easy web-based management
Additional information
| Access Ports | 24 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 95.23 Mpps |
| Management Platform | Cisco Business Dashboard, Cisco Business Mobile App, Command line interface (CLI), Local Web GUI |
| Mounting Options | Rack Mount |
| POE | Not Support POE |
| Layer | Layer 2 |
| Switching Capacity | 128 Gbps |
| Uplink Ports | 4 |
| UpLinks Speed | 10G |
