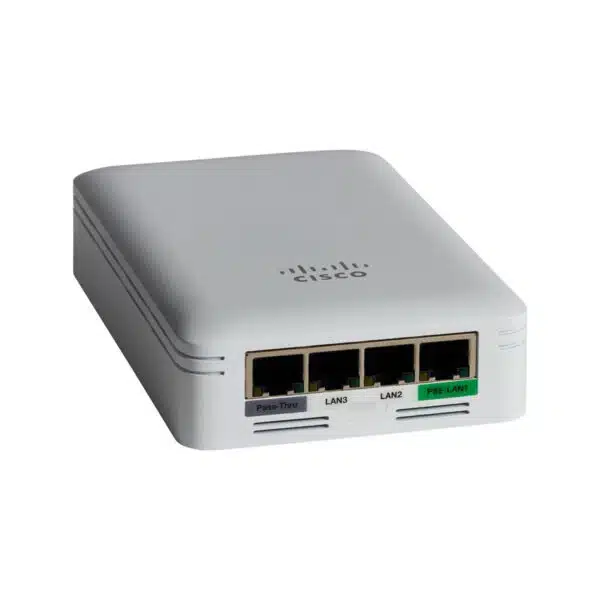

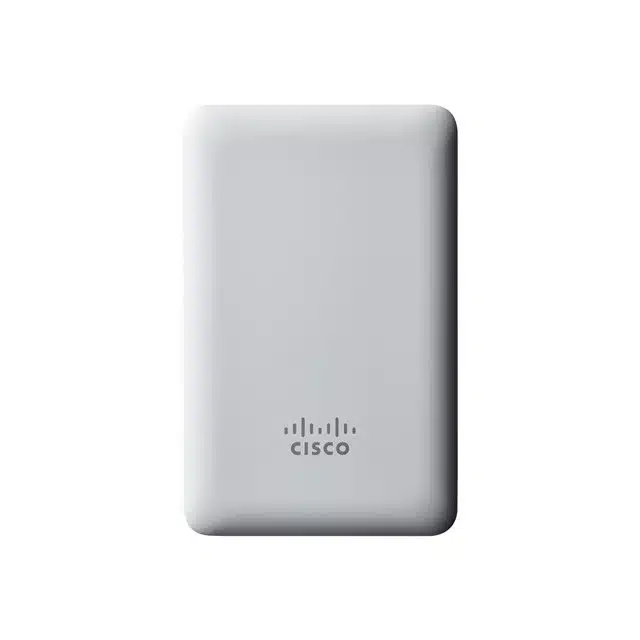

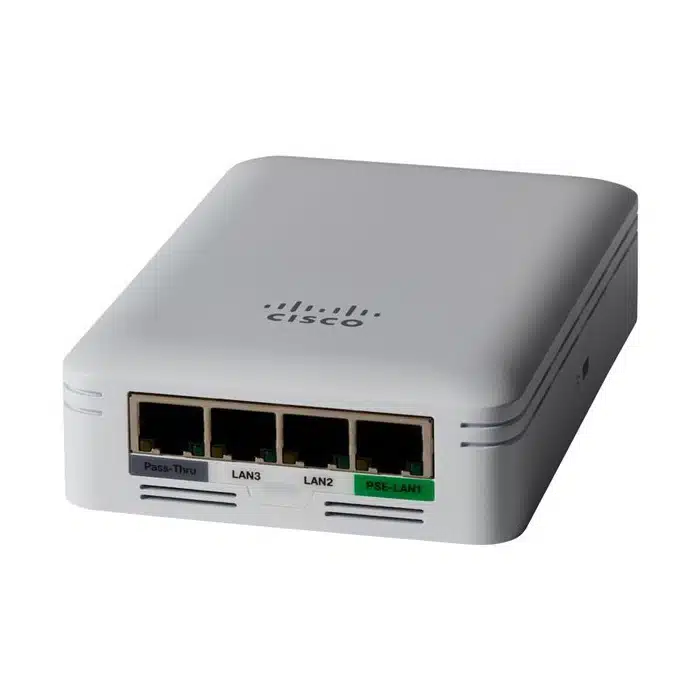

The Cisco CBW145AC-I
provides enterprise-grade wireless networking in a compact wall-mounted design. Built with 802.11ac Wave 2 technology and 2×2 MU-MIMO support, this access point delivers fast and reliable dual-band Wi-Fi connectivity for modern business environments.
Designed specifically for hospitality, offices, dormitories, classrooms, and meeting rooms, the CBW145AC-I combines wireless coverage with integrated wired network connectivity through built-in Gigabit Ethernet ports. Its wall plate form factor enables clean and professional installations while maximizing wireless coverage in individual rooms and workspaces.
The Cisco Business Wireless 100 Series supports seamless roaming, beamforming technology, WPA2/WPA3 wireless security, and simplified management through the Cisco Business Wireless mobile app and web interface. Power over Ethernet (PoE) support simplifies deployment while reducing cabling complexity.
Ideal for SMB and enterprise wireless deployments, the CBW145AC-I ensures stable wireless performance, secure network access, and easy scalability for growing network infrastructures.
Specifications
| Specification | Details |
|---|---|
| Model | Cisco CBW145AC-I |
| Product Series | Cisco Business Wireless 100 Series |
| Wireless Standard | IEEE 802.11ac Wave 2 |
| MIMO Technology | 2×2 MU-MIMO |
| Frequency Bands | 2.4 GHz & 5 GHz |
| Maximum Wireless Speed | Up to 867 Mbps |
| Ethernet Ports | 4 × Gigabit Ethernet |
| Mounting Type | Wall Plate |
| Antenna Type | Internal Antennas |
| Power Options | PoE 802.3af |
| Security | WPA2, WPA3, 802.1X |
| Beamforming | Supported |
| Roaming Support | Yes |
| Management | Cisco Business Wireless App/Web UI |
| Application | Hotels, Offices, Schools, SMB Networks |
| Brand | Cisco |
Key Features
- 802.11ac Wave 2 wireless technology
- 2×2 MU-MIMO Wi-Fi performance
- Compact wall plate design
- Dual-band wireless connectivity
- Integrated Gigabit Ethernet ports
- Advanced WPA3 wireless security
- Seamless roaming support
- Power over Ethernet compatibility
- Easy Cisco wireless management
- Ideal for hospitality and office deployments
Additional information
| Antenna Configuration | Integrated Directional |
|---|---|
| Management Platform | Cisco Business Mobile App, Web UI |
| Max Data Rate | 300 Mbps (2.4 GHz), 867 Mbps (5 GHz) |
| MIMO Capabilities | 2×2 |
| Mounting Options | wall mount |
| No of Users (recommended) | 50 Users |
| POE | Support POE |
| Ports | 4 Ports |
| Ports Speed | 1G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 5 |
| Wireless Bands | Dual Bands |
