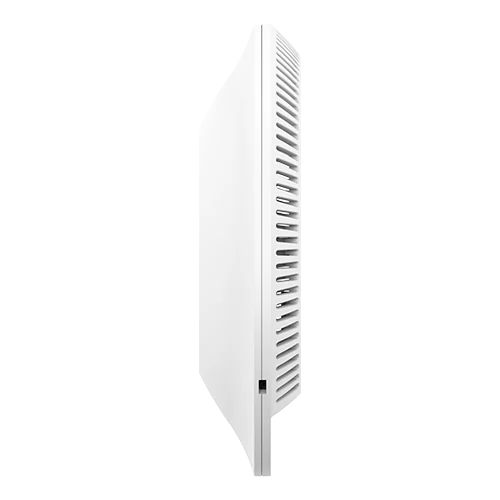

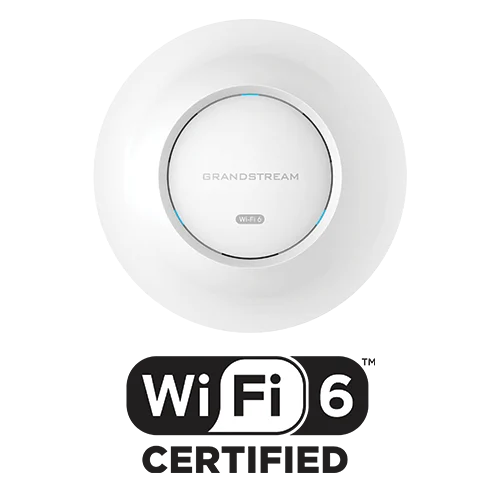

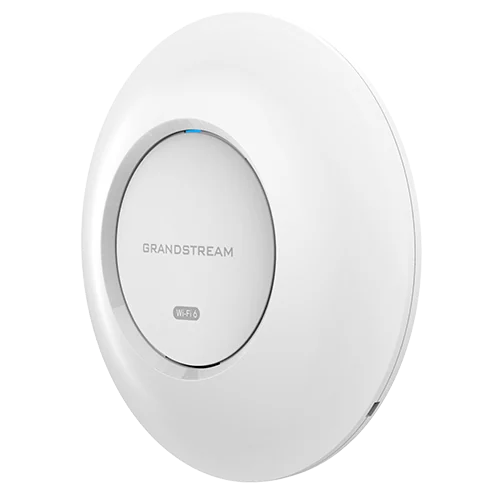

GWN7660E
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2×2:2 MU-MIMO technology on the 2.4G band and 3×3:2 MU-MIMO on the 5G band
- 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
- Dual-band 2.4G 2×2:2 and 5G 3×3:2 MU- MIMO with OFMDA and XTRA Range technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
Additional information
| Antenna Configuration | Integrated Omni-Directional |
|---|---|
| Management Platform | Embedded Controller, GDMS Networking (Cloud), GWN Manager |
| Max Data Rate | 2402 Mbps (5 GHz), 573 Mbps (2.4 GHz) |
| MIMO Capabilities | 2×2 (2.4 GHz), 3×3 (5 GHz) |
| Mounting Options | Ceiling Mount, wall mount |
| No of Users (recommended) | +150 Users |
| POE | Support POE |

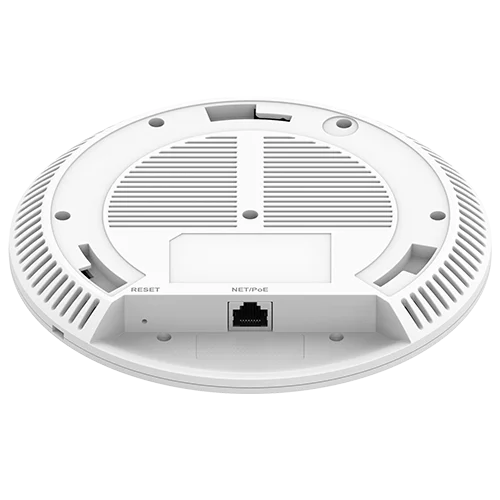

| Ports | 1 Port |
| Ports Speed | 1G |
| Security Standards | WPA2, WPA3 |
| Smart Mesh | Supported |
| Wifi | WIFI 6 |
| Wireless Bands | Dual Bands |
