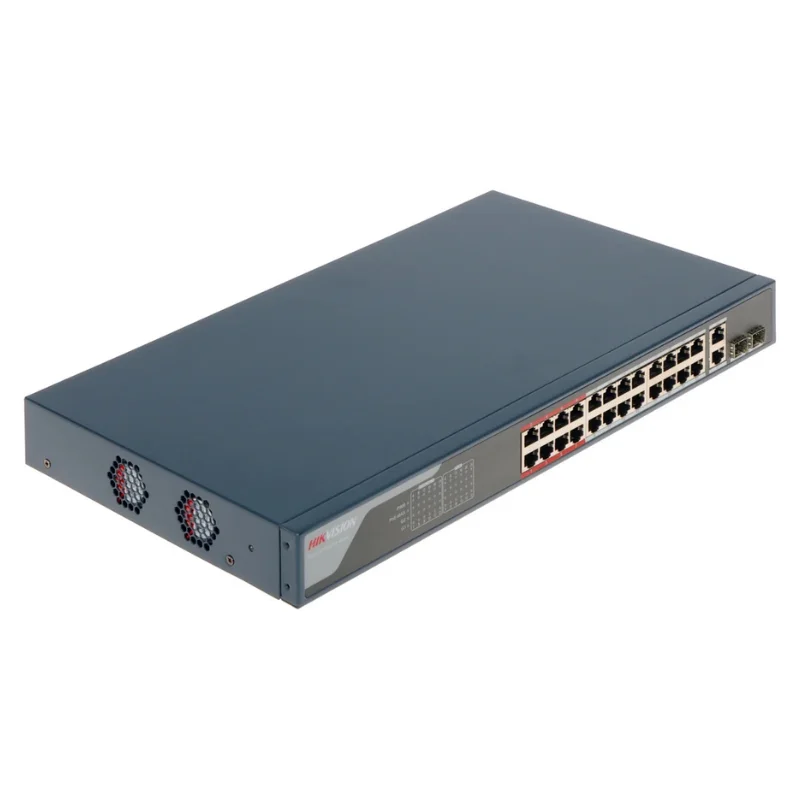

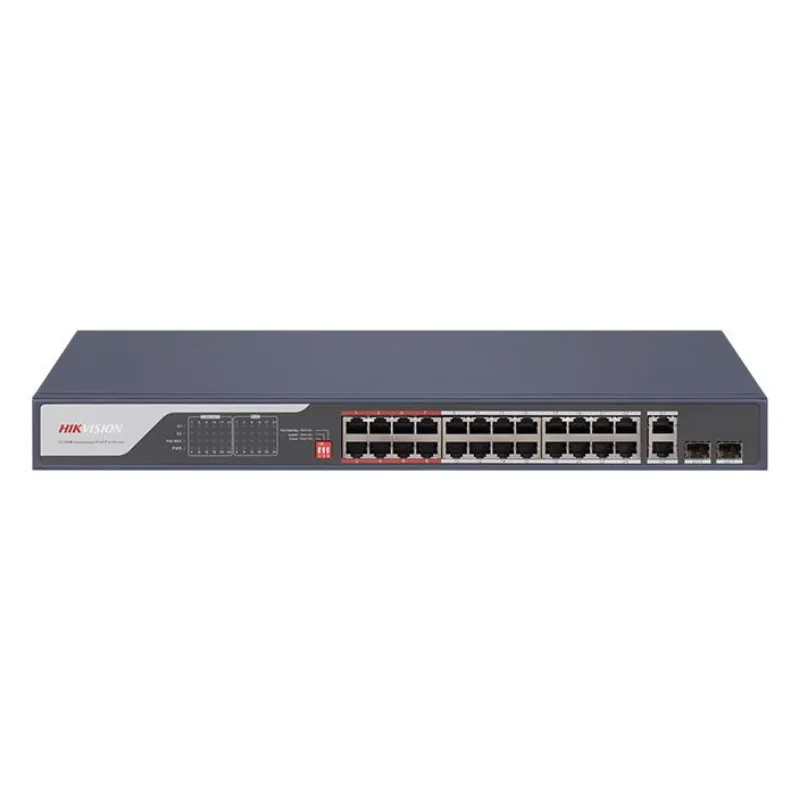

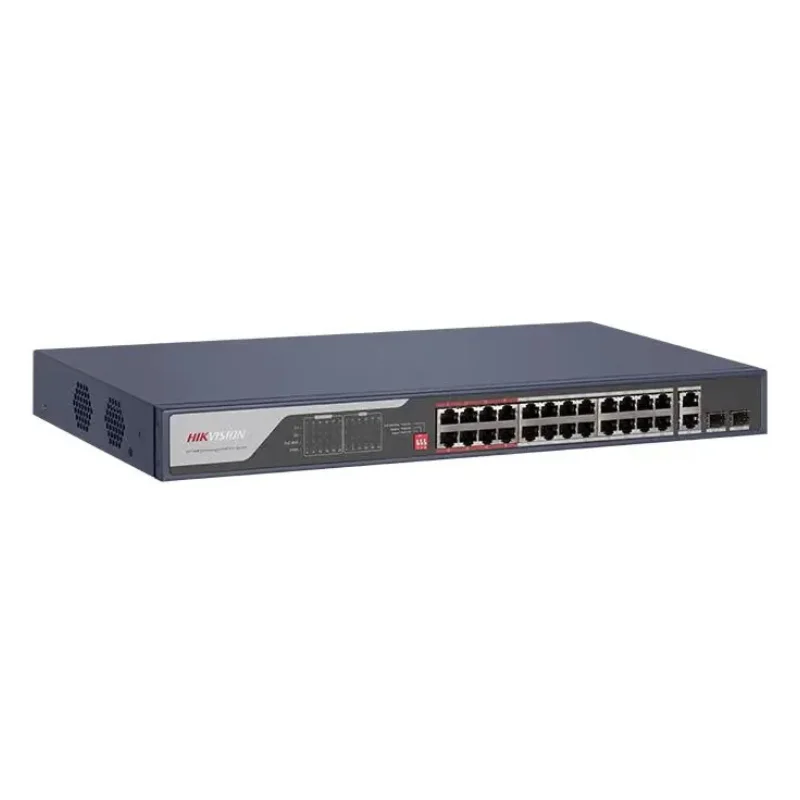

Hikvision DS-3E0326P-E(C) – Description
24 Port Fast Ethernet Unmanaged PoE Switch
Reliable PoE Network Connectivity:
The Hikvision DS-3E0326P-E(C) is a 24 Port Fast Ethernet Unmanaged PoE Switch designed for IP surveillance systems, security cameras, and reliable network deployments. It provides 24 × 10/100 Mbps PoE ports and 2 × Gigabit Combo ports, delivering efficient connectivity and power for compatible network devices.
Intelligent PoE Management:
This Hikvision PoE switch supports intelligent PoE management to help distribute power efficiently across connected devices. With IEEE 802.3af and IEEE 802.3at support, each PoE port can deliver up to 30 W, while the switch provides a powerful 370 W total PoE budget for multiple IP cameras and other PoE devices.
Up to 300 m PoE Transmission:
Ports 17–24 support Long Range PoE Mode, allowing transmission distances of up to 300 meters. This feature is particularly useful for surveillance installations where cameras need to be positioned far from the network switch. Actual transmission performance may vary depending on cable quality and the connected camera model.
PoE Watchdog for Camera Reliability:
The DS-3E0326P-E(C) includes PoE Watchdog functionality on ports 1–24. It can automatically detect unresponsive PoE cameras and restart them, helping maintain stable surveillance operation without requiring manual intervention.
Port Isolation for Network Security:
Ports 1–24 support port isolation, which helps improve network security and traffic management. Isolated ports cannot communicate directly with each other but can communicate with the uplink ports, providing a practical way to separate connected devices within a surveillance network.
VIP Priority Forwarding:
Ports 1–8 feature VIP priority forwarding, helping prioritize critical video traffic when available bandwidth is limited. This makes the switch suitable for IP camera environments where consistent video transmission is important for monitoring and recording.
Strong Protection Against Surges:
The switch provides 6 kV surge protection to improve reliability in demanding environments. This protection helps safeguard connected PoE equipment against electrical surges, making the DS-3E0326P-E(C) suitable for professional security and surveillance network installations.
High Switching Performance:
With an 8.80 Gbps switching capacity, 6.55 Mpps packet forwarding rate, 16K MAC address table, and 4 Mbits of internal cache, the Hikvision DS-3E0326P-E(C) provides efficient Layer 2 network switching for connected surveillance equipment and Ethernet devices.
Rack-Mount Design:
The switch 24 port features a durable metal shell and a standard rack-mount installation design with mounting ears included. Its dimensions are 440 × 44 × 220.8 mm, while the net weight is 2.785 kg, making it suitable for organized installation in network racks and professional surveillance cabinets.
Efficient Surveillance Networking:
The Hikvision DS-3E0326P-E(C) combines 24 PoE ports, Gigabit Combo uplinks, long-distance PoE transmission, PoE Watchdog, port isolation, VIP priority forwarding, and 6 kV surge protection in one reliable networking solution. It is an effective choice for CCTV installations requiring centralized power and network connectivity.
