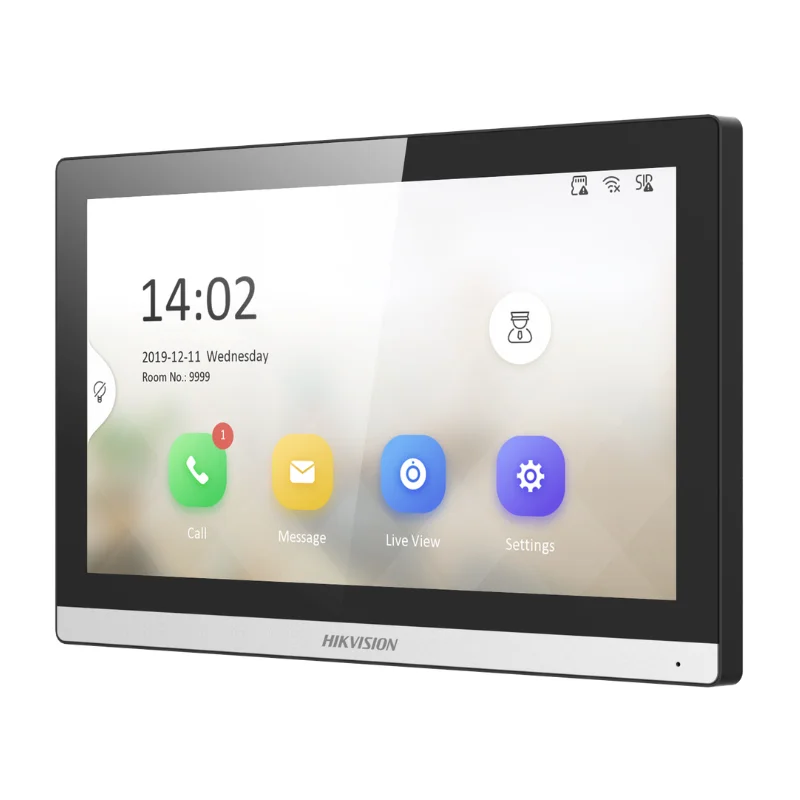

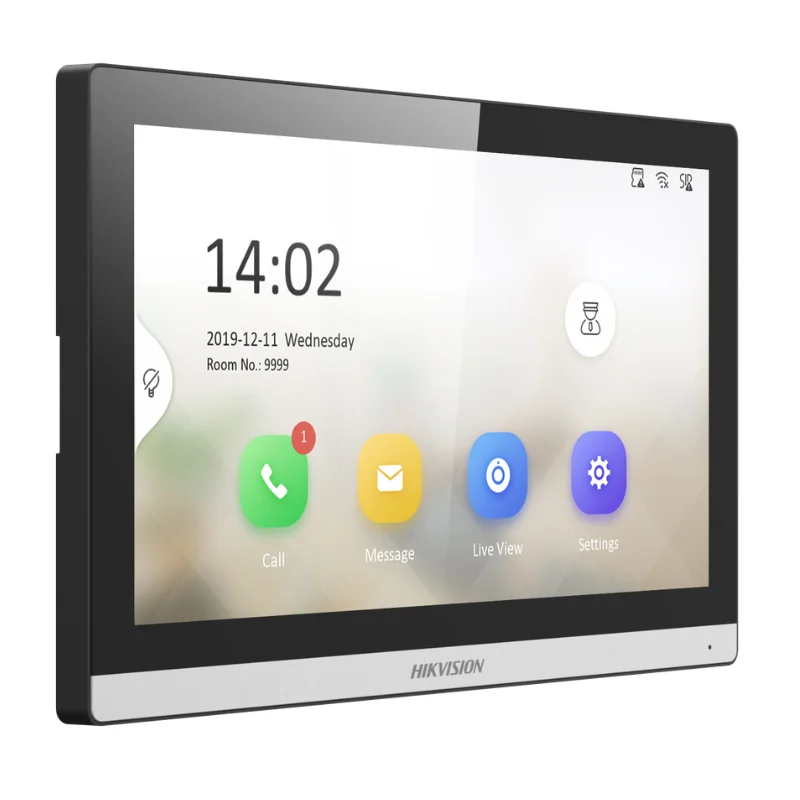

Hikvision DS-KH6350-WTE1 – Description
KH6 Series IP-Based Indoor Station
7-Inch Touchscreen Display:
The Hikvision DS-KH6350-WTE1 is a KH6 Series IP-based indoor station designed for modern video intercom and access control systems. It features a 7-inch colorful TFT capacitive touchscreen with a 1024 × 600 resolution, providing a clear and convenient interface for controlling intercom functions.
Hik-Connect Mobile Control:
With Hik-Connect APP support, users can conveniently manage the intercom system remotely. The indoor station allows users to receive calls, communicate with visitors, view connected cameras, and open doors remotely, providing greater convenience and security for homes, apartments, offices, and commercial buildings.
Easy System Configuration:
The DS-KH6350-WTE1 is designed for simple installation and operation without requiring a PC. Its built-in setup wizard helps users configure the system quickly, while the complete intercom system can be managed directly from the touchscreen interface.
Video Monitoring and Live View:
The Hikvision indoor station supports live viewing from the connected door station and cameras installed in public areas. With H.265 and H.264 video compression, it provides efficient video transmission while helping reduce network bandwidth and storage requirements.
Two-Way Audio Communication:
A built-in omnidirectional microphone and loudspeaker provide convenient hands-free communication with visitors. Audio features include noise suppression and echo cancellation for clearer conversations. The station supports multiple audio compression standards, including G.711, Opus, AAC, G.726, and G.722.1.
Alarm and Security Integration:
The indoor station includes 8 alarm inputs and 2 alarm outputs, allowing it to integrate with alarm systems. Linked alarms can notify the management center so appropriate action can be taken promptly. It also supports 2 lock-control relays, providing direct access control capabilities.
Elevator Access Control:
The DS-KH6350-WTE1 supports elevator access control, making it suitable for multi-story residential buildings, apartments, offices, and other properties requiring integrated visitor management and controlled elevator access.
Network and Connectivity:
The intercom features a 10/100 Mbps RJ-45 Ethernet interface and supports standard PoE using IEEE 802.3af, simplifying installation by allowing power and data to be delivered through a single network cable. It also supports 2.4 GHz Wi-Fi using IEEE 802.11b/g/n.
Storage and Capacity:
A TF card slot supports cards up to 128 GB for storing captured images and alarm records. The system supports up to 200 captured pictures and 200 alarm records with a TF card, while also providing storage for up to 200 alarm records without a TF card.
Expandable Intercom System:
The Hikvision DS-KH6350-WTE1 can connect with up to 16 linked indoor extensions and 17 linked doorphones, making it suitable for larger residential and commercial intercom installations.
Installation and Design:
The compact indoor station supports wall mounting and table mounting. Measuring 175 × 113.5 × 21 mm and weighing approximately 355 g, it offers a slim design for indoor environments. It operates from -10°C to 50°C with power consumption of 5 W or less.
