TL-SF1005LP
HARDWARE FEATURES |
|
|---|---|
| Interface | • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate | 0.744 Mpps |

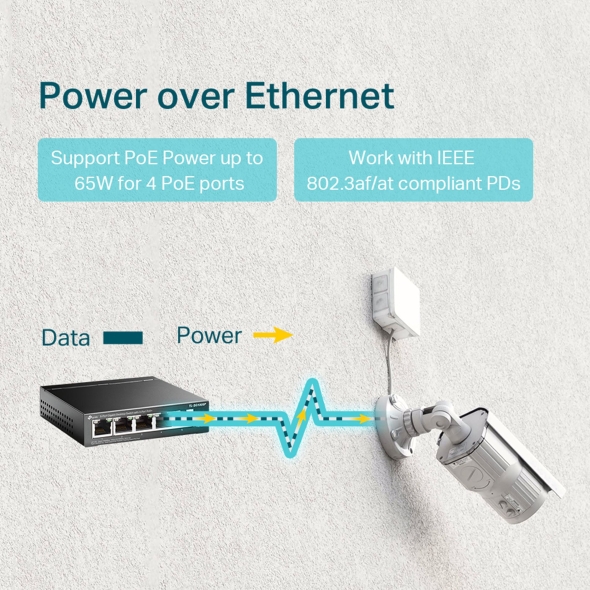

| PoE Ports (RJ45) | • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4 • Power Supply: 41 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm) |
| Max Power Consumption | • 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected) |
| Max Heat Dissipation | • 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected) |
SOFTWARE FEATURES |
|
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1005LP
• Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Additional information
| Access Ports | 5 |
|---|---|
| Access Ports Speed | 100 Mbps (RJ-45) |
| Forwarding Rate (Throughput) | 2.2 Gbps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Support POE |
| POE Budget | less than 100 W |
| Layer | Layer 2 |
| Switching Capacity | 1 Gbps |
