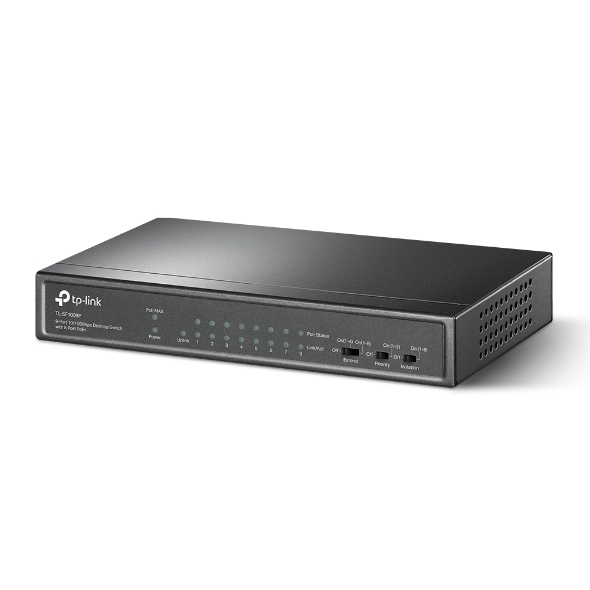

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

Up to 250 m PoE Transmission : With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.

1,289 EGP ~~1,547 EGP~~

HARDWARE FEATURES

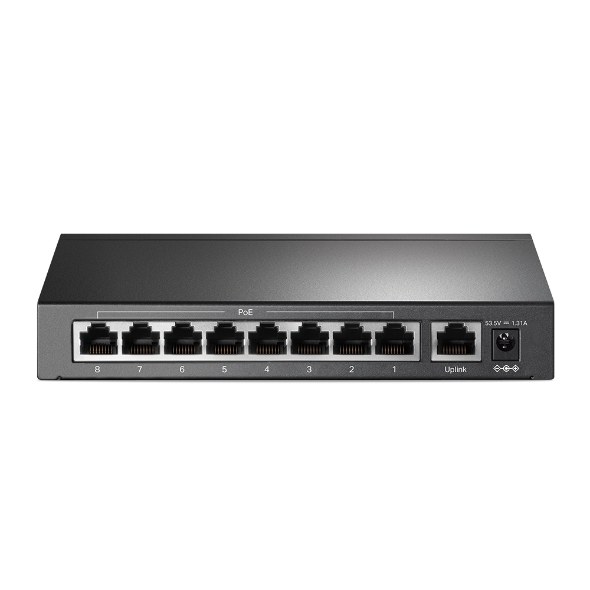

Interface	• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Installation	• Desktop • Wall Mounting
Power Supply	External Power Adapter (Output: 53.5VDC / 1.31A)

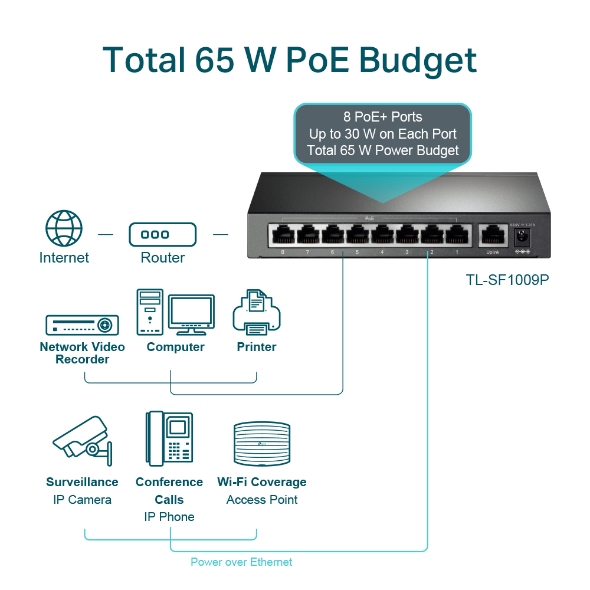

PoE Ports (RJ45)	• Standard: 802.3 af/at compliant PoE Ports: Ports 1–8, up to 30 W PoE output per port • Power Supply: 63 W
LED Indicator	• Power Link/Act PoE Status • PoE MAX
Dimensions ( W x D x H )	6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption	• 3.67 W (220 V/50 Hz no PD connected) • 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation	12.48 BTU/h (220 V/50 Hz no PD connected) 249 BTU/h (220 V/50 Hz with 63 W PD connected)

Advanced Features

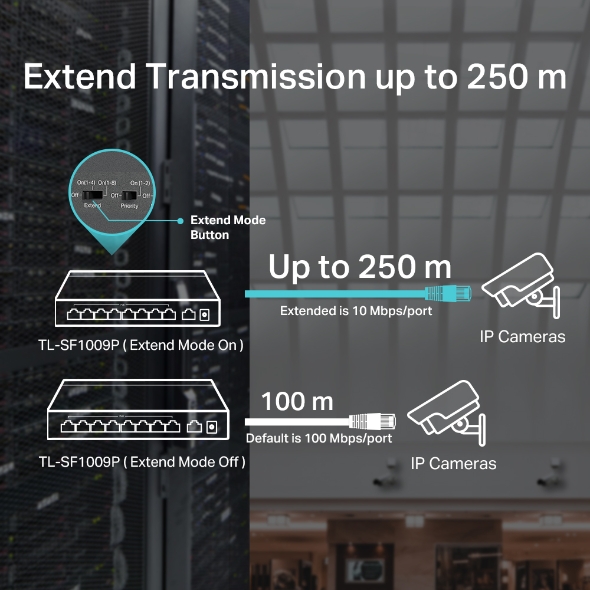

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)

Isolation Mode Button (Ports 1–8)

PoE Auto Recovery Button (Ports 1–8)

Compatible With IEEE 802.3af/at Compliant PDs

Mac Address Auto-Learning and Auto-Aging

IEEE 802.3x Flow Control

• Green Technology

Transfer Method

Store and Forward

Certification

CE, FCC, RoHS

Package Contents

• LS109P

Power Adapter

Installation Guide

• Rubber Feet

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensin

• Storage Humidity: 5–90% RH non-condensing
