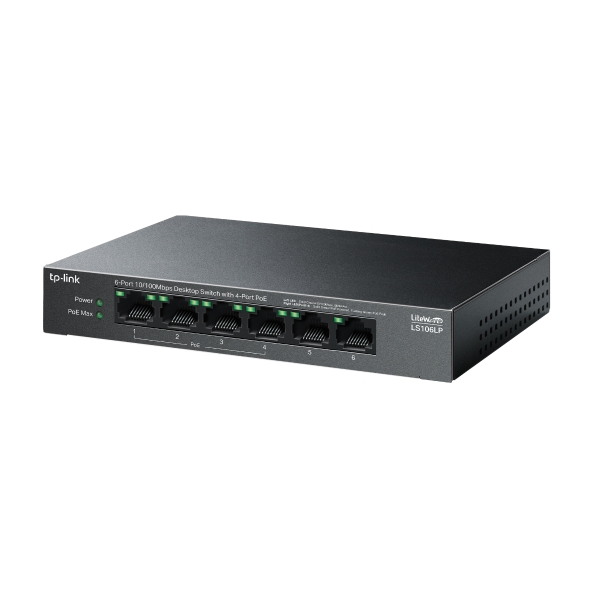

TP Link LS106LP 6-Port 10/100Mbps Desktop Switch

Name: TP Link LS106LP 6-Port 10/100Mbps Desktop Switch
Brand: TP-Link
SKU: 10600
Price: 1144 EGP
Availability: InStock

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.

With Extend Mode

1,144 EGP ~~1,373 EGP~~

LS106LP

HARDWARE FEATURES
Interface	• 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Installation	• Desktop • Wall Mounting

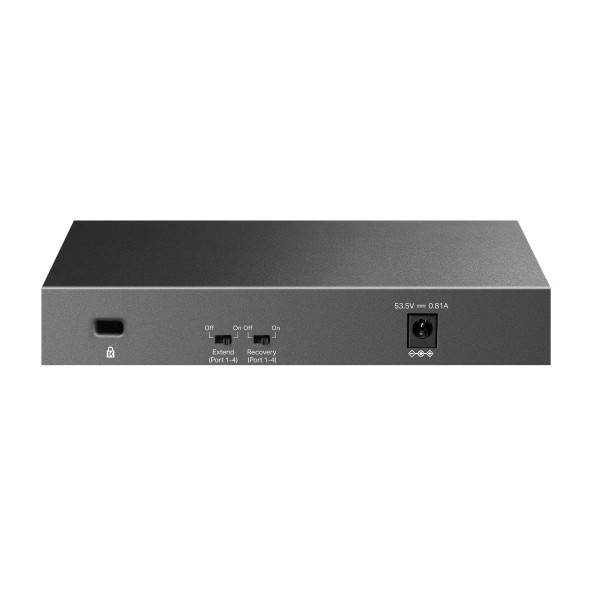

Power Supply	External Power Adapter (Output: 53.5VDC / 0.81A)
PoE Ports (RJ45)	• Standard: 802.3 af compliant PoE Ports: Ports 1–4, up to 15.4 W PoE output per port • Power Supply: 41 W

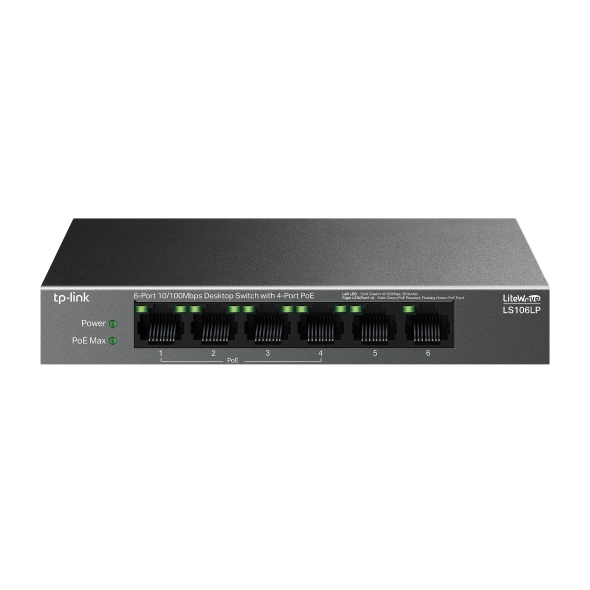

LED Indicator	• Power Link/Act PoE Status • PoE MAX
Dimensions ( W x D x H )	6.2×4.0×1.0 in (158×101×25 mm)
Max Power Consumption	• 2.53 W (220 V/50 Hz no PD connected) • 47.76 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation	• 8.61 BTU/h (220 V/50 Hz no PD connected) 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)

Advanced Features

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)

PoE Auto Recovery Button (Ports 1-4)

Compatible With IEEE 802.3af Compliant PDs

Mac Address Auto-Learning and Auto-Aging

• IEEE 802.3x Flow Control

• Green Technology

Transfer Method

Store and Forward

Certification

CE, FCC, RoHS

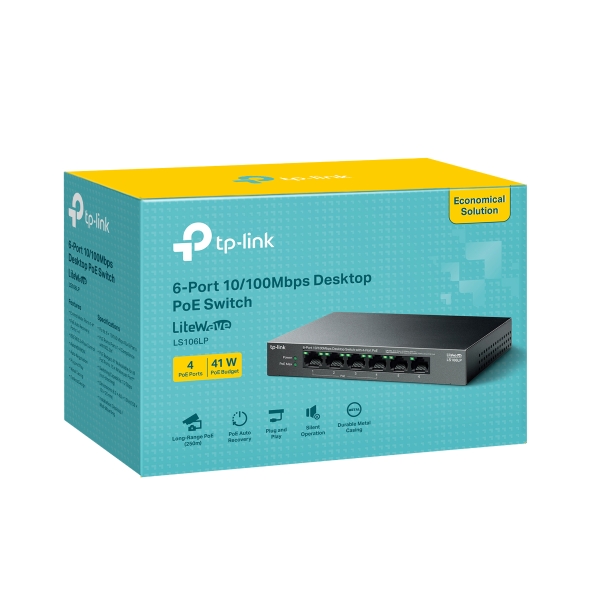

Package Contents

• LS106LP

Power Adapter

• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
