LS1008G
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |

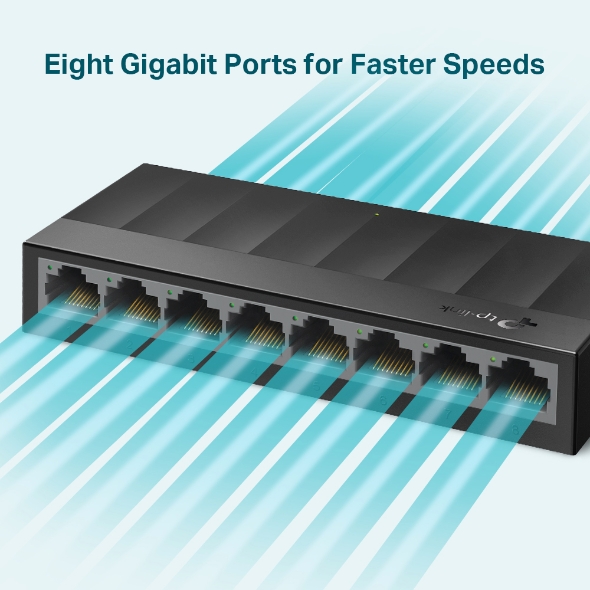

| Interface | 8× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |

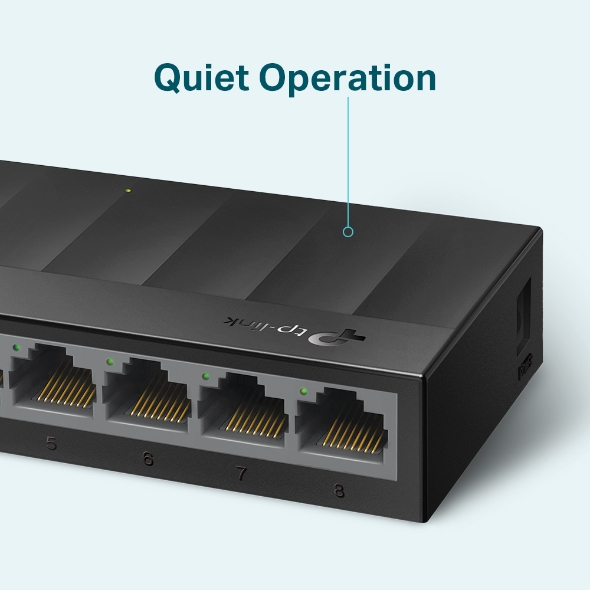

| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| Dimensions ( W x D x H ) | 5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm) |
| Max Power Consumption | 3.9W |
| Max Heat Dissipation | 13.299 BTU/h |
PERFORMANCE |
|
|---|---|
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 16 KB |
SOFTWARE FEATURES |
|
|---|---|
| Advanced Features | Green Technology
802.3X Flow Control Back Pressure |
| Transfer Method | Store and Forward |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | 8-Port 10/100/1000Mbps Desktop Switch
Power Adapter Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 11.90 Mpps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Layer | Layer 2 |
| Switching Capacity | 16 Gbps |
