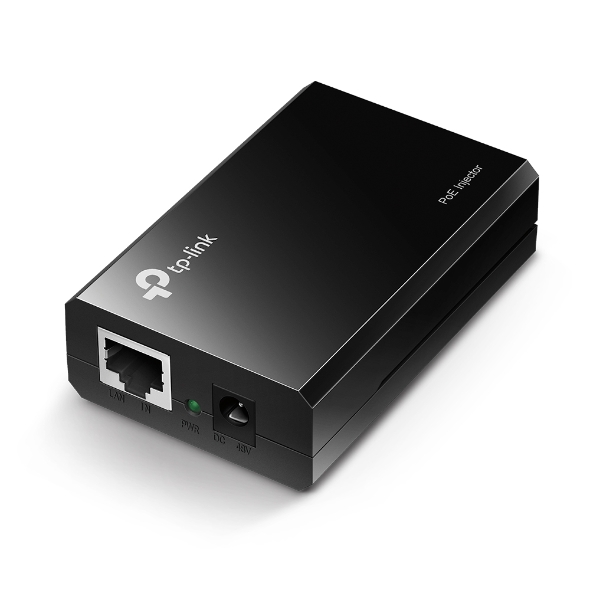

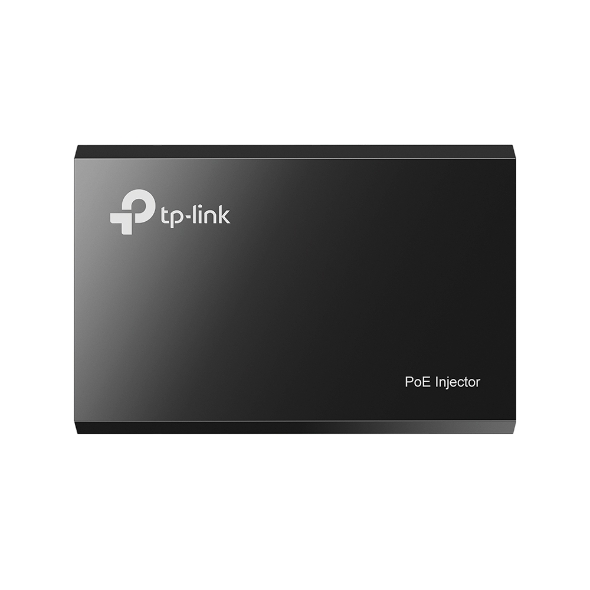

TL-POE150S
HARDWARE FEATURES |
|
|---|---|

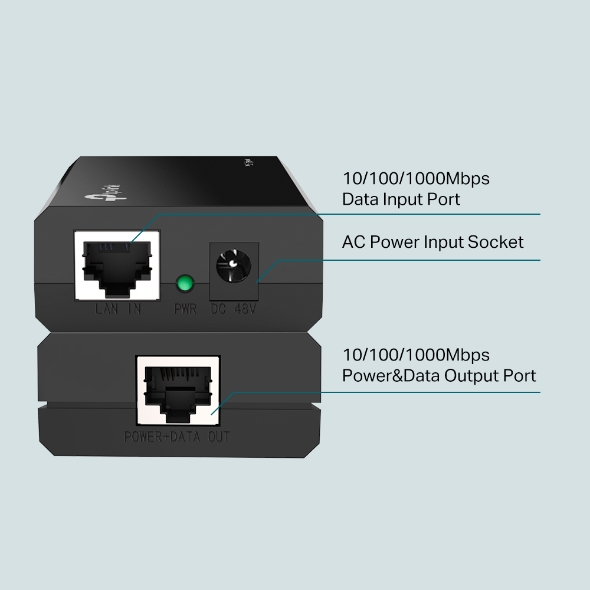

| Interface | 2 10/100/1000Mbps RJ45 Port
AUTO Negotiation/AUTO MDI/MDIX 1 48VDC POWER INPUT PORT |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 15.4W (Max. 48VDC) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.2*2.1*0.9 in.(80.8*54*24 mm) |
SOFTWARE FEATURES |
|
|---|---|
| Basic Function | Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters Auto-Determine The Necessary Power Requirements |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |

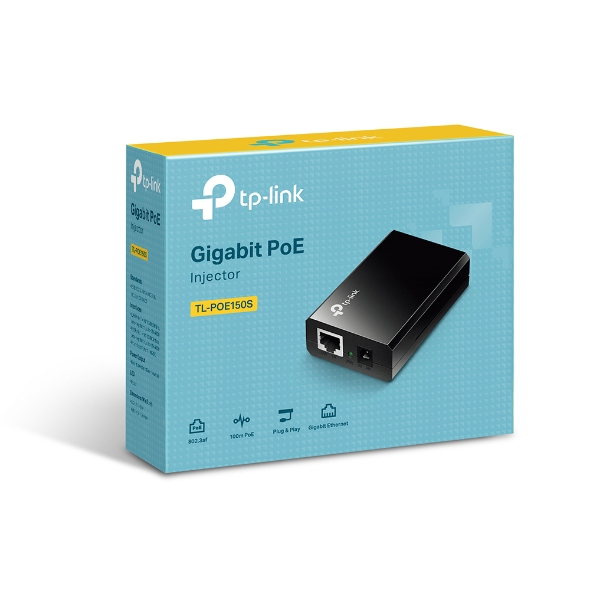

| Package Contents | Gigabit PoE Injector TL-POE150S
Power Adapter RJ45 Cable Installation Guide |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 1 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Support POE |
| POE Budget | less than 100 W |
| Uplink Ports | 1 |
| UpLinks Speed | 1G |
