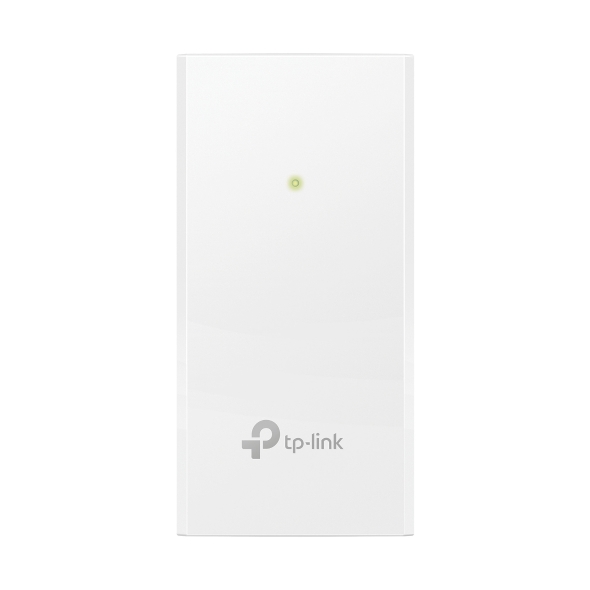

TL-POE2412G
HARDWARE FEATURES |
|
|---|---|

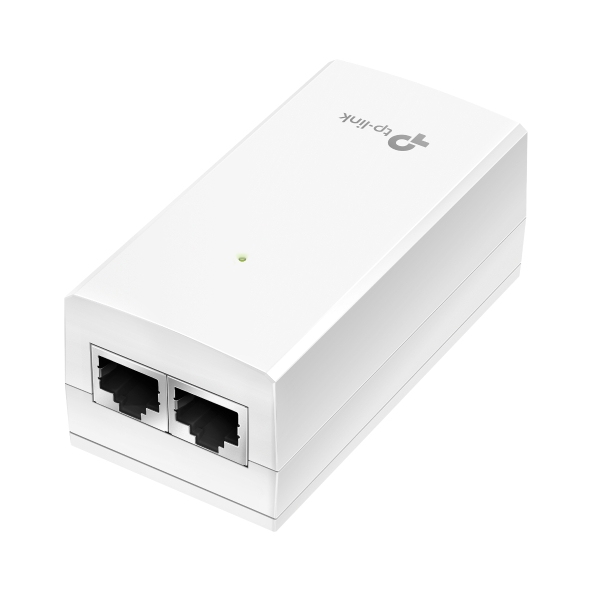

| Interface | 2 10/100/1000Mbps RJ45 Port

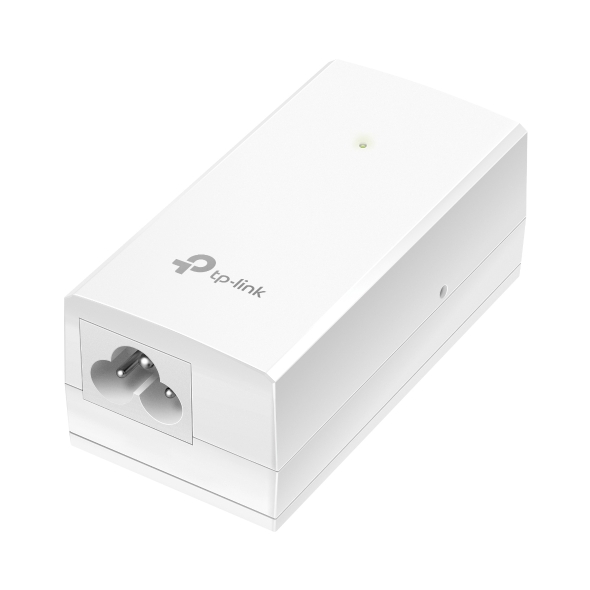

AUTO Negotiation/AUTO MDI/MDIX 1 100~240V / 50~60Hz AC Power Input Port |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) |
| Power Supply | 12W (Max. 24VDC) |
| LED Indicator | PWR |
| Dimensions ( W x D x H ) | 3.4*1.7*1.4 in.( 85.8mm*43.9mm*35mm) |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | 24V 12W Passive PoE Adapter TL-POE2412G
Power Cord Wall Mounting Kits |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 1 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Support POE |
| POE Budget | less than 100 W |
| Uplink Ports | 1 |
| UpLinks Speed | 1G |
