TL-SG1008D
HARDWARE FEATURES |
|
|---|---|
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter (Output: 5VDC/0.6A) |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
| Max Power Consumption | 4.63W(220V/50Hz) |
| Max Heat Dissipation | 15.80BTU/h |
SOFTWARE FEATURES |
|
|---|---|
| Transfer Method | Store and Forward |
| MAC Address Table | 4K |
| Advanced Functions | Green Technology
802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHs |

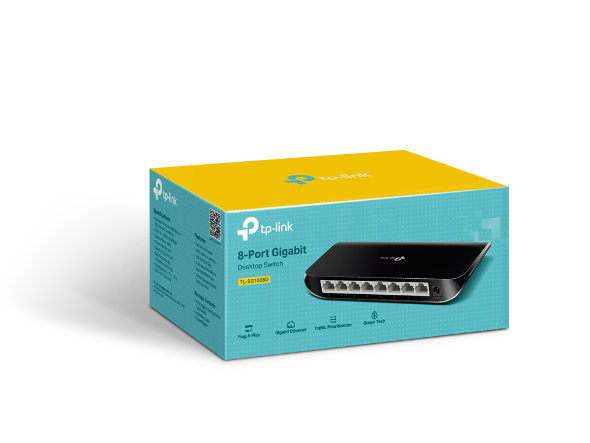

| Package Contents | 8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Access Ports | 8 |
|---|---|
| Access Ports Speed | 1 G (RJ-45) |
| Forwarding Rate (Throughput) | 11.90 Mpps |
| Management Platform | Plug-and-play |
| Mounting Options | Desktop |
| POE | Not Support POE |
| Layer | Layer 2 |
| Switching Capacity | 16 Gbps |
