Build a Solid, Secure Network for Your Business
The Cisco Business CBS250-8P-E-2G is the next generation of affordable smart switches that combine powerful network performance with the advanced security and management features your business needs. Whether you are setting up a seamless Wi-Fi network for a corporate office in Cairo or deploying a centralized IP surveillance system for a retail chain in Alexandria, this switch delivers rock-solid reliability.
Key Benefits & Features:
-
Power Over Ethernet Plus (PoE+): Simplify your deployment. With a 67W PoE power budget across all 8 Gigabit ports, you can easily connect and power wireless access points, IP telephony, and PTZ security cameras without the need for separate electrical outlets or messy wiring.
-
Flexible Uplink Connectivity: The two 1G SFP/RJ-45 combo ports provide versatile uplink options, allowing you to connect to servers, storage devices, or other switches over long-distance fiber optic cables or standard copper.
-
Enterprise-Grade Security: Protect your sensitive business data with advanced security protocols, including IEEE 802.1X port security, Access Control Lists (ACLs), DoS attack prevention, and secure SSL/SSH management access.
-
Layer 3 Static Routing: Move beyond standard Layer 2 switches. The CBS250 series supports IPv4 and IPv6 static routing, allowing you to segment your network into separate workgroups and communicate across VLANs without degrading application performance.
-
Silent & Compact Design: Featuring an external power supply (Ext PS) and a completely fanless design, this switch operates silently, making it ideal for open-plan offices, quiet workspaces, or desktop placement.
-
Easy Setup & Management: The intuitive Cisco Business Dashboard and integrated web interface make network configuration, management, and troubleshooting simple—even for users without deep IT expertise.
Technical Specifications
| Specification | Details |

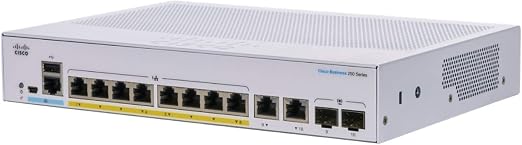

| Model | Cisco Business CBS250-8P-E-2G |
| Total System Ports | 10 Gigabit Ethernet |
| Downlink Ports | 8x 10/100/1000 Gigabit Ethernet (RJ-45) |
| Uplink Ports | 2x Gigabit SFP/RJ-45 Combo ports |
| Power over Ethernet (PoE) | PoE+ (802.3af/at) on 8 ports |
| Dedicated PoE Power Budget | 67 Watts total |
| Switching Capacity | 20.0 Gbps |
| Forwarding Rate | 14.88 mpps (64-byte packets) |
| Layer 2 / Layer 3 Support | Support for up to 255 VLANs, IPv4/IPv6 static routing (up to 32 static routes) |
| Security Features | 802.1X RADIUS, ACLs (512 rules), Port Security, DoS Prevention |
| Power Supply | External, Universal 100 to 240V, 50 to 60 Hz |
| Dimensions (W x D x H) | 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in) |
| Weight | Compact, fanless desktop/rack-mountable design |
