Hikvision DS-KIS212(B) – Description
4-Wire HD Video Intercom Kit
HD Video Intercom System:

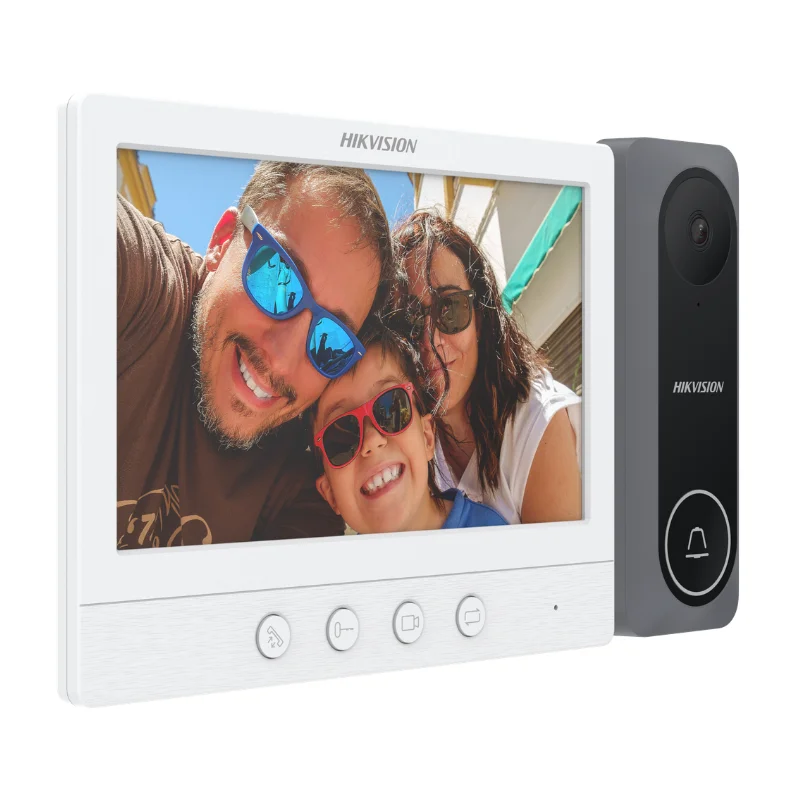

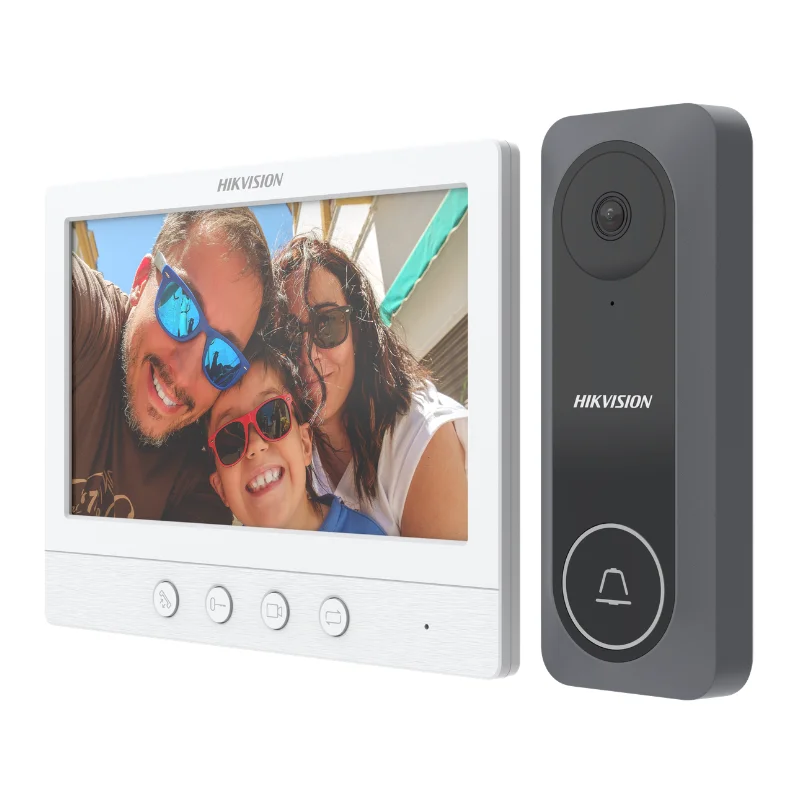

The Hikvision DS-KIS212(B) is a reliable 4-wire HD video intercom kit designed for homes, villas, apartments, offices, and other indoor applications. It combines a door station with a 7-inch indoor monitor to provide convenient visitor communication and door access control.
HD TVI Video Quality:
The door station delivers HD TVI video with a stream resolution of 1280 × 720 at 60 fps. Its wide viewing angle of 130° horizontally and 70° vertically provides a broad field of view, helping users clearly monitor visitors at the entrance.
Wide-Angle Door Station:
The outdoor door station features a built-in omnidirectional microphone and loudspeaker for two-way voice communication. An integrated IR light provides up to 3 meters of supplementary illumination for improved visibility in low-light conditions.
One-Press Calling:
The Hikvision DS-KIS212(B) features a simple one-press calling design. Visitors can press the physical call button on the door station to contact the indoor station quickly, making the system easy to operate for residential and commercial users.
One-Press Door Unlocking:
The indoor station provides convenient one-press door unlocking. The door station includes one relay supporting up to 30 VDC and 1 A, allowing the intercom system to control a compatible electric lock.
7-Inch Color Indoor Monitor:
The indoor station features a 7-inch colorful TFT display with a resolution of 1024 × 600 pixels. Its physical-button operation provides straightforward control for answering calls, monitoring the entrance, and unlocking the door.
Expandable Intercom System:
The DS-KIS212(B) supports up to two door stations and three indoor stations in one system. The indoor station can connect with up to two additional indoor extensions and two doorphones, making the kit suitable for applications requiring multiple communication points.
Analog Camera Support:
The indoor station in Hikvision intercom includes one BNC interface for connecting a compatible analog camera. This allows users to expand the monitoring capability of the intercom installation and view an additional camera from the indoor station.
Plug-and-Play Installation:
Designed for straightforward installation, the Hikvision DS-KIS212(B) uses a four-wire connection between the door station and indoor station. Both units support surface mounting, helping simplify installation in suitable residential and commercial environments.
Durable Door Station:
The door station is made from plastic and supports a working temperature range of -30°C to +60°C. It operates within 10% to 90% relative humidity and has a compact 136 × 51 × 20 mm design for convenient installation.
Efficient Indoor Station:
The indoor monitor operates on 12 VDC power and consumes no more than 5 W. Measuring 178 × 132 × 19 mm, its slim design makes it suitable for wall-mounted indoor installations where space and ease of use are important.
Two-Way Audio Communication:
Both the door station and indoor station feature built-in omnidirectional microphones and loudspeakers. This enables clear two-way audio communication between visitors at the entrance and users inside the property.
Residential and Commercial Applications:
The Hikvision DS-KIS212(B) 4-Wire HD Video Intercom Kit is suitable for villas, houses, apartments, offices, and similar indoor environments. Its HD video, two-way audio, door unlocking, expandable configuration, and simple controls provide a practical access communication solution.
