Hikvision DS-KIS303-P – Description

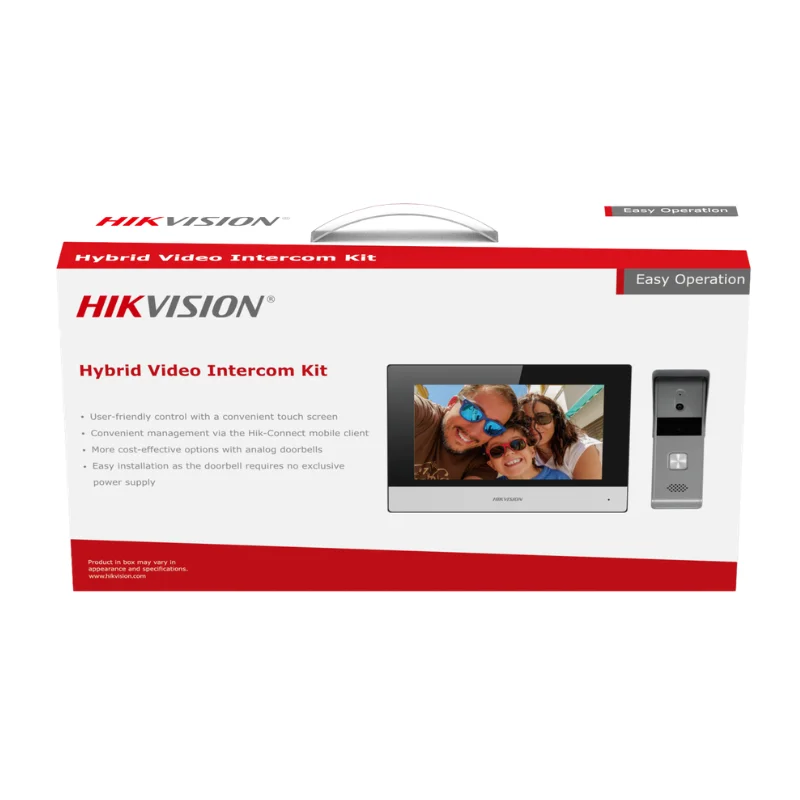

Hybrid Video Intercom Kit
Hybrid Video Intercom Solution:

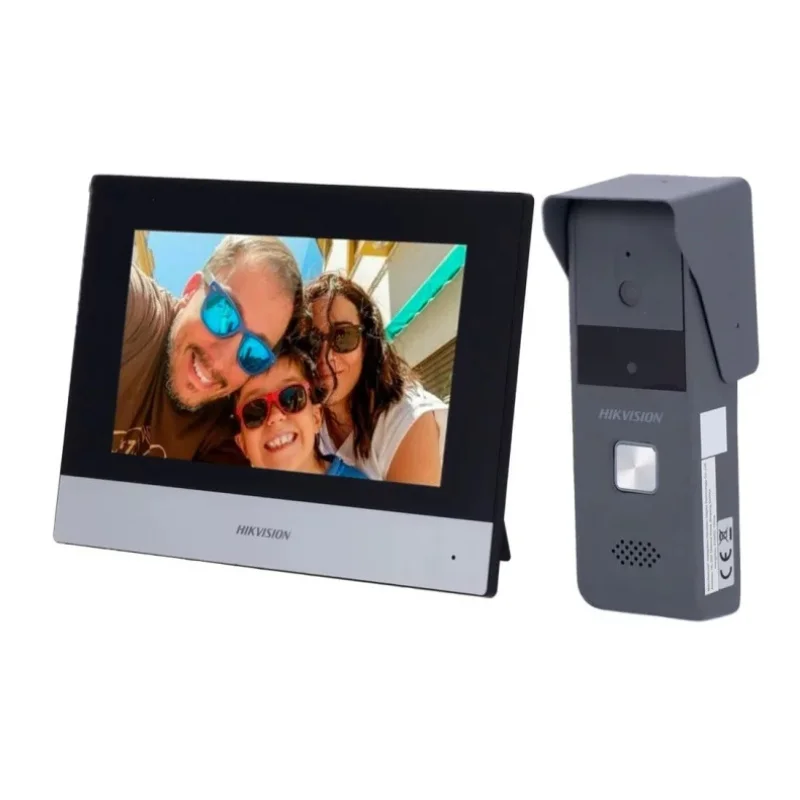

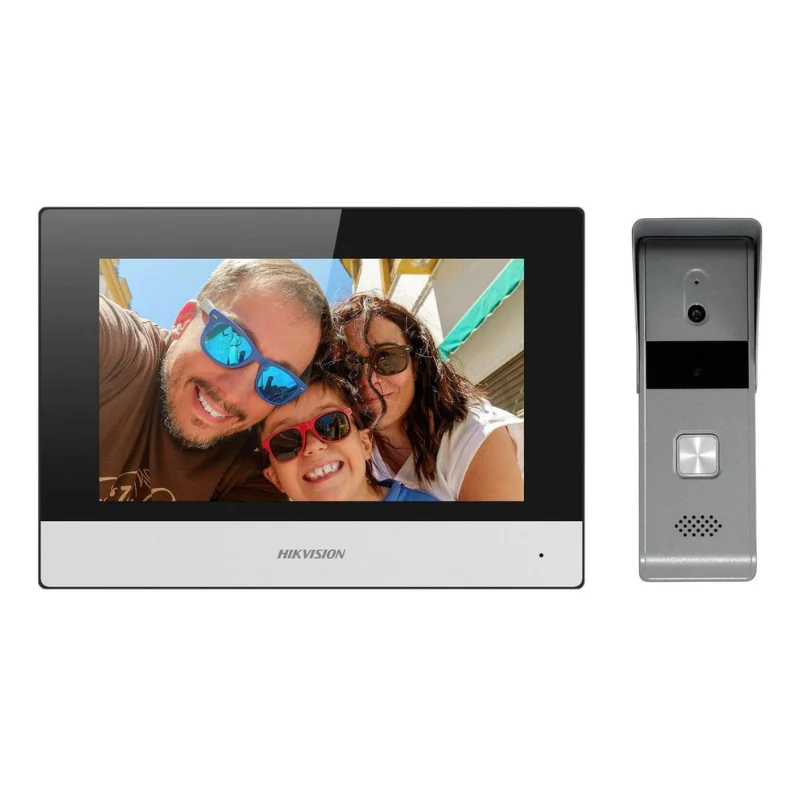

The Hikvision DS-KIS303-P Hybrid Video Intercom Kit is a practical communication and access-control solution designed for homes, villas, apartments, offices, and small commercial properties. The kit combines a 7-inch indoor monitor with a four-wire analog door station, providing reliable two-way audio and video communication with convenient door unlocking.
7-Inch Touchscreen Indoor Station:
The indoor station features a 7-inch colorful TFT display with a 1024 × 600 resolution for clear and comfortable viewing. Its responsive capacitive touchscreen provides user-friendly control, making it easy to answer calls, monitor the entrance, communicate with visitors, and manage connected devices.
Full HD Door Station:
The outdoor door station delivers 1920 × 1080 Full HD video resolution, helping users clearly identify visitors at the entrance. Its 66.2° horizontal and 37.2° vertical field of view provides suitable coverage of the area directly in front of the door.
Clear Two-Way Audio:
The HikvisionDS-KIS303-P supports convenient hands-free communication through a built-in omnidirectional microphone and loudspeaker. The indoor station also supports noise suppression and echo cancellation, helping provide clearer conversations between the visitor and the person inside the property.
Hik-Connect Mobile Management:
The hybrid intercom system supports convenient management through the Hik-Connect mobile client, allowing users to benefit from mobile access and remote intercom management. This makes the DS-KIS303-P a flexible choice for users looking for a modern video doorbell and intercom solution.
Analog and IP Expansion:
The Video Intercom provides flexible connectivity by combining four-wire analog intercom technology with IP networking. The indoor station can support up to 16 linked IP cameras, up to 5 additional indoor extensions, and multiple doorphones, making the system suitable for installations that may require future expansion.
Reliable Four-Wire Installation:
The analog door station uses a four-wire interface and does not require an exclusive power supply at the doorbell, helping simplify installation. The door station is powered by 12 VDC and has a maximum power consumption of 5 W, providing an efficient solution for residential and commercial applications.
Durable Outdoor Door Station:
Built with an anti-oxidant aluminum alloy housing, the door station is designed for outdoor use and features an IP65 protection rating. It operates in temperatures from -10°C to 55°C and supports 10% to 90% humidity, making it suitable for various environmental conditions.
Network Connectivity:
The indoor station includes a 10/100 Mbps RJ-45 Ethernet interface and supports Wi-Fi 802.11 b/g/n for flexible network connectivity. Hikvision intercom also supports TCP/IP, SIP, and RTSP protocols, providing compatibility with a range of network-based intercom and surveillance applications.
Security and Storage Features:
The indoor station provides 2 alarm inputs and 2 alarm outputs, along with an RS-485 interface for additional integration options. A TF card slot supports cards up to 128 GB, allowing users to add local storage for supported functions and system data.
Power and Installation:
The indoor monitor supports standard IEEE 802.3af PoE as well as 12 VDC power, offering flexible installation options. Its compact 200 × 140 × 23.6 mm design supports surface mounting and helps maintain a clean appearance on an interior wall.
Ideal Applications:
The Hikvision DS-KIS303-P is suitable for villas, homes, apartments, offices, residential buildings, small businesses, and entrance-control applications. Its combination of Full HD video, touchscreen operation, analog doorbell connectivity, IP expansion, Wi-Fi, PoE, and Hik-Connect support makes it a versatile hybrid video intercom solution.
