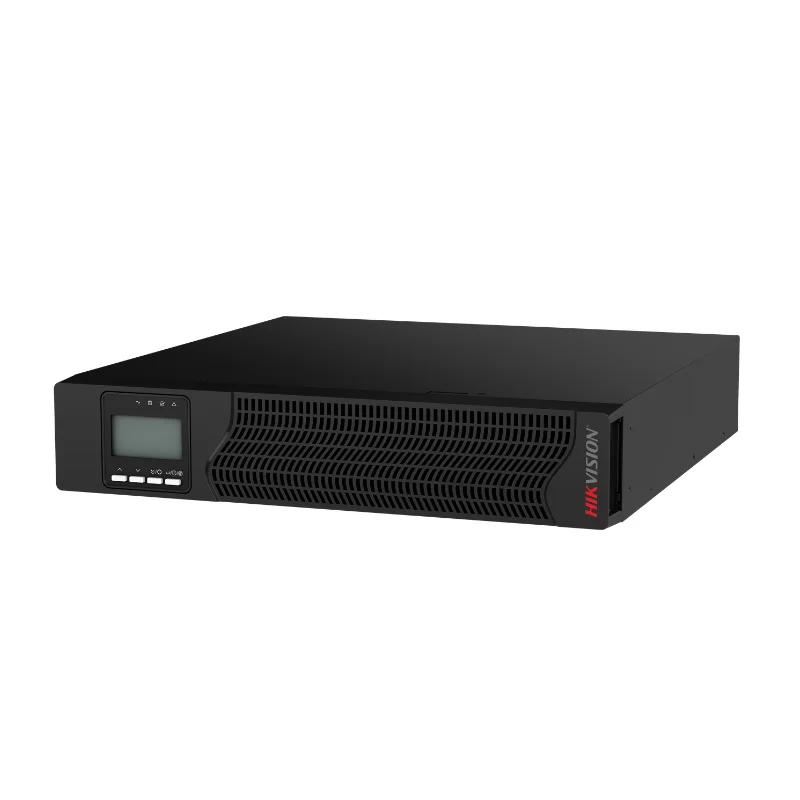

Hikvision DS-UPS01K24-R/TJS – Description
Online UPS 1000VA/900W
Reliable Online Power Protection:
The Hikvision DS-UPS01K24-R/TJS is a 1000VA/900W online UPS designed to provide reliable power protection for critical electronic equipment. With an integrated battery system and online UPS technology, it helps maintain stable power during outages, voltage fluctuations, and other electrical disturbances.
1000VA/900W Power Capacity:
With a capacity of 1000VA and 900W, this Hikvision UPS is suitable for protecting servers, networking equipment, surveillance systems, workstations, storage devices, and other essential IT equipment. Its 0.9 output power factor helps deliver practical power capacity for connected loads.
Pure Sine Wave Output:
The DS-UPS01K24-R/TJS provides a pure sinewave output, making it suitable for sensitive electronic equipment that requires clean and stable electrical power. The output voltage can operate at 208/220/230/240Vac, depending on the configuration.
Wide Input Voltage Range:
This online UPS supports a wide input voltage range of 110~300Vac, with a specified range of 176~264Vac when operating at 100% load. It also supports a 40~70Hz input frequency range with automatic 50/60Hz sensing, helping the UPS operate reliably under varying power conditions.
Zero Transfer Time:
One of the key advantages of this Hikvision online UPS is its 0ms transfer time from AC mode to battery mode. This helps connected equipment continue receiving power without an interruption when the main electrical supply fails. The inverter-to-bypass transfer time is typically 4ms.
Built-In VRLA Battery:
The UPS includes two 12V/9Ah Valve Regulated Lead Acid (VRLA) batteries, providing a 24V DC battery system. The standard battery can recharge to 90% capacity in approximately four hours. Runtime can also be expanded using the compatible external battery pack.
LCD Display and Smart Monitoring:
An integrated LCD display provides useful operating information, including input and output voltage, input and output frequency, load percentage, battery voltage, internal temperature, and estimated remaining battery backup time. This makes monitoring the UPS status convenient.
Comprehensive Protection:
The DS-UPS01K24-R/TJS is designed with protection functions for common power-related risks, including overload, short circuit, over-temperature, battery under-voltage, and battery over-charging. These features help protect both the UPS and connected equipment.
Efficient Power Management:
The UPS delivers an AC-mode efficiency of approximately 89% and battery-mode efficiency of approximately 85% according to Hikvision’s specification sheet. Its power factor of at least 0.99 on the input also supports efficient power utilization.
Flexible Installation:
The Hikvision DS-UPS01K24-R/TJS is designed for professional IT and infrastructure environments where dependable power protection is essential. Its output socket configuration can be supplied in IEC, EU, UK, or US panel options, providing flexibility for different installations.
Ideal for Critical Equipment:
This 1000VA online UPS is a practical choice for servers, network switches, CCTV systems, storage devices, communication equipment, and professional workstations. Its pure sinewave output, built-in batteries, LCD monitoring, and zero-transfer-time battery operation make it suitable for applications where power continuity matters.
